background image

4

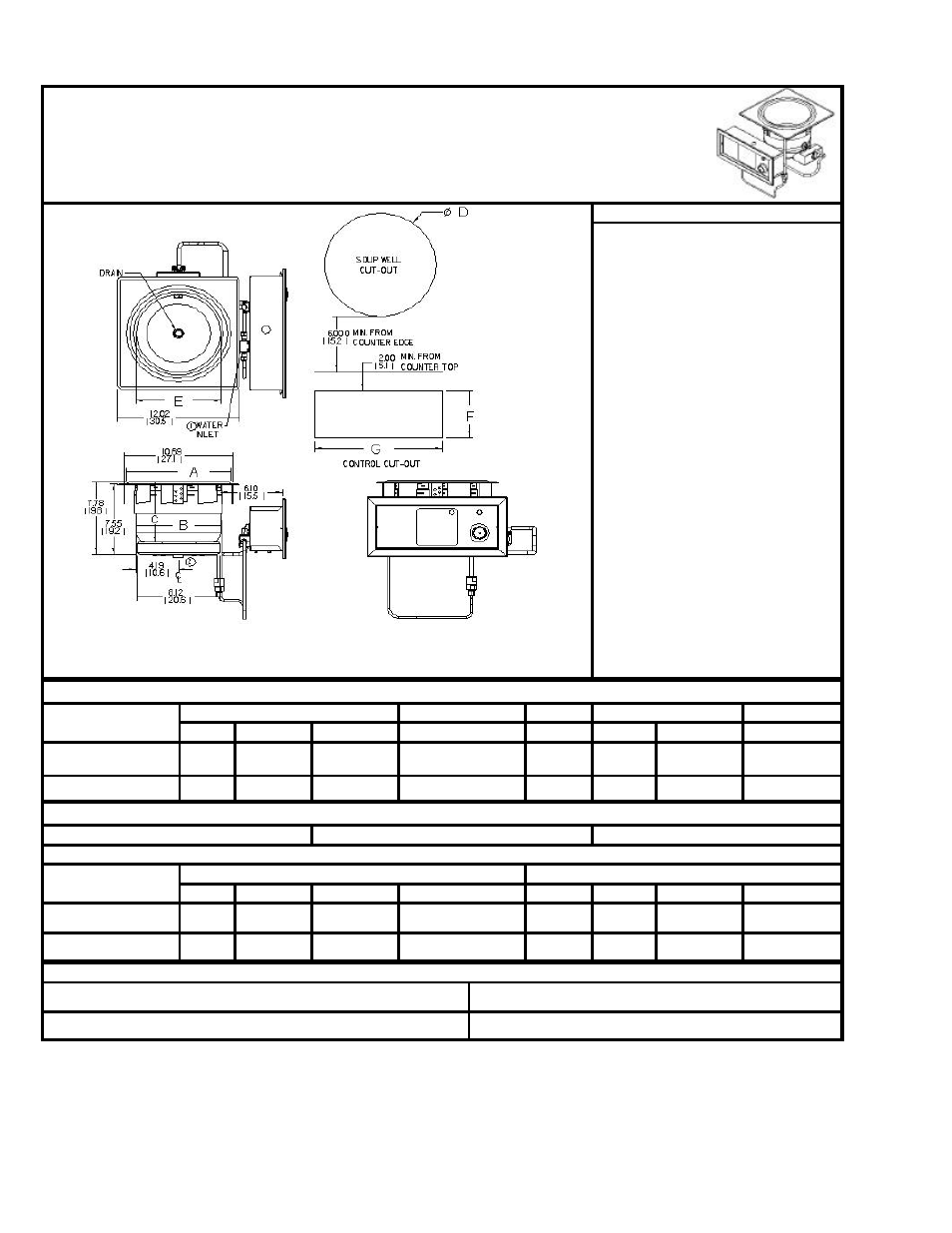

CUT OUT

A

B

C

D

F

SM50EZ WELL

10.34"

(26.3)

8.38"

(21.3)

6.44"

(16.4)

10.875"

(27.6)

5.0"

(12.7)

Volts

Watts

Amps 1-Phase

SM50EZ WELL

208/240

500/660

2.4 / 2.75

APW EZFILL HOT FOOD WELLS

PART NO'S BEGINNING WITH WHFW

INSTALLATION

1. Follow general installation instructions on
page 3.
2. Make applicable Cut-Out per above table.
Note: Unit is designed for installation in
stainless steel tops. Optional wood mounting
kit available.
3. Apply putty tape to the underside
perimeter of the well rim outer edge.
4. Apply a 1/4" (.6) bead of silicone sealant
adjacent to the putty tape on the well flange.
5. Drop well into opening from the top and
push down until entire parameter of rim is
flush with the counter surface.
6. From below the counter surface insert an
8" to 10" (20 to 25 cm) flat tip screwdriver into
the locking ring tab slots and twist in a
clockwise motion to lock well in place.
7. Trim excess putty and sealant from around
well rim.
8. Mount control to front panel using
hardware. Maintain 4" (10.2) clearance
between well and front panel.
9. Check nameplate for proper voltage.
Connect power.
10. Connect overflow tube onhot food well to
suitable tubing to handle 212 F water. Run to
open drain.
Note: Electrically connect units to comply
with local and NEC codes.

2. Main drain is 3/4 female NPT.

1. Water fill is 3/8 (1.0) tubing connection on left
back of left controls

1. Follow General Cleaning Instructions on page 3.

OPERATION

1. Follow General Operating Instructions on page 3.

NOTE: CUT-OUT SIZES ARE DIFFERENT FROM STANDARD APW HFW'S

n/a

CLEANING

MODEL

Max Amps 3-Phase

Description: Lever Operated Drain Valve

Electrical Ratings 500 @ 208V / 660 @ 240V

Stock No.: 56360

Drain Manifold: Fabricated to Unit, Required

ELECTRICAL SPECIFICATIONS

OPTIONS

13 Lbs. (5.9 Kg)

8.32"

(21.1)

12.5"

(31.8)

GENERAL SPECIFICATIONS (APW EZFILL HOT FOOD WELLS)

MODEL

CONTROL CUT OUT

SHIP WT.

OUTSIDE DIMENSIONS

INSIDE DIMENSIONS

E

G
