Refer to Table 3 “Part numbers for FRUs (CRUs)” on page 24 to look up the Lenovo part numbers of
replacement WLAN & Bluetooth combo modules.

Remove the LCD module

Make sure the following FRUs (CRUs) have been removed:

“Remove the keyboard” on page 29

“Remove the upper case” on page 31

“Remove the WLAN & Bluetooth combo module” on page 33

Step 1.

Unplug the LCD cable

1

and the camera cable

2

.

b

a

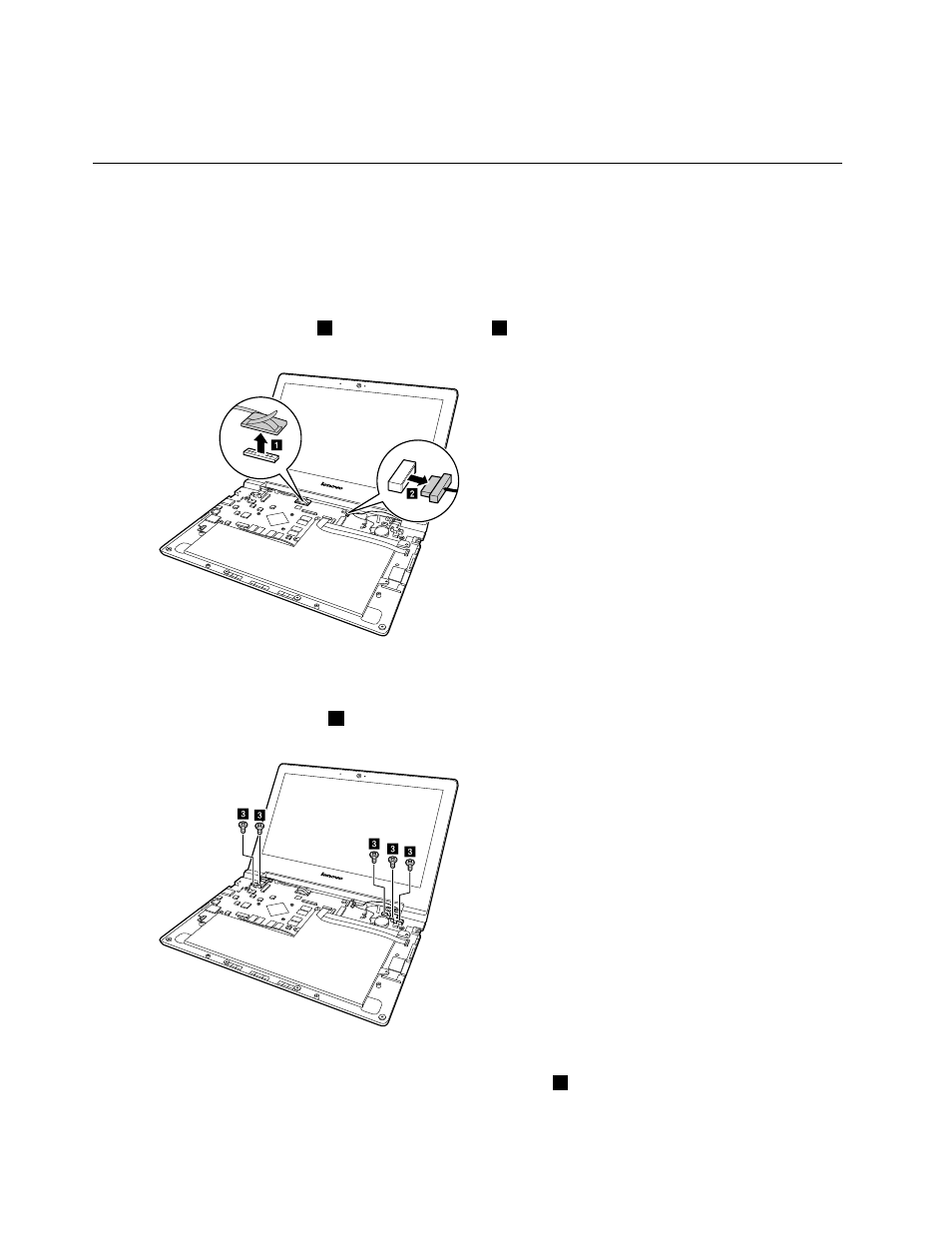

Figure 13. Unplug the LCD and camera cables

Step 2.

Release the antenna, LCD, and camera cables out of cable guides.

Step 3.

Remove the five screws

3

that fix the LCD module to the base cover.

c

c

c

c

c

Figure 14. Remove 5 screws

Step 4.

Lift up the LCD module to detach it from the base cover

4

.

34
