80
Y40-70/Y40-80/Y50-70/Y50-80/Y50-70 Touch/Y50-80 Touch
Hardware Maintenance Manual
1160 Antenna assembly
For access, remove these FRUs in order:
• “1010 Base cover” on page 33
• “1020 Battery pack” on page 36
• “1030 Hard disk drive” on page 39
• “1040 PCI Express Mini Card for wireless LAN” on page 43
• “1060 LED board” on page 48
• “1070 Subwoofer (Y50-70/Y50-80/Y50-70 Touch/Y50-80 Touch)” on page 49
• “1080 IO board” on page 50
• “1090 Fan assembly and Heat Sink assembly” on page 53
• “1100 System board” on page 58
• “1110 Speakers” on page 63
• “1120 LCD unit and power board” on page 65
• “1130 Non-touch LCD unit (Y40-70/Y40-80/Y50-70/Y50-80)” on page 70
• “1140 Touch LCD unit (Y50-70 Touch/Y50-80 Touch)” on page 74

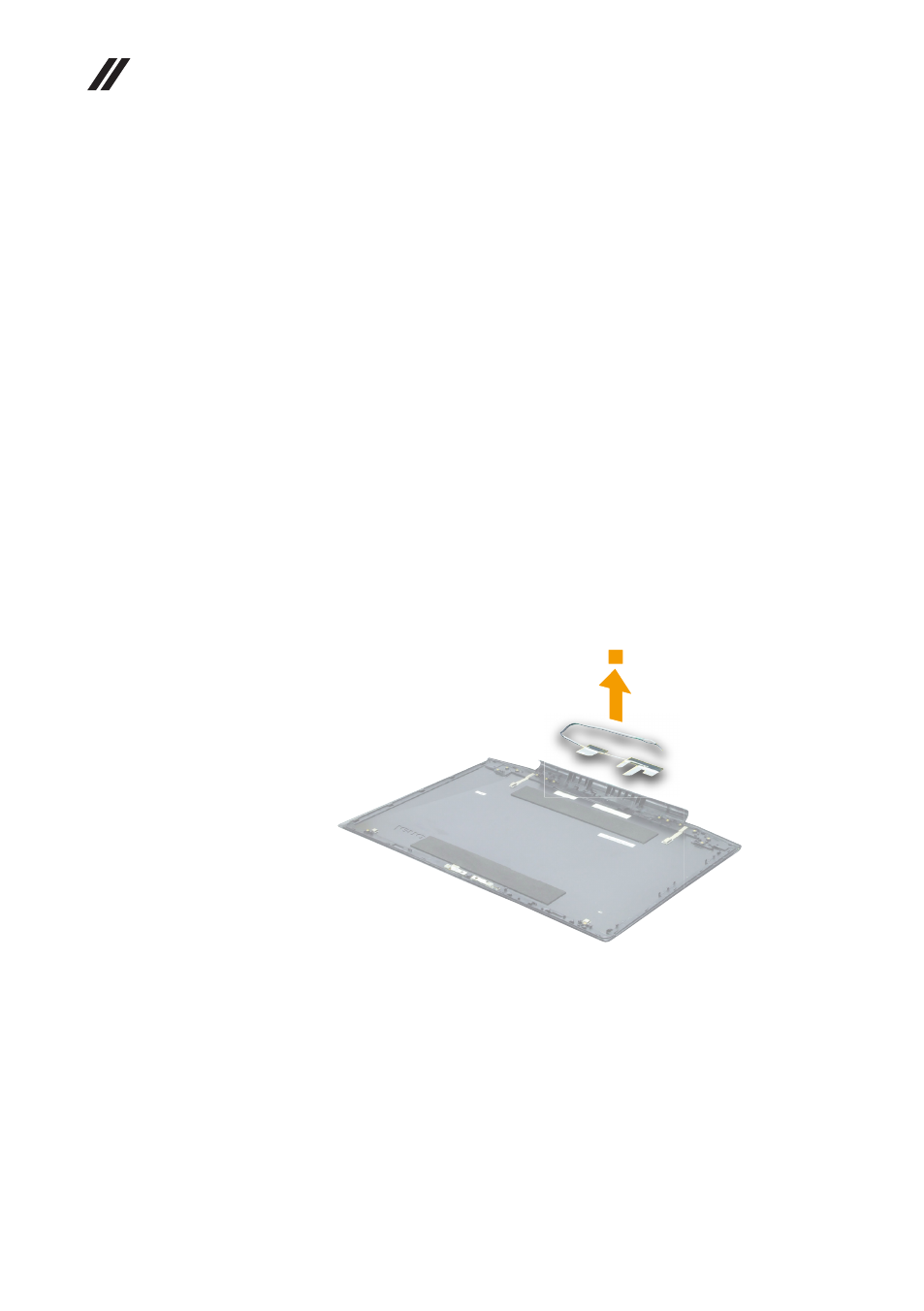

Figure 16. Removal steps of antenna assembly
Remove the antenna assembly in the direction shown by arrow 1.
