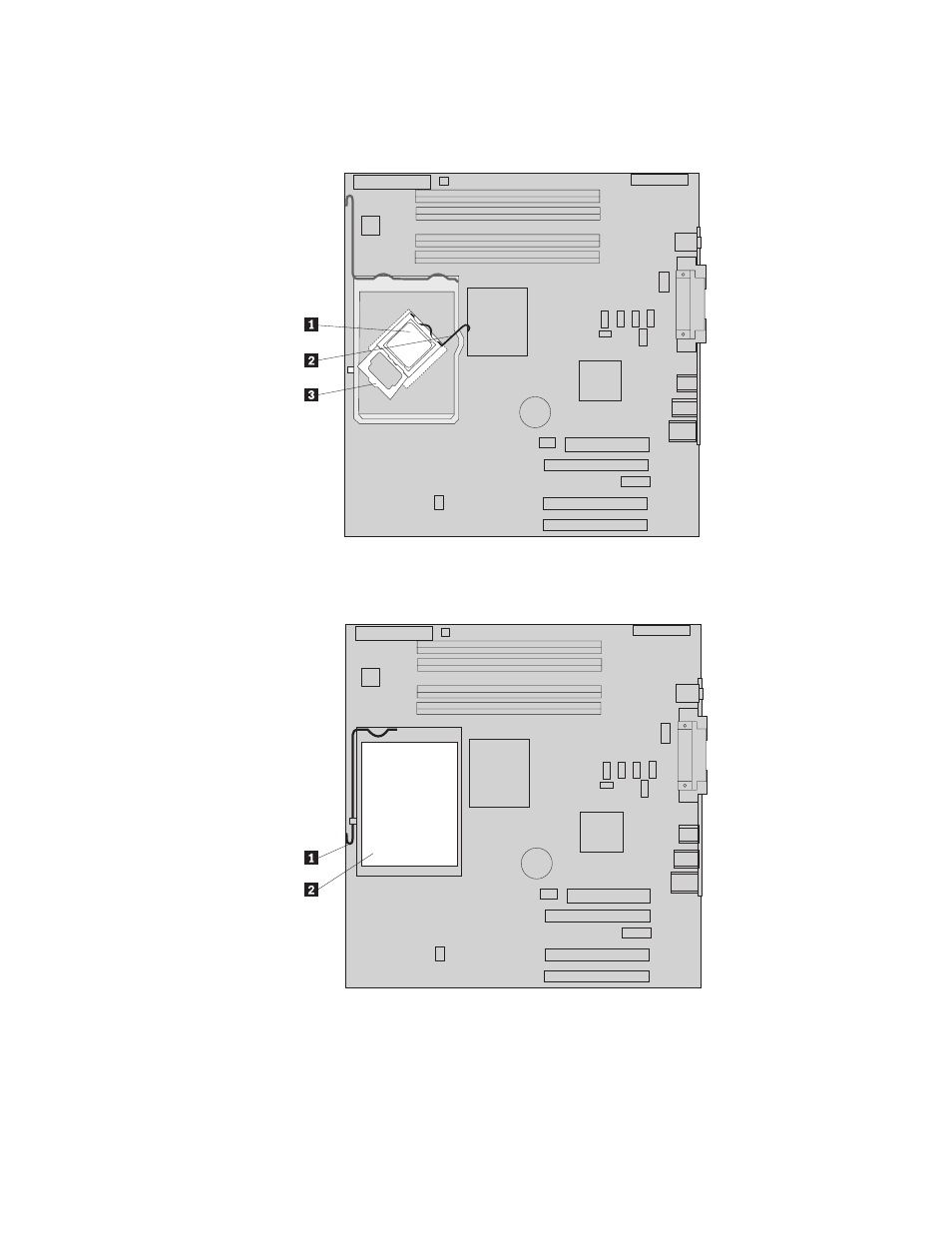

19.

Pivot

the

microprocessor

retainer

3

to

the

closed

position

and

rotate

the

locking

lever

2

to

secure

the

microprocessor

1 .

Make

sure

the

locking

lever

is

engaged

with

the

retainer

tab

when

securing

the

microprocessor.

20.

Align

the

beveled

corners

of

the

heat

sink

and

the

mounting

bracket.

Then

position

the

heat

sink

2

on

the

heat

sink

mounting

bracket.

Lower

the

lever

1

to

secure

the

heat

sink.

Chapter

2.

Replacing

hardware

15
