Identifying
parts
on
the
system
board

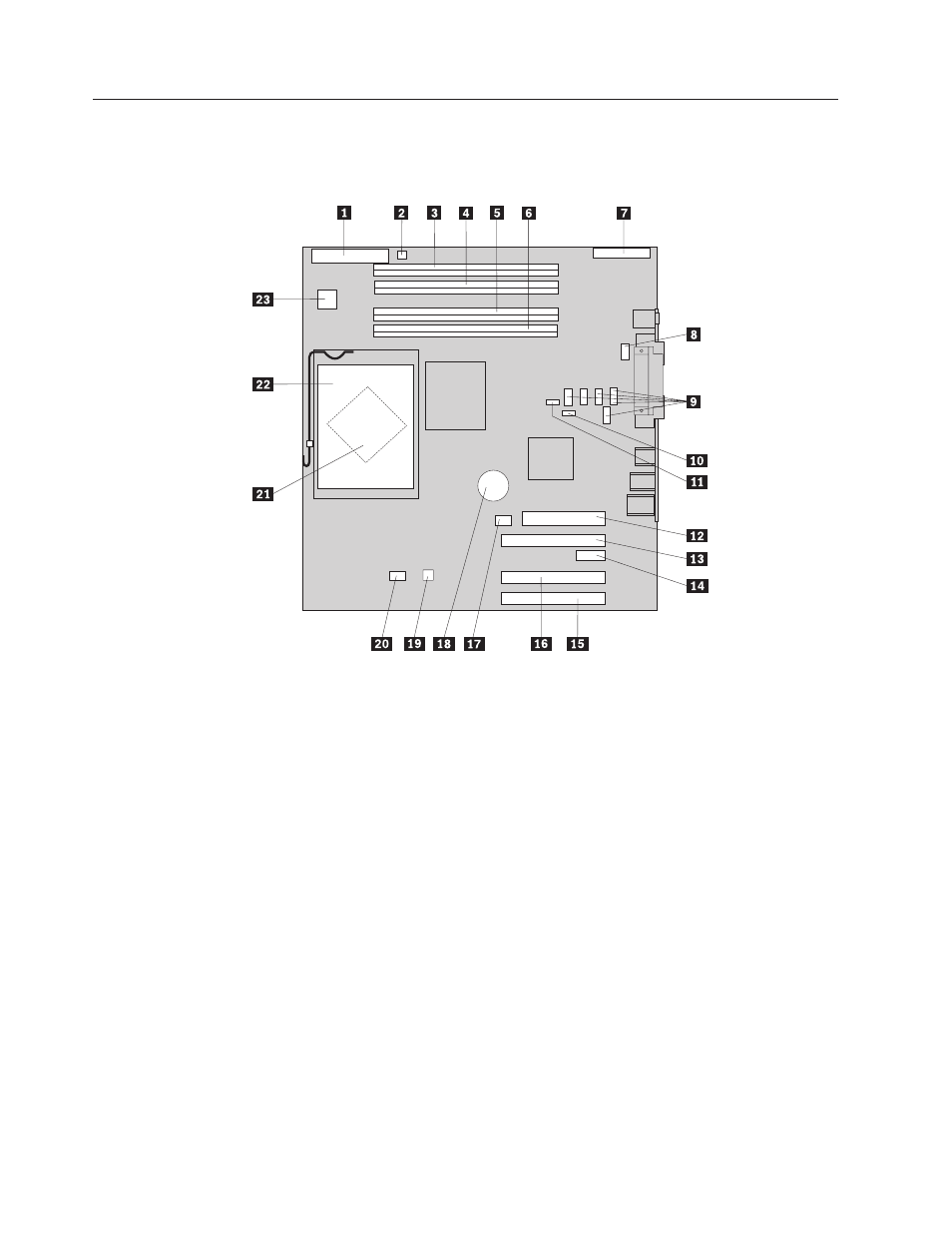

The
system
board
(sometimes
called
the
planar
or
motherboard)
is
the
main
circuit
board
in
your
computer.
It
provides
basic
computer
functions
and
supports
a
variety
of
devices.
1
Diskette
drive
connector
13
PCI
Express
(x16)
graphics
adapter
connector
(some
models)
2
Speaker
connector
14
PCI
Express
(x1)
adapter
connector
3
Memory
connector
4
15
PCI
adapter
connector
1
4
Memory
connector
3
16
PCI
adapter
connector
2
5
Memory
connector
2
17
System
fan
connector
(not
used)
6
Memory
connector
1
18
Battery
7
Front
panel
I/O
connector
19
Temperature
sensor
connector
8
Serial
connector
(COM2)
20
Microprocessor
fan
connector
9
Serial
ATA
IDE
connectors
(5)
21
Microprocessor
10
Clear
CMOS/Recovery
jumper
22
Microprocessor
heat
sink
11
Cover
presence
switch
connector
23
12v
power
connector
12
Power
supply
connector
4
Hardware
Replacement
Guide
