1050 Optical drive
For access, remove this FRU:
• “1010 Battery pack” on page 35

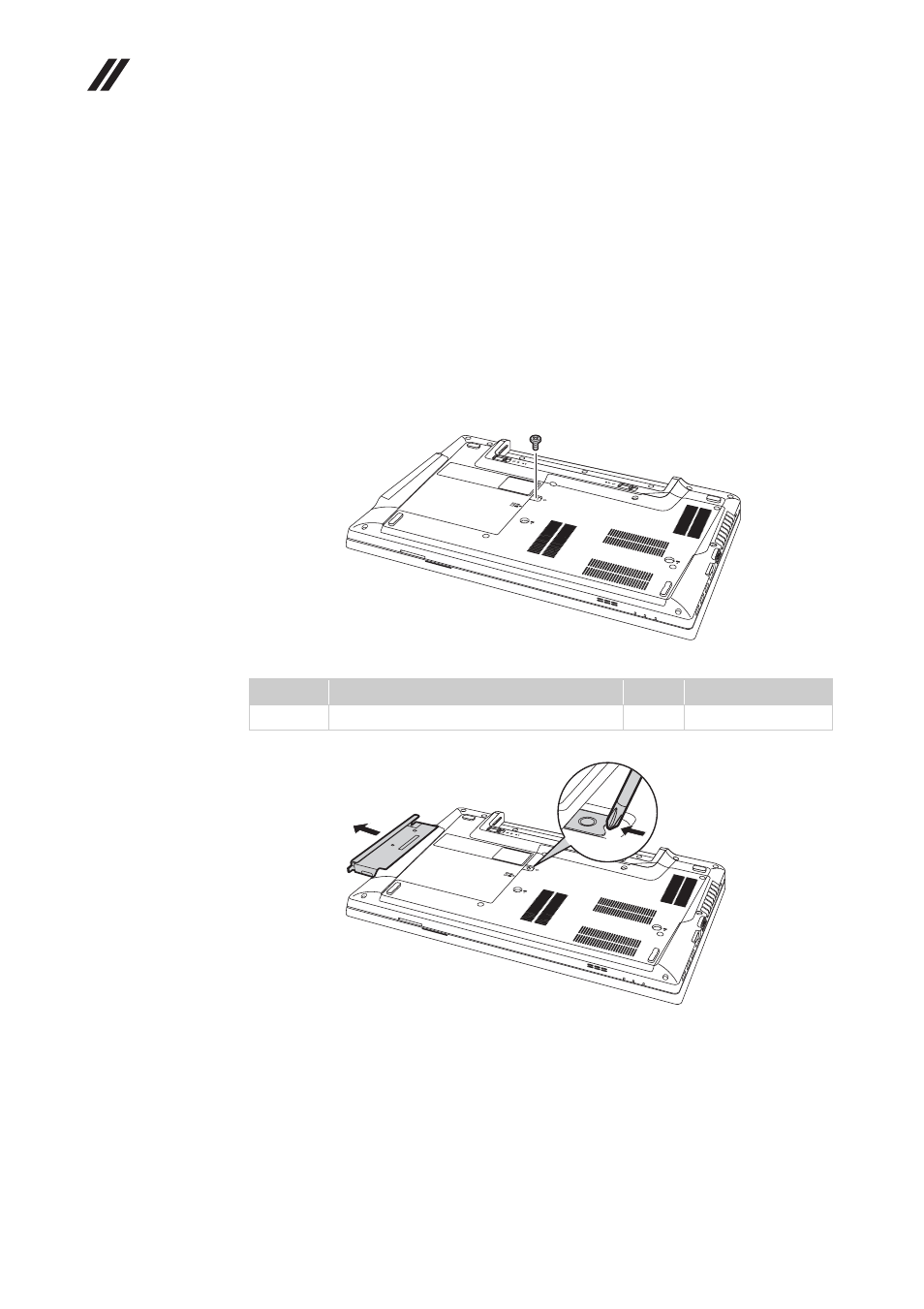

Figure 5. Removal steps of optical drive
Remove the screw , insert a screwdriver into the screw hole and push the
optical drive in the direction shown by arrow . Pull the optical drive out in the
direction shown by arrow .
Step Screw (quantity) Color Torque
M2 × 3 mm, flat-head, nylokcoated (1) Black 1.85+/-0.15 kgfcm
a
b
c
a
a
b
c
