System-board

external

connectors

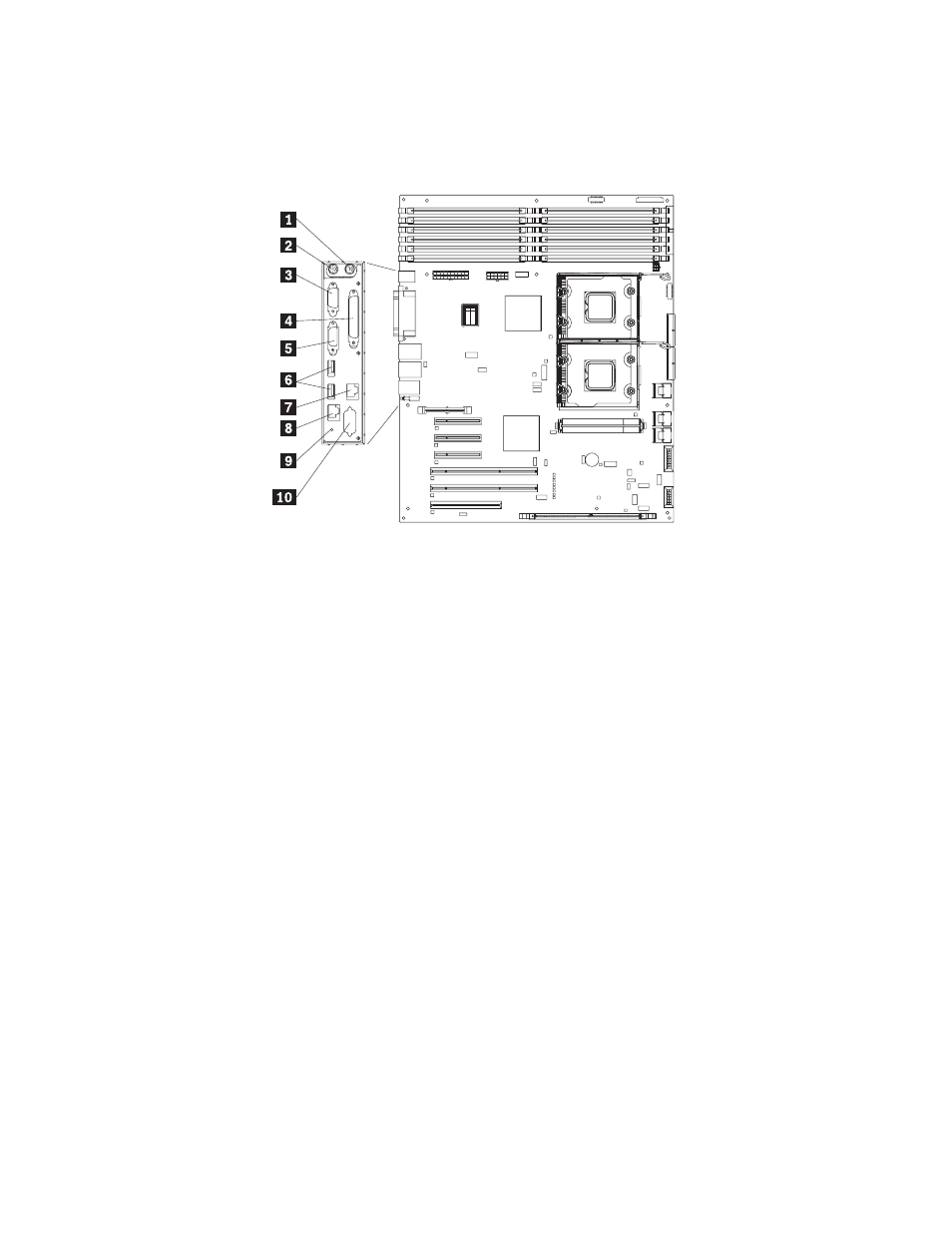

The

following

illustration

shows

the

external

input/output

(I/O)

connectors

on

the

system

board.

1

2

3

4

5

6

7

8

9

10

11

12

DIMM LEDs

1

Mouse

connector

6

USB

connectors

(2)

2

Keyboard

connector

7

(RJ45)

Ethernet

10/100/1000

connector

3

Serial

1

(COM

1)

connector

8

(RJ45)

Ethernet

10/100

(for

Remote

Supervisor

Adapter

II

SlimLine)

connector

4

Parallel

connector

9

NMI

button

5

Video

connector

10

Serial

2

(COM

2)

connector

Chapter

2.

Installing

optional

devices

17
