1060 Main antenna
For access, remove this FRU:
• “1010 Rear cover” on page 28
1. Remove two screws for fixing the main antenna to the main body of the
tablet.

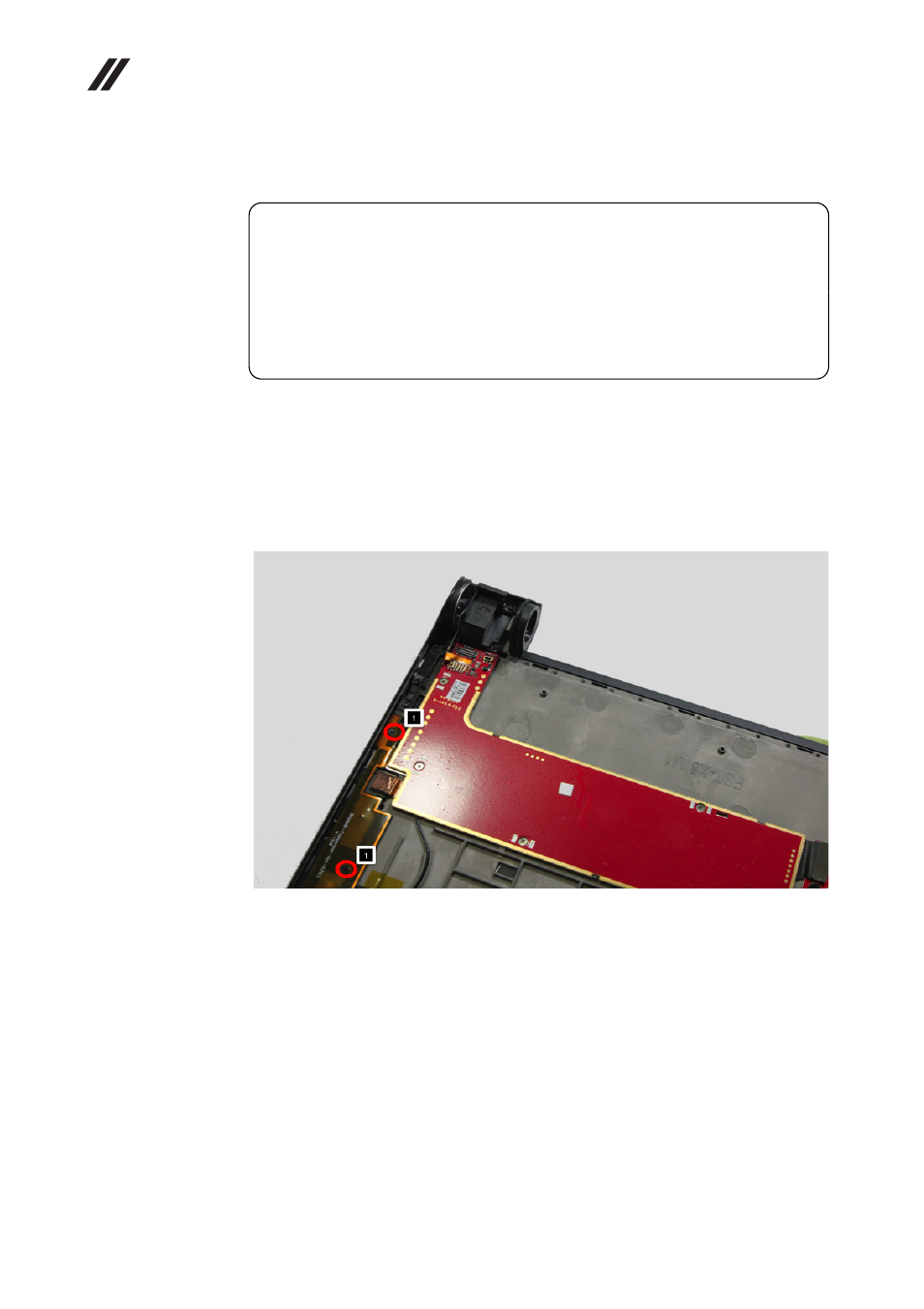

Figure 6-1 Screws on the main antenna
2. Disconnect the RF cable (for B6000-H and B8000-H only) and antenna FPC
from their connectors on the main PCBA after removing the main PCBA from
the main body.
Notes:
The main antenna is connected to the main PCBA via a FPC, but depending
on the product model, the main antenna may not be additionally connected
to the main PCBA via any RF cable. Please check this conditon of the main
antenna for different product models as follows:
– B6000-H and B8000-H: connected via a RF cable
– B6000-F and B8000-F: without RF cable
