1050 Left speaker box
For access, remove the following FRUs:
• “1010 Rear cover” on page 28
• “1020 Right speaker box” on page 32
• “1030 Hinge frame and pivot” on page 36
• “1040 Main camera” on page 39
1. Remove two screws for fixing the left speaker box to the main body.

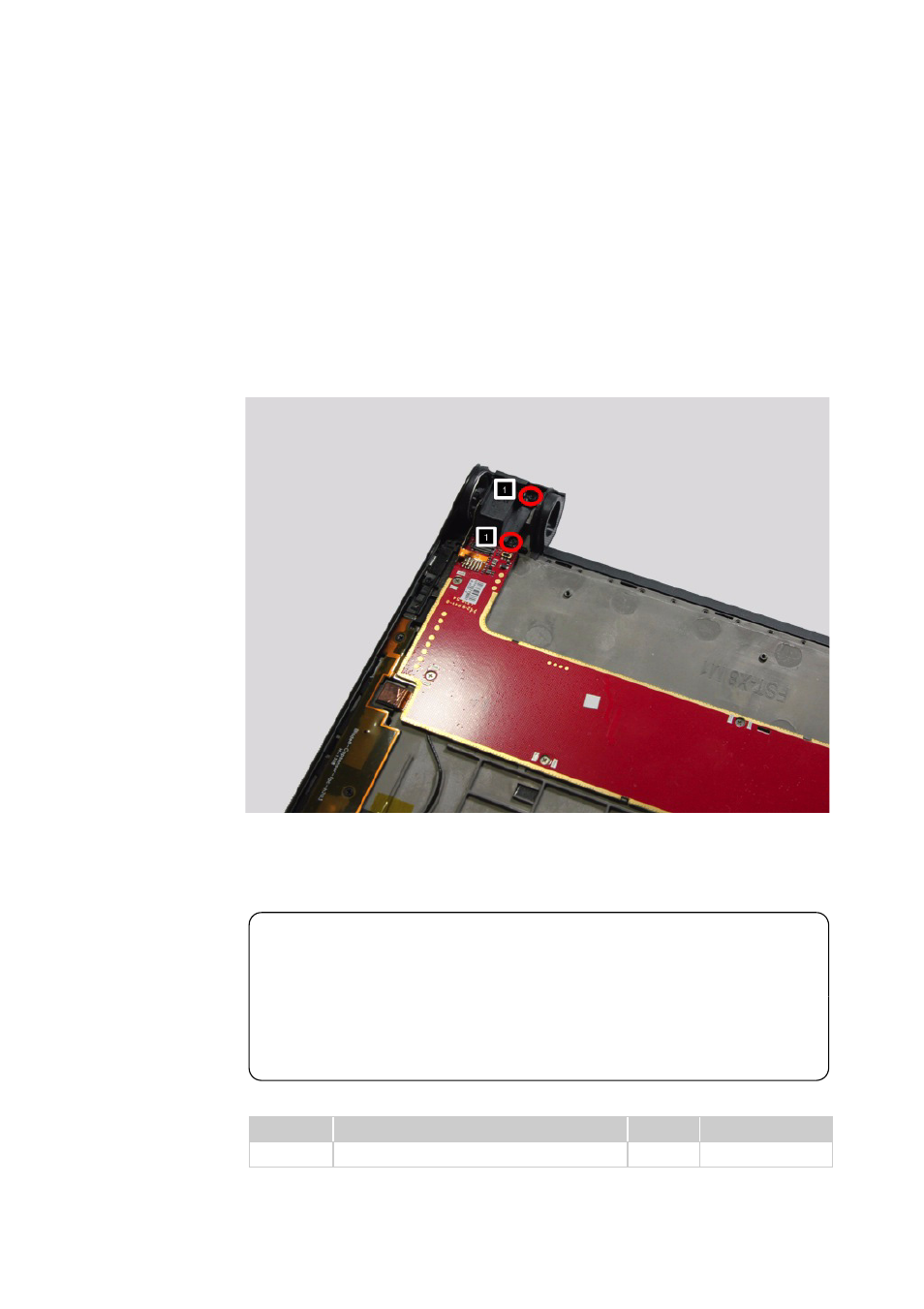

Figure 5-1. Screws fixing the left speaker box
2. Detach the left speaker box from its installation position.
3. Remove the left speaker box after the main PCBA is removed from the main
body.
Step Screw (quantity) Color Torque
Phillips flat-head, M1.4 × 3.8 (2) Black N/A
a
Notes:
• The left speaker box, as well as the power switch, are connected to the
main PCBA via FPCs and cannot be removed at this stage of the service
procedure.
• Disconnect the left speaker box after removing the main PCBA from the
front module of the tablet. Please refer to the operation task “1080 Main
PCBA” on page 46.
