Lenovo B6000/B8000 Hardware Maintenance Manual
36
1030 Hinge frame and pivot
For access, remove the following FRUs:
• “1010 Rear cover” on page 28
• “1020 Right speaker box” on page 32

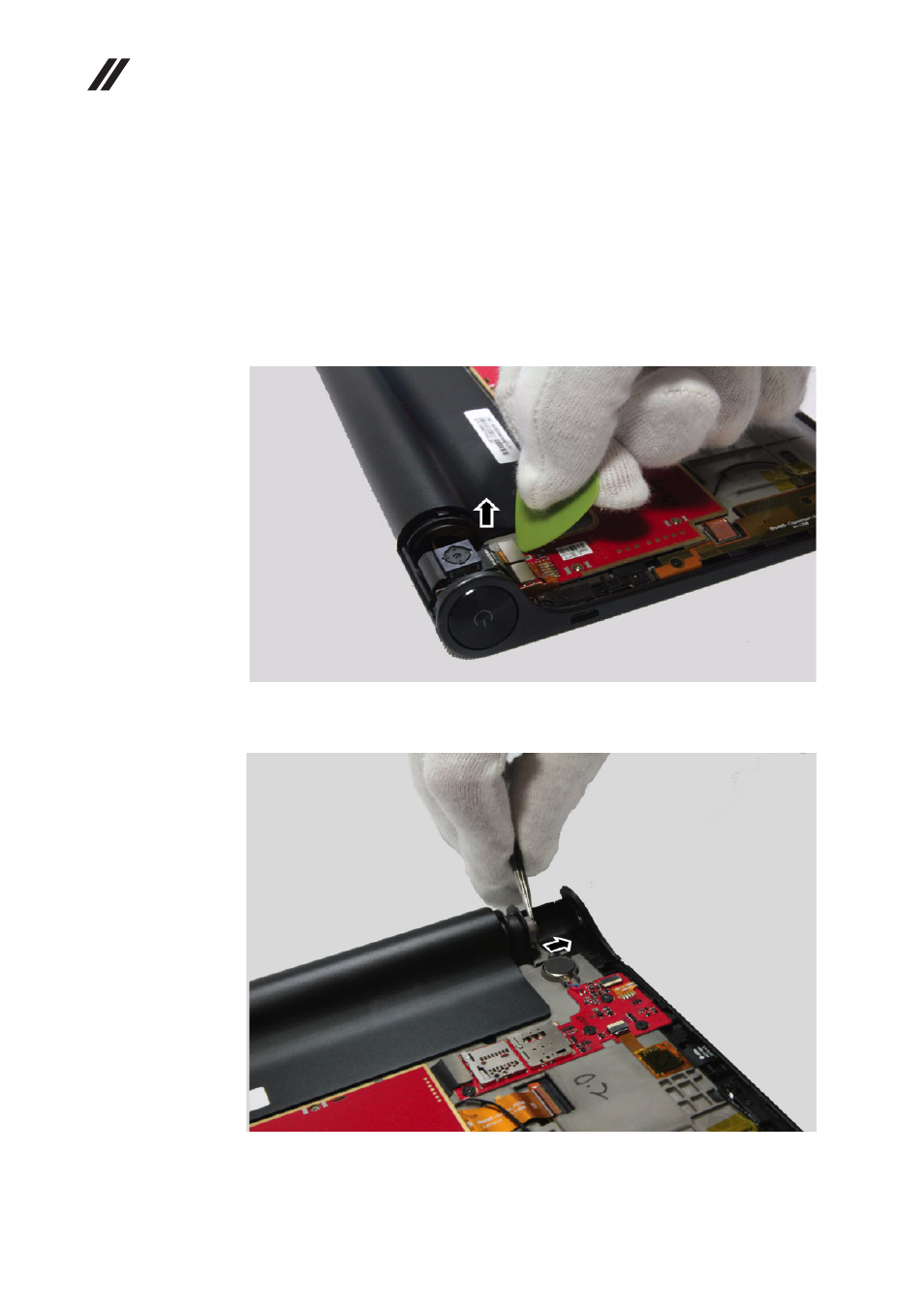

1. Disconnect the main FPC from its connector on the main PCBA using a guitar
pick.
Figure 3-1 Disconnecting the main FPC
2. Slowly pull out the hinge pivot using a pair of tweezers until about half the
pivot length moves out.
Figure 3-2 Pulling out the hinge pivot
