Lenovo IdeaPad U330p/U330 Touch/U430p/U430 Touch
55
1090 Base cover, speakers, USB board, power assembly and
power board
For access, remove these FRUs in order:
• “1010 Battery pack” on page 34
• “1030 Hard disk drive” on page 39
• “1040 DIMM” on page 42
• “1050 PCI Express Mini Card for wireless LAN/WAN” on page 44
• “1060 Fan assembly and Heat Sink assembly” on page 46
• “1070 System board” on page 49
• “1080 LCD unit” on page 53

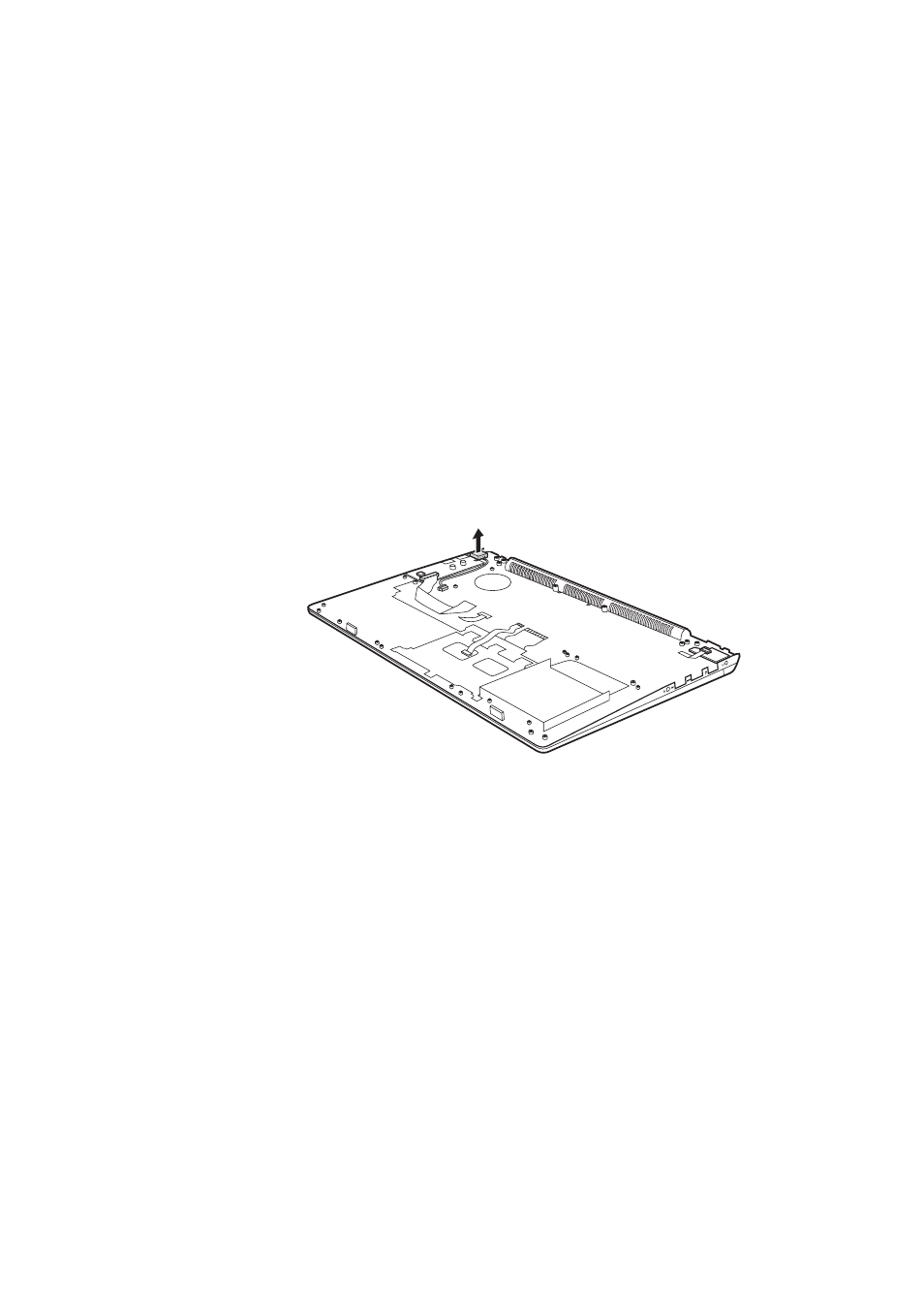

Figure 9. Base cover, speakers, USB board, power assembly and power board
Unplug the connector and remove the power assembly in the direction shown by
arrow .
When installing:
Make sure that the power connector is attached firmly.
a
a
