Lenovo IdeaPad U330p/U330 Touch/U430p/U430 Touch Hardware
Maintenance Manual
40

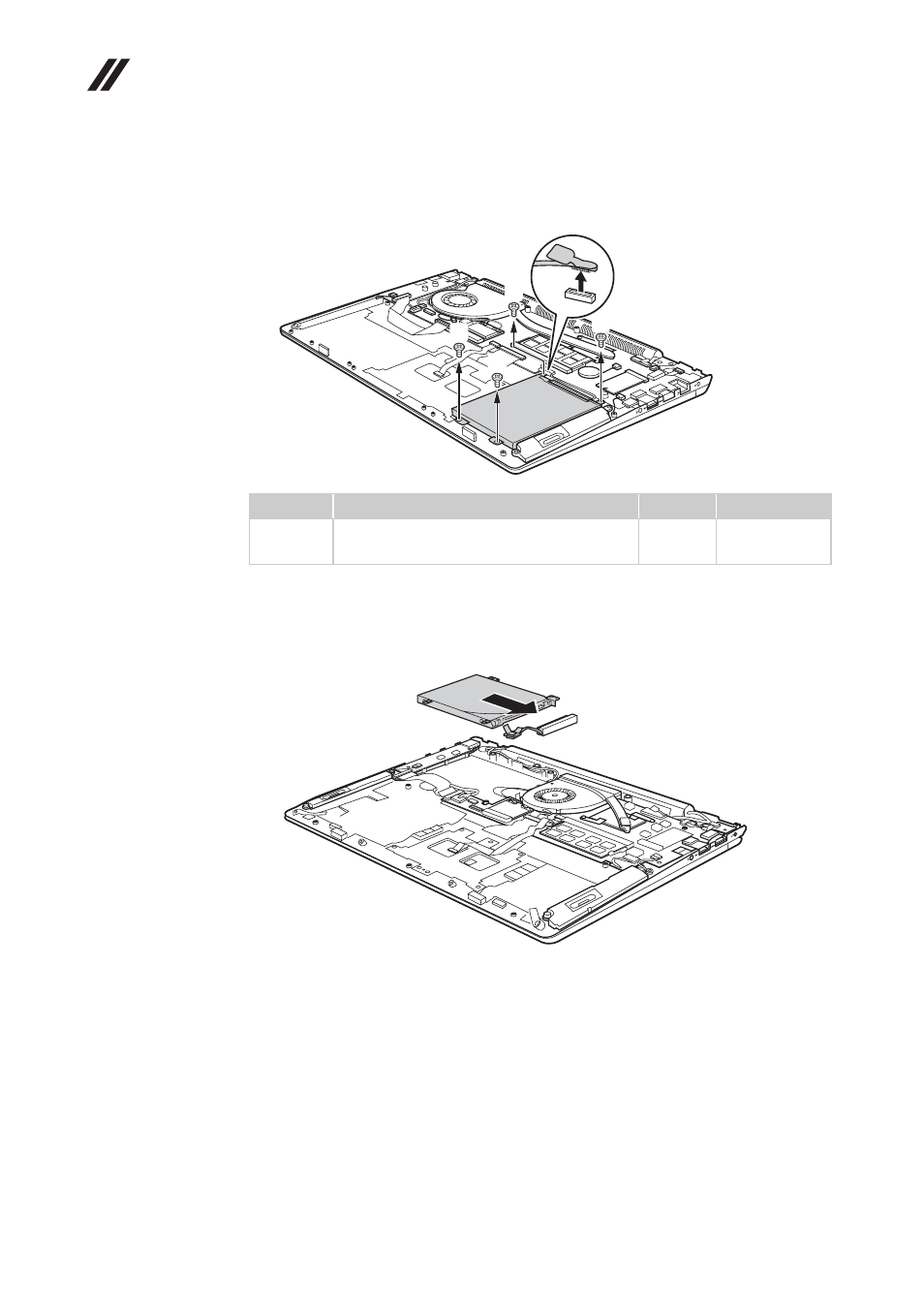

Figure 3. Removal steps of hard disk drive (continued)
U430p/U430 Touch:
Remove the frame fixing screws
. Pull the tab to
disconnect the connector
.
U330p/U330 Touch:
Hold the SATA receptacle connector with one hand and
pull the hard disk drive (secured in the metal frame) in the direction shown
below to detach the connector.
Step
Screw (quantity)
Color
Torque
M2.5 × 3.0 mm, flat-head, nylok-coated
(4)
Black
2.5±0.2 kgfcm
a
b
b
a
a
a
a
a
