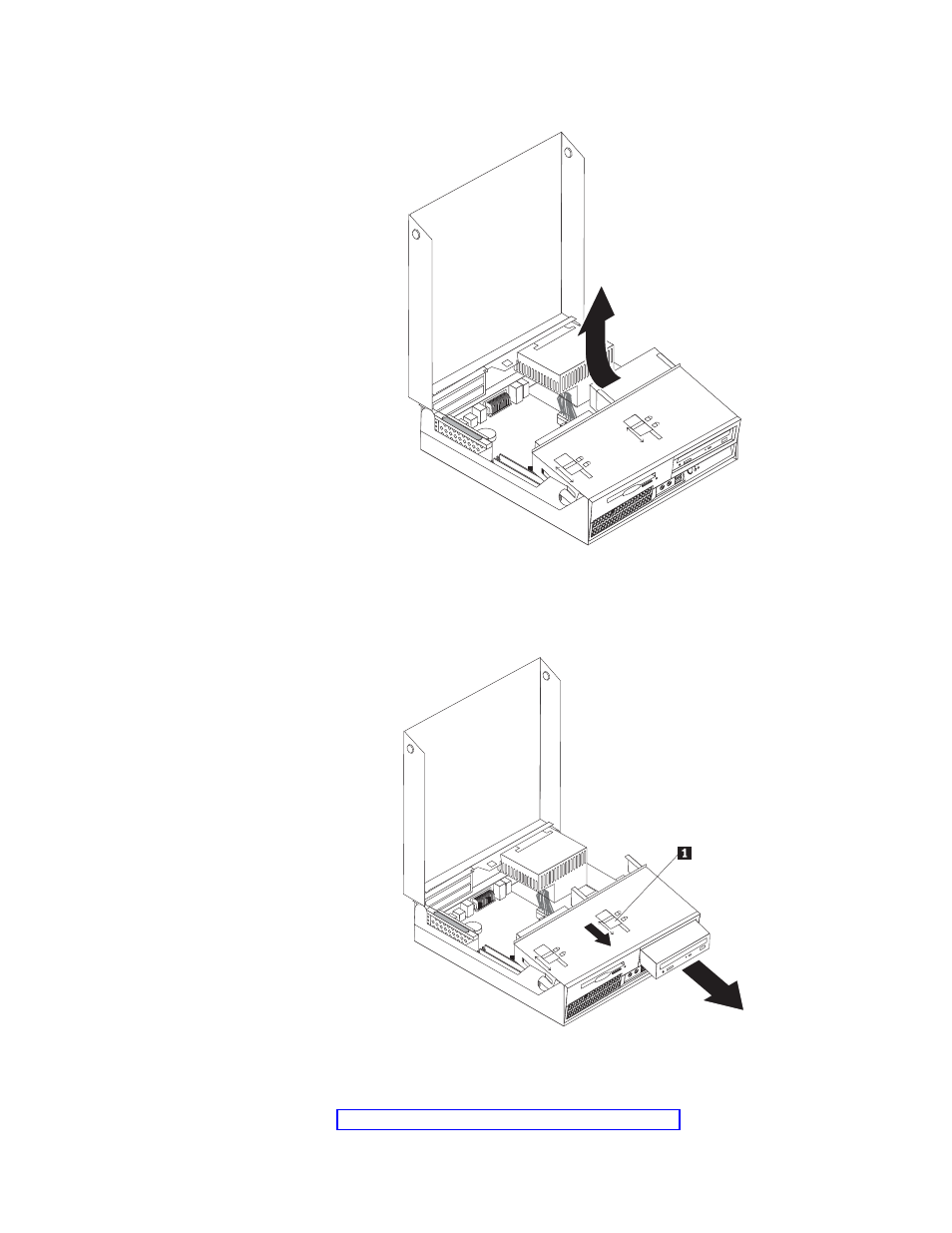

2.

Pivot

the

drive

bay

assembly

upward

to

gain

access

to

the

optical

drive.

3.

Disconnect

the

signal

and

power

cables

from

the

rear

of

the

optical

drive.

4.

Slide

the

optical

drive

lock

1

to

the

unlocked

position.

5.

Open

the

door

at

the

front

of

the

optical

drive

and

slide

it

out

the

front

of

the

computer.

6.

Install

the

new

optical

drive

into

the

bay.

7.

Slide

the

optical

drive

lock

to

the

locked

position.

8.

Connect

the

signal

and

power

cables

to

the

rear

of

the

optical

drive.

9.

Go

to

“Completing

the

parts

replacement”

on

page

30.

Chapter

2.

Replacing

hardware

19
