Replacing

the

power

supply

assembly

Attention

Do

not

open

your

computer

or

attempt

any

repair

before

reading

the

“Important

safety

information”

in

the

Safety

and

Warranty

Guide

that

was

included

with

your

computer.

To

obtain

a

copy

of

the

Safety

and

Warranty

Guide,

go

to

the

Support

Web

site

at

http://www.lenovo.com/support.

To

replace

the

power

supply

assembly,

do

the

following:

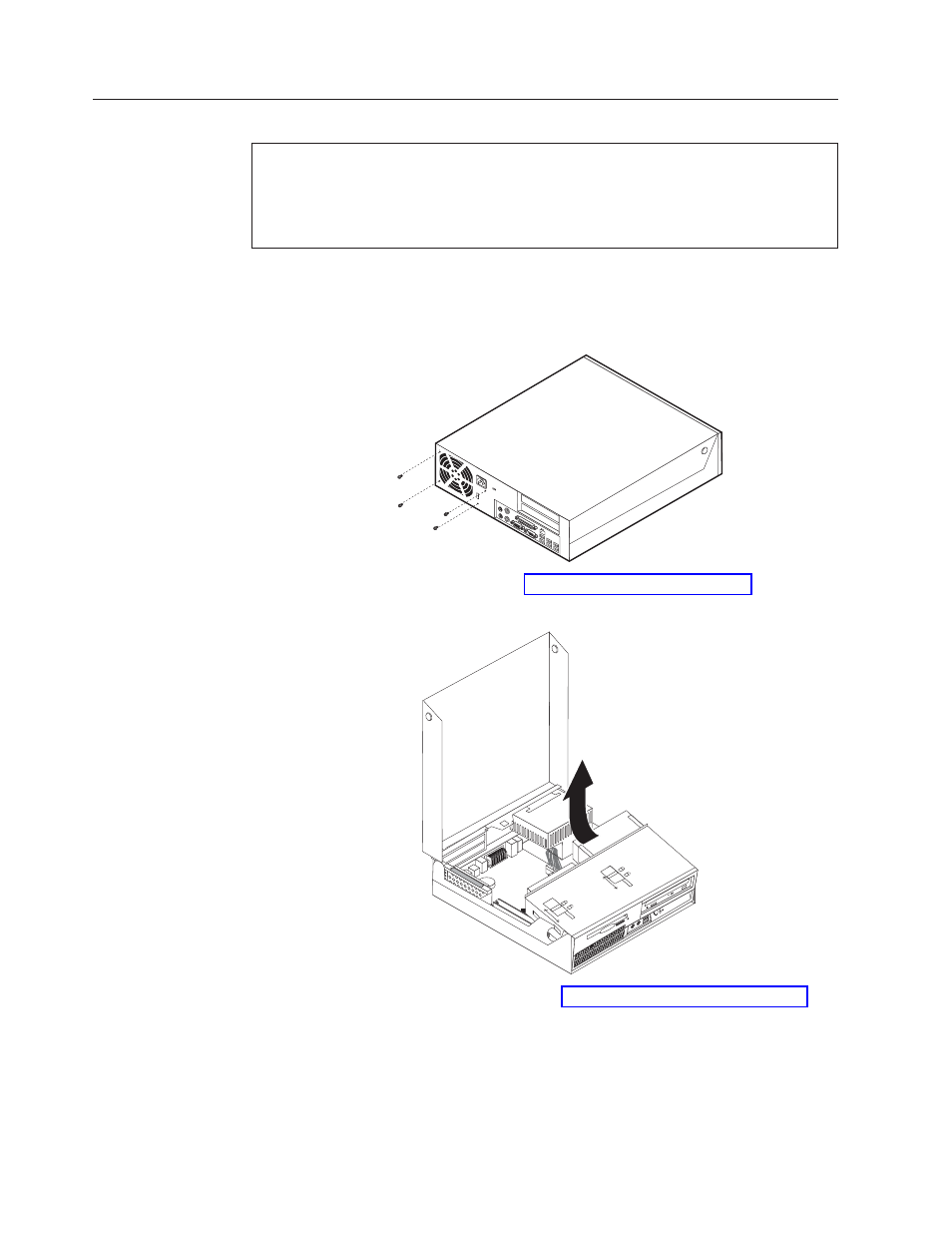

1.

Remove

the

four

screws

at

the

rear

of

the

chassis

that

secure

the

power

supply.

2.

Open

the

computer

cover.

See

the

“Opening

the

cover”

on

page

5.

3.

Pivot

the

drive

bay

assembly

upward

to

gain

access

to

the

system

board.

4.

Locate

the

power

supply

assembly.

See

“Locating

components”

on

page

1.

6

Hardware

Replacement

Guide
