7.

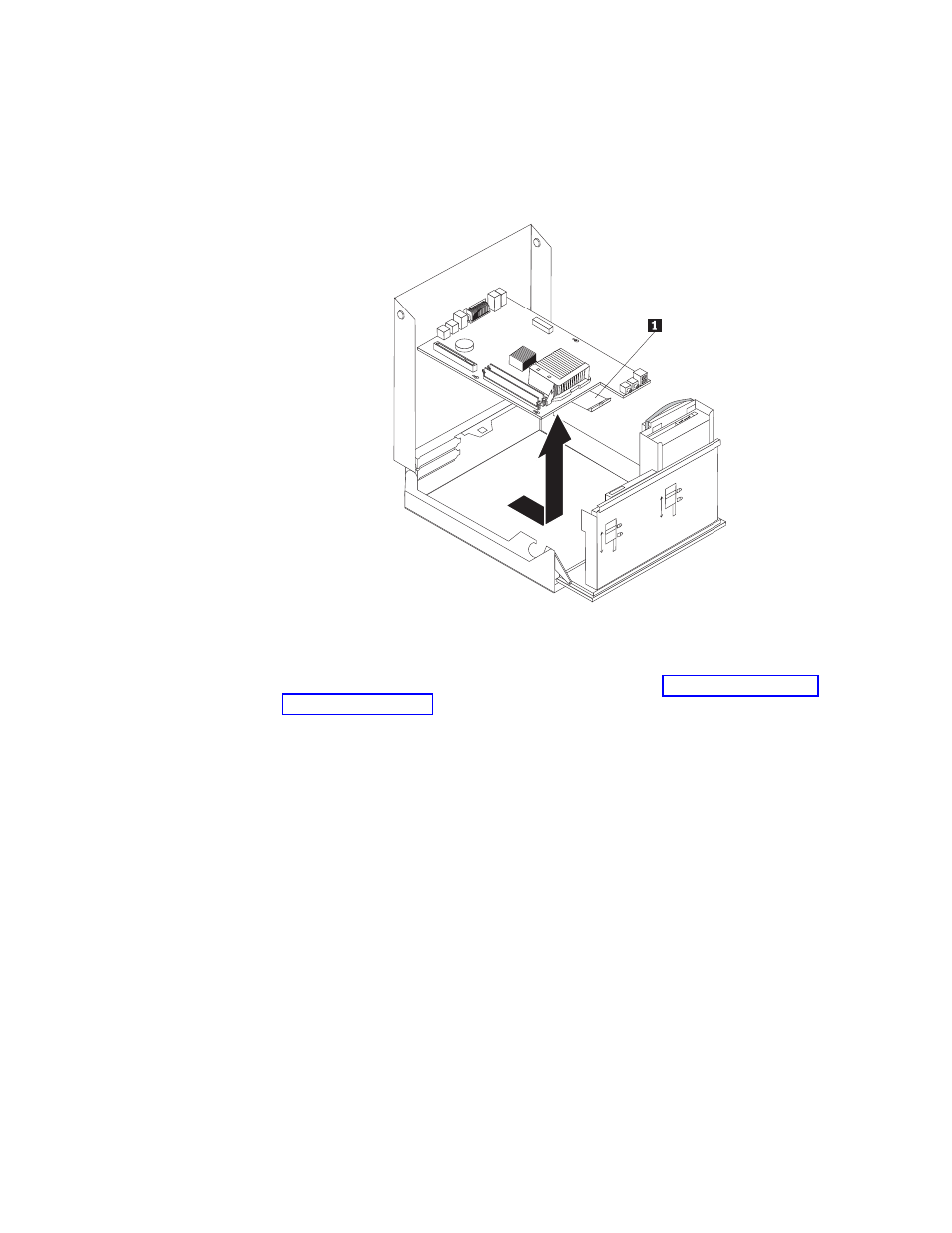

Pull
upward
on
the
handle
1 to
release
the
system
board
from
the
front
latch,
slide
the
system
board
toward
the
drive
bay
assembly,
and
then
carefully
lift
the
system
board
out
of
the
chassis.
Note:
You
might
have
to
tilt
the
front
end
of
the
system
board
between
the
diskette
drive
and
the
fan
assembly
to
remove
it
completely
from
the
chassis.
8.
Place
the
failing
system
board
next
to
the
new
system
board
on
a
clean,
flat
surface.
9.
Remove
all
memory
modules
from
the
failing
system
board
and
install
them
in
the
same
connectors
on
the
new
system
board.
See
Return
here
after
installing
the
memory
modules
on
the
new
system
board.
