Removal steps of integrated camera

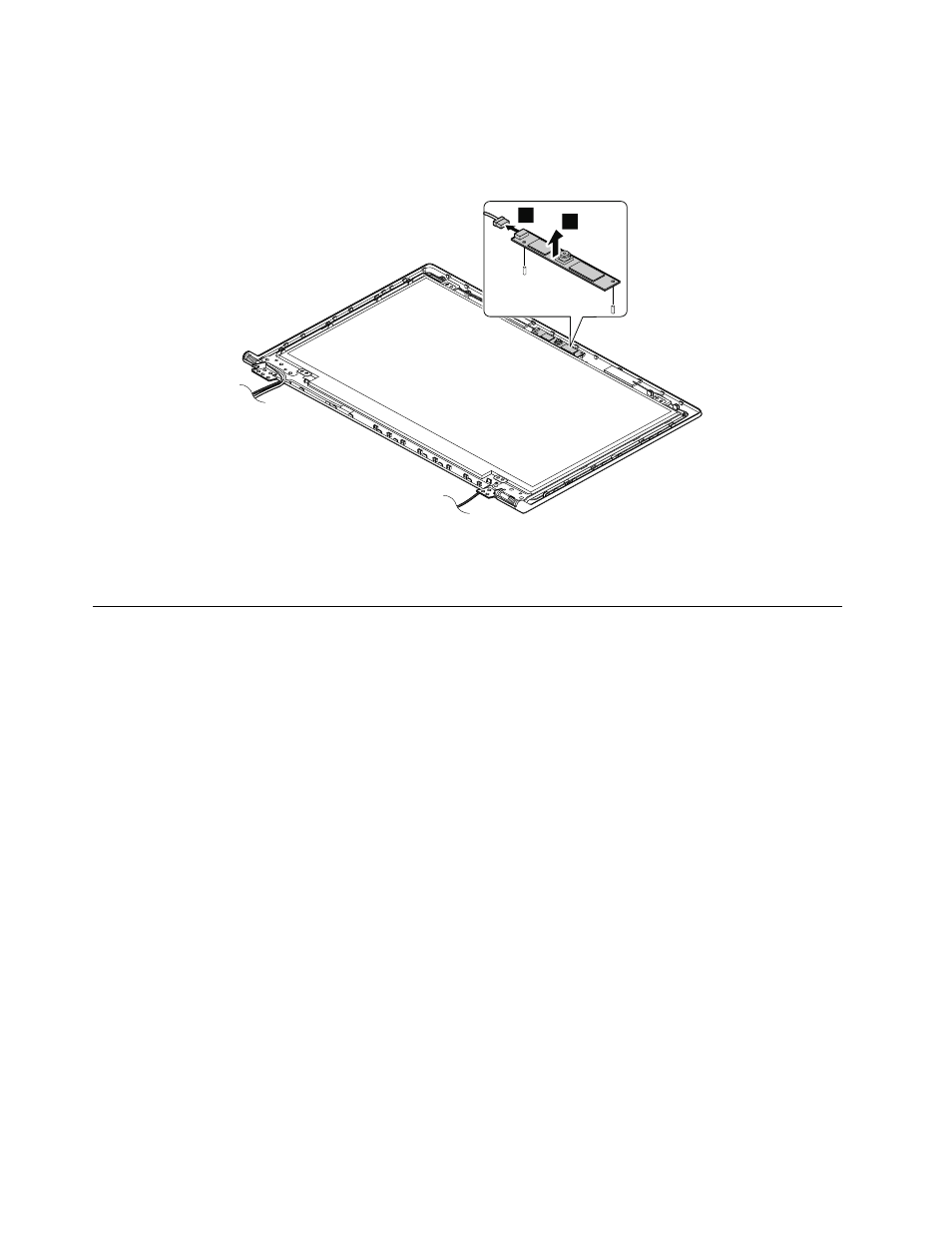

Remove the integrated camera from the LCD cover as shown in the following illustration.
Note: The integrated camera is stuck on the top center of the LCD cover.
1
2
When installing: Stick the integrated camera to the top center of the LCD cover and adjust the placement to
ensure that the connector is attached firmly.
2030 LCD panel, LCD cable, and hinges
For access, remove these FRUs in order:
•
“1010 Battery pack” on page 44
• “1020 Bottom slot cover” on page 44
• “1090 Keyboard” on page 51
• “1100 Keyboard bezel” on page 53
• “1160 System board assembly and USB board” on page 61
• “1190 LCD unit” on page 67
• “2010 LCD front bezel” on page 71
74 Hardware Maintenance Manual
