Lenovo Y70-70 Touch Notebook User Manual
Page 63
59
Lenovo Y70-70 Touch/Y70-80 Touch

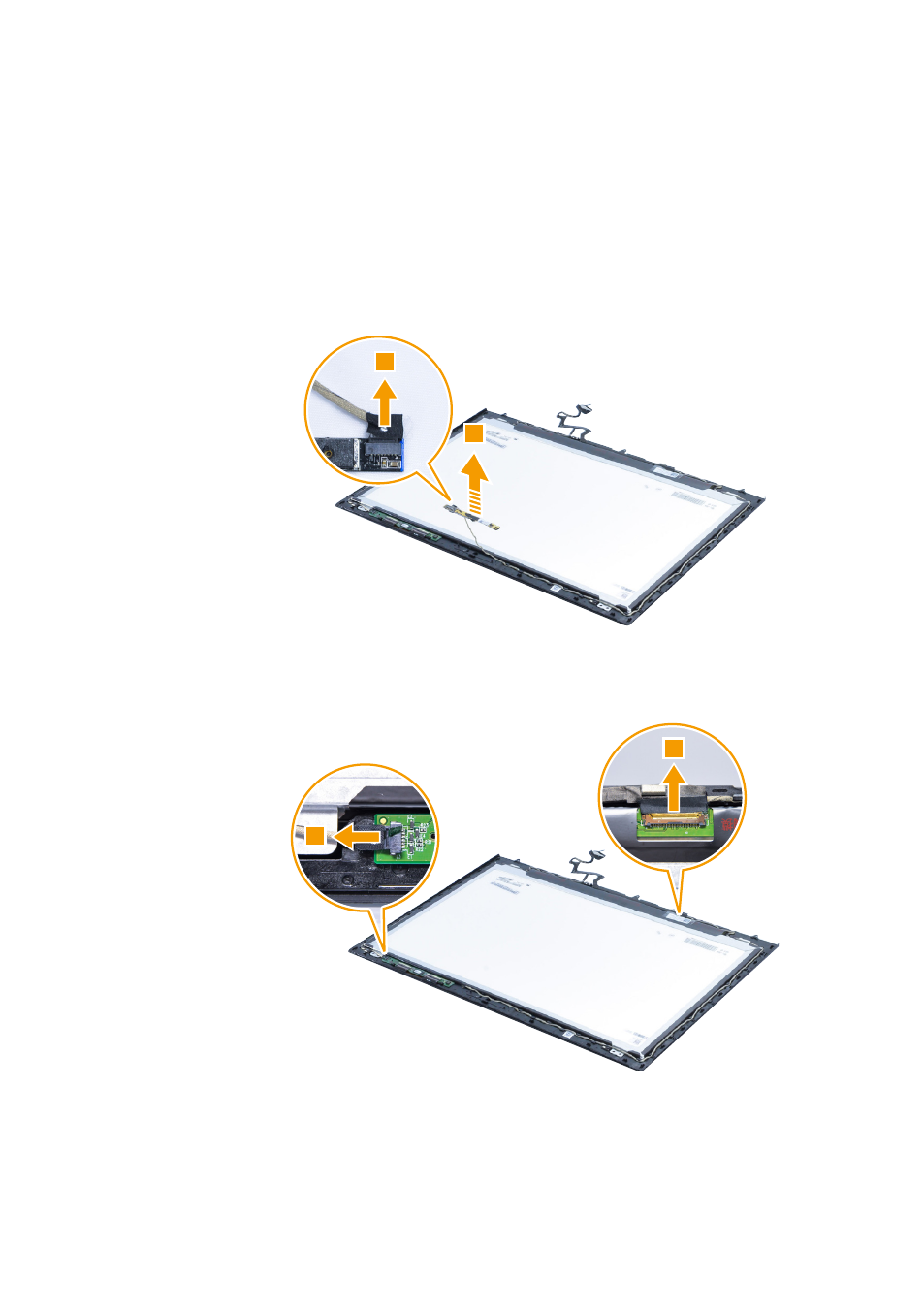

Figure 14. Removal steps of LCD unit (continued)
Lift the camera a little in the direction shown by arrow 8. Disconnect the
camera connector in the direction shown by arrow 9. Then remove the
camera.
Note: The integrated camera is stuck on the top center of the LCD cover.
8
9
Disconnect the connectors in the direction shown by arrows j.
10
10
When installing: Make sure that the connectors are attached firmly.
