Y70-70 Touch/Y70-80 Touch Hardware Maintenance Manual
1080 USB board
For access, remove these FRUs in order:
• “1010 Base cover” on page 33
• “1020 Battery pack” on page 35

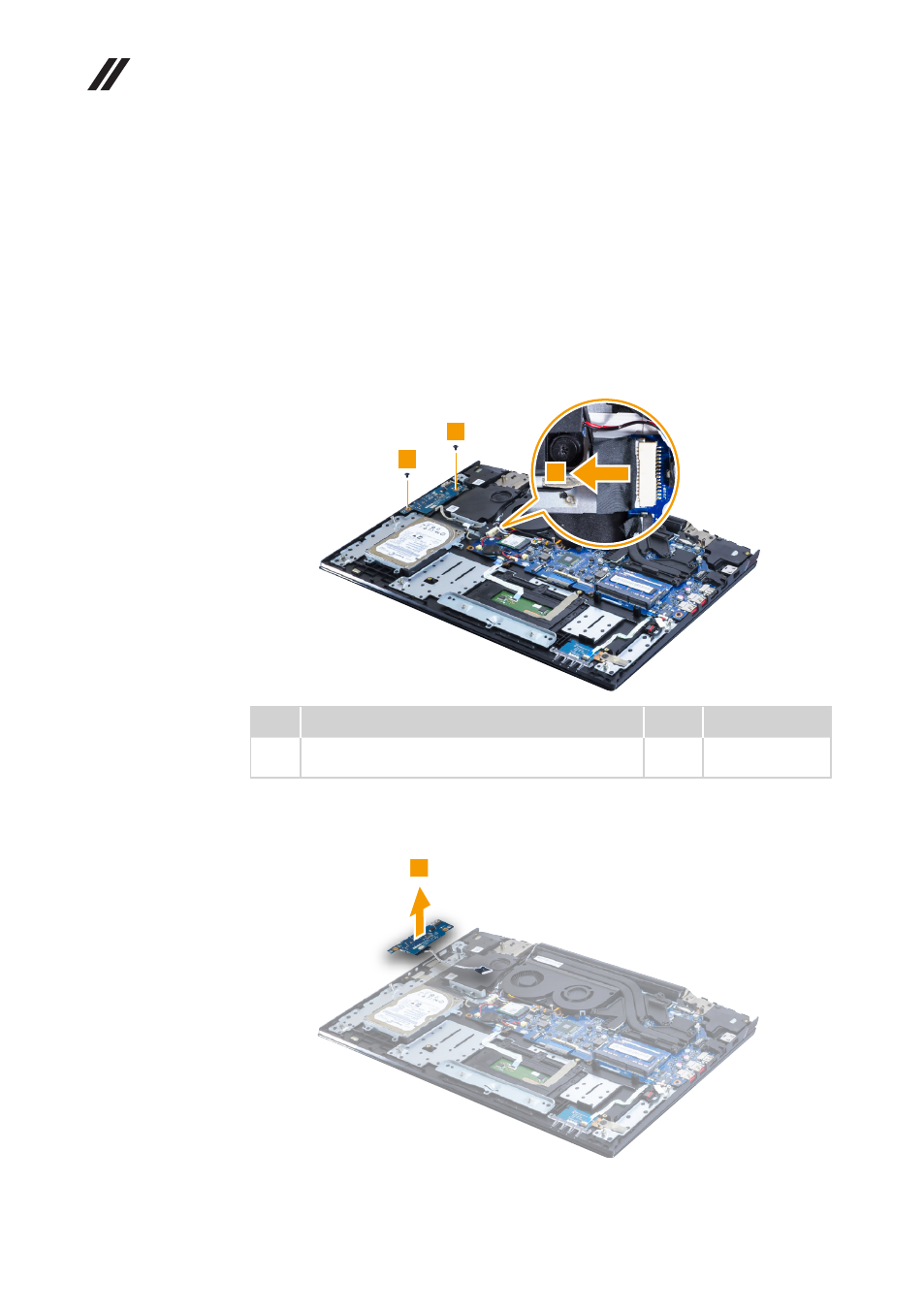

Figure 8. Removal steps of USB board
Detach the connector in the direction shown by arrow 1, Remove the
screws 2.
1
2
2
Step Screw (quantity) Color Torque
2 M2.0 × 3.0 mm, flat-head, nylok-coated (2)
USB PCB to LOGIC UP and KB SUP BKT
Black 2.0 kgf*cm
Remove the USB board in the direction shown by arrow 3.
3
