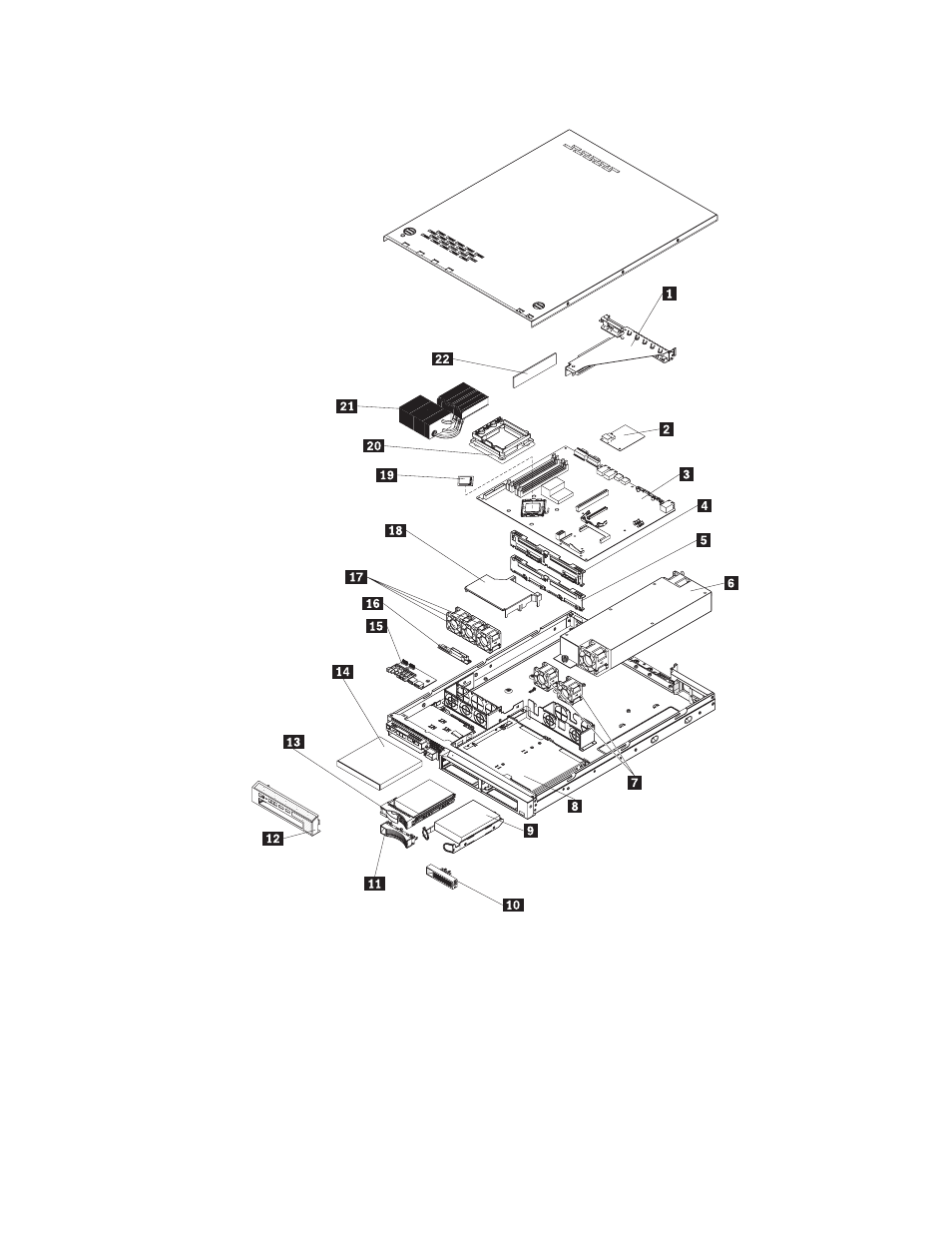

3.5-inch

models

1

Riser

card

assembly

12

Bezel

2

SAS/SATA

controller

(some

models)

13

3.5-inch

hot-swap

hard

disk

drive

(some

models)

3

System

board

14

CD/DVD

drive

4

SAS/SATA

backplane

(some

models)

15

Operator

information

panel

assembly

5

SATA

simple-swap

back

panel

(some

models)

16

CD/DVD

interface

card

6

Power

supply

17

Fans

7

Fans

18

Air

baffle

8

3.5-inch

drive

cage

19

Microprocessor

6

ThinkServer

RS110
