64

Lenovo B5400/M5400/M5400 Touch Hardware Maintenance Manual

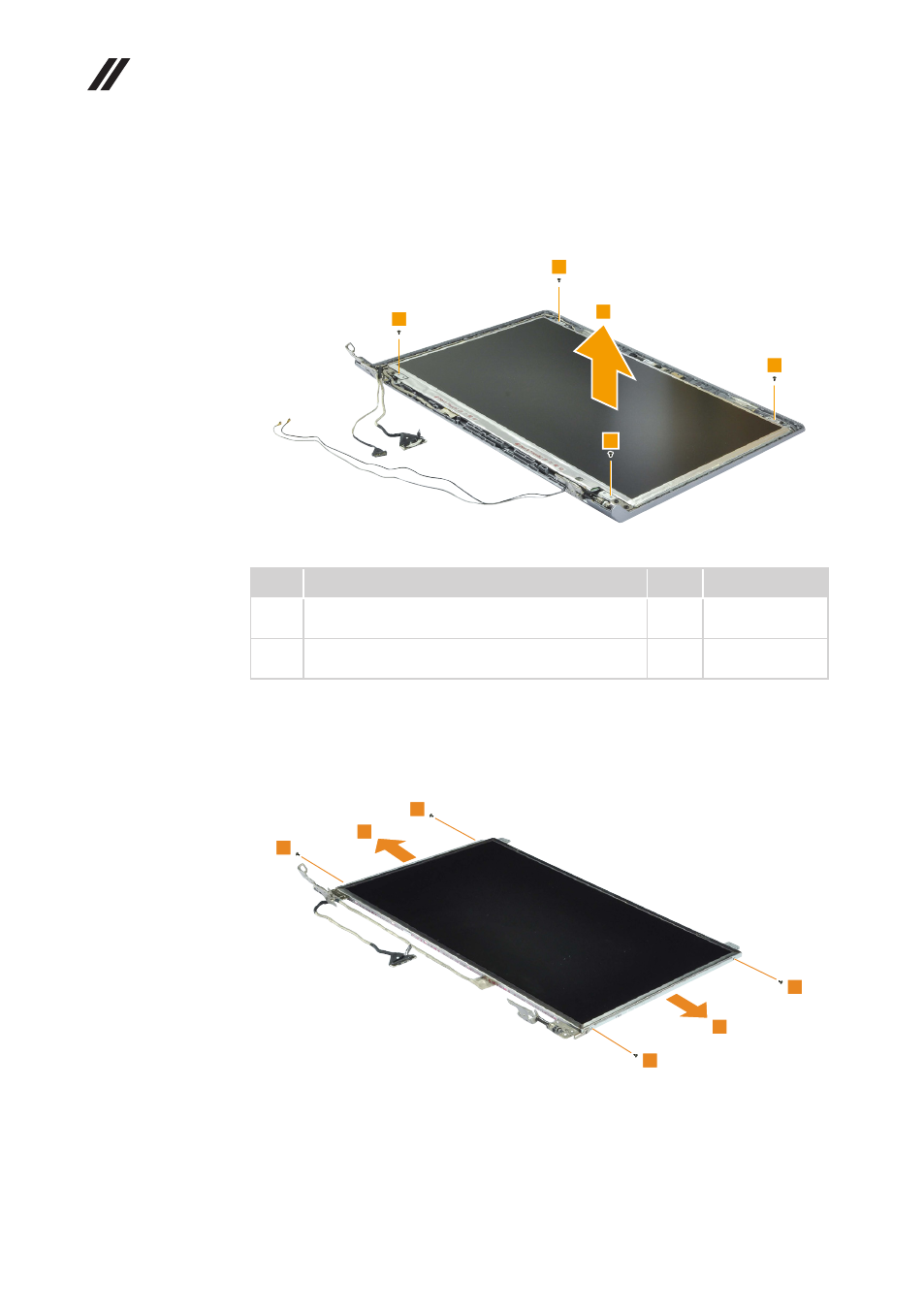

Figure 16. Removal steps of LCD panel, LCD cable, antenna assembly, and

hinges (B5400/M5400) (continued)

M5400

Step Screw (quantity)

Color Torque

1

M2.5 × 3 mm, flat-head, nylok-coated (4) (B5400)

Hinge to LCD Cover (for BM6)

Black 4.0+/-0.3 kgf*cm

1

M2 × 3 mm, flat-head, nylok-coated (4) (M5400)

Panel to LCD Cover (for BM5)

Black 1.85+/-0.15 kgf*cm

Remove the screws

3

. Then release the hinges in the direction shown by

arrows

4

.

B5400
