Lenovo S210/S210 Touch/S215/S215 Touch
49
1080 LCD unit
For access, remove these FRUs in order:
• “1010 Battery pack” on page 34
• “1020 Hard disk drive” on page 36
• “1030 DIMM” on page 38
• “1040 PCI Express Mini Card for wireless LAN/WAN” on page 39
• “1050 Fan assembly and Heat Sink assembly” on page 41
• “1060 Keyboard” on page 43
• “1070 System board” on page 45

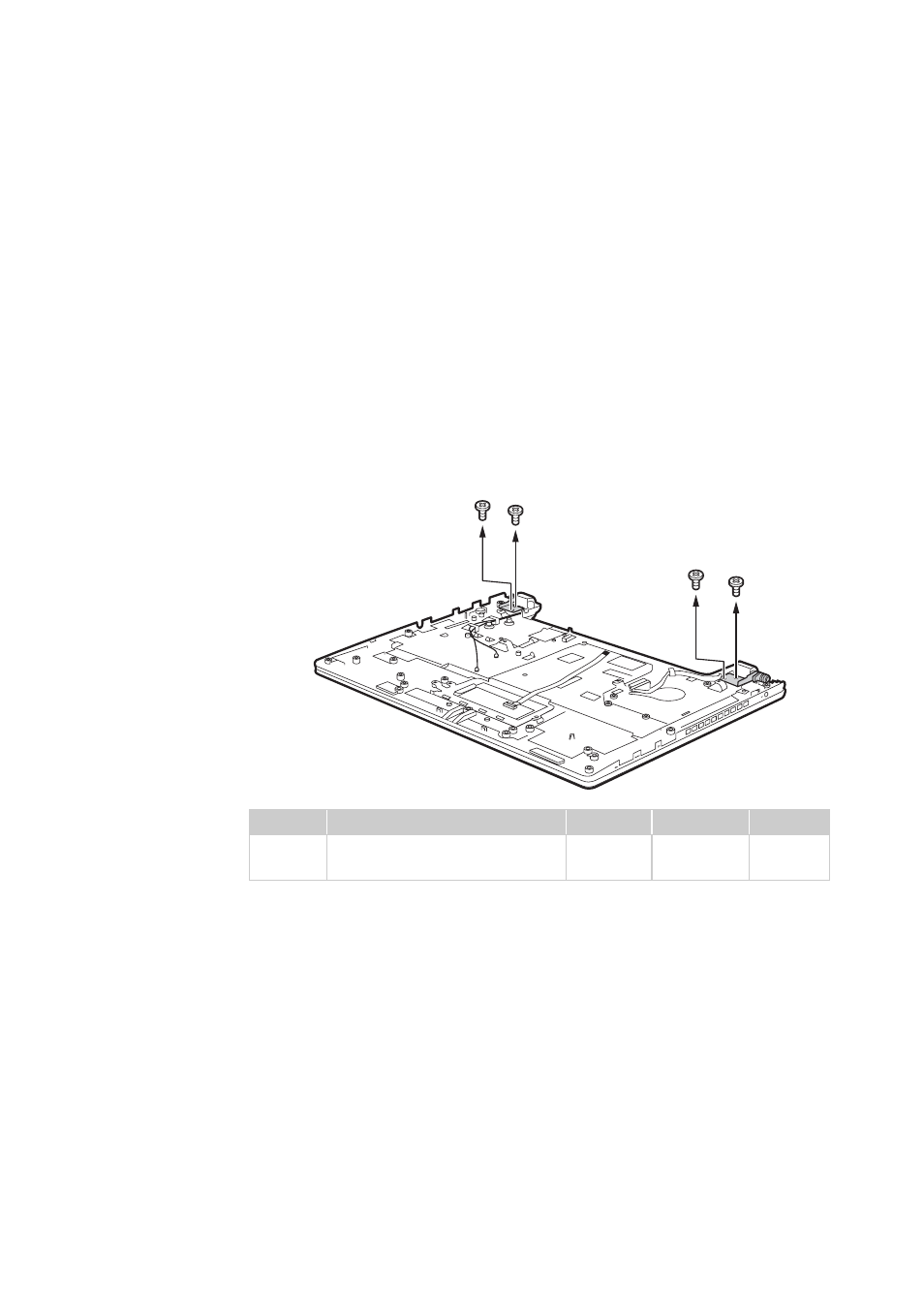

Figure 8. Removal steps of LCD unit
Remove four screws
.
When installing:
• Route the antenna cables along the cable guides. As you route the cables,
make sure that they are not subjected to any tension. Tension could cause the
cables to be damaged by the cable guides, or a wire to be broken.
• Make sure that the LCD connector is attached firmly and make sure that you
do not pinch the antenna cables when you attach the LCD assembly. Route
the LCD cable along the cable guides.
Step
Screw (quantity)
Color
Torque
P/N
M2.5 × 4 mm, flat-head, nylok-
coated (4)
Black
1.85 kgfcm
90202952
