Lenovo S210/S210 Touch/S215/S215 Touch
39
1040 PCI Express Mini Card for wireless LAN/WAN
For access, remove this FRU:
• “1010 Battery pack” on page 34

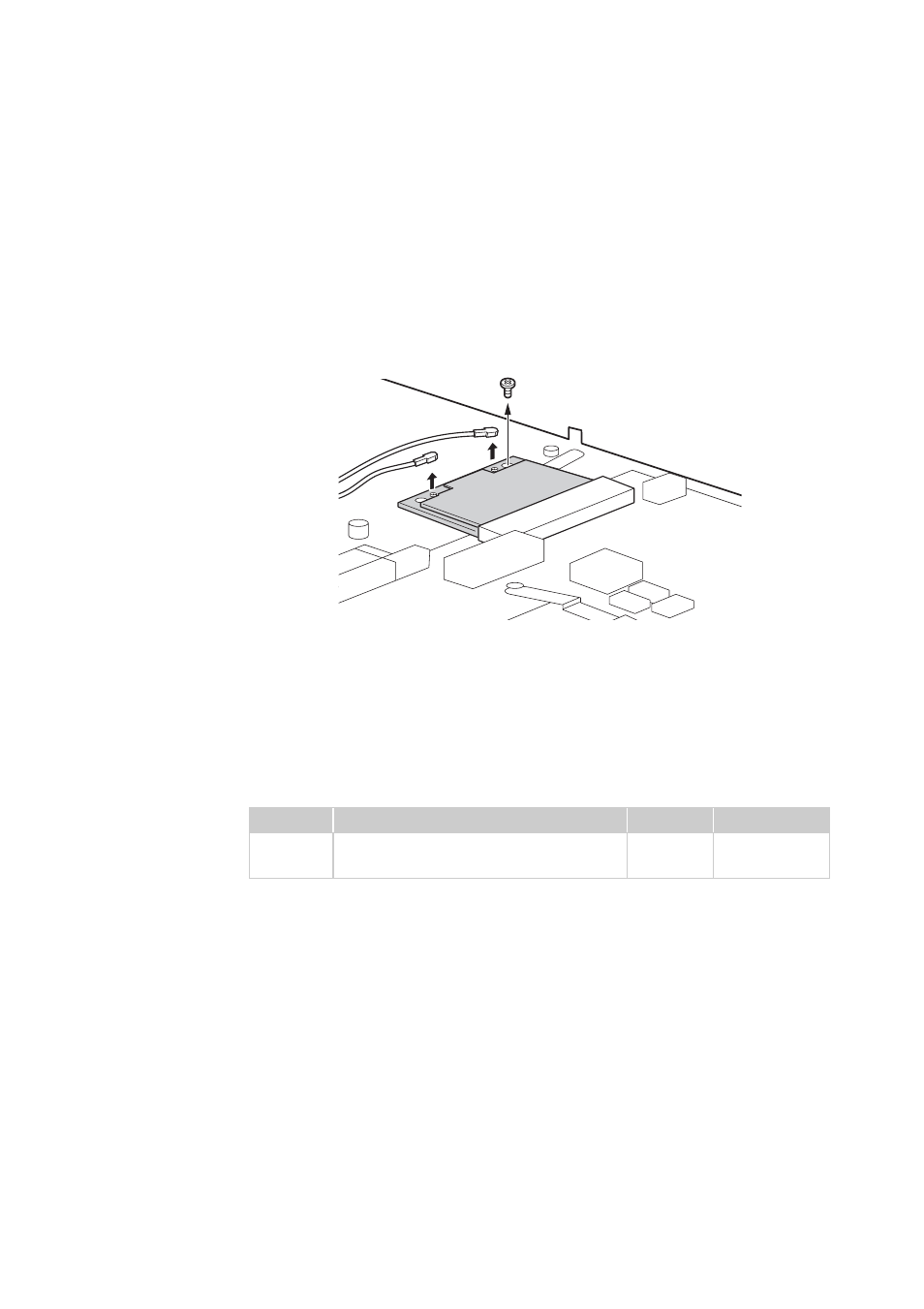

Figure 4. Removal steps of PCI Express Mini Card for wireless LAN/WAN
Disconnect the two wireless LAN cables (black,white)
, and then remove the
screw .
In step
, unplug the jacks by using the removal tool antenna RF connector
(P/N: 08K7159), or pick up the connectors with your fingers and gently unplug
them in the direction shown by arrows.
Notes:
wireless LAN card has 2 cables in step
.
wireless LAN card in some models may have 3 cables in step
.
Step
Screw (quantity)
Color
Torque
M2.0 × 3.0 mm, flat-head, nylok-coated
(1)
Black
1.35 kgfcm
a
b
b
a
a
a
a
a
b
