d. Connect the arm marked with A and the arm-rail joint by pulling out the eject button
1
and inserting
the arm into the arm-rail joint
2
.

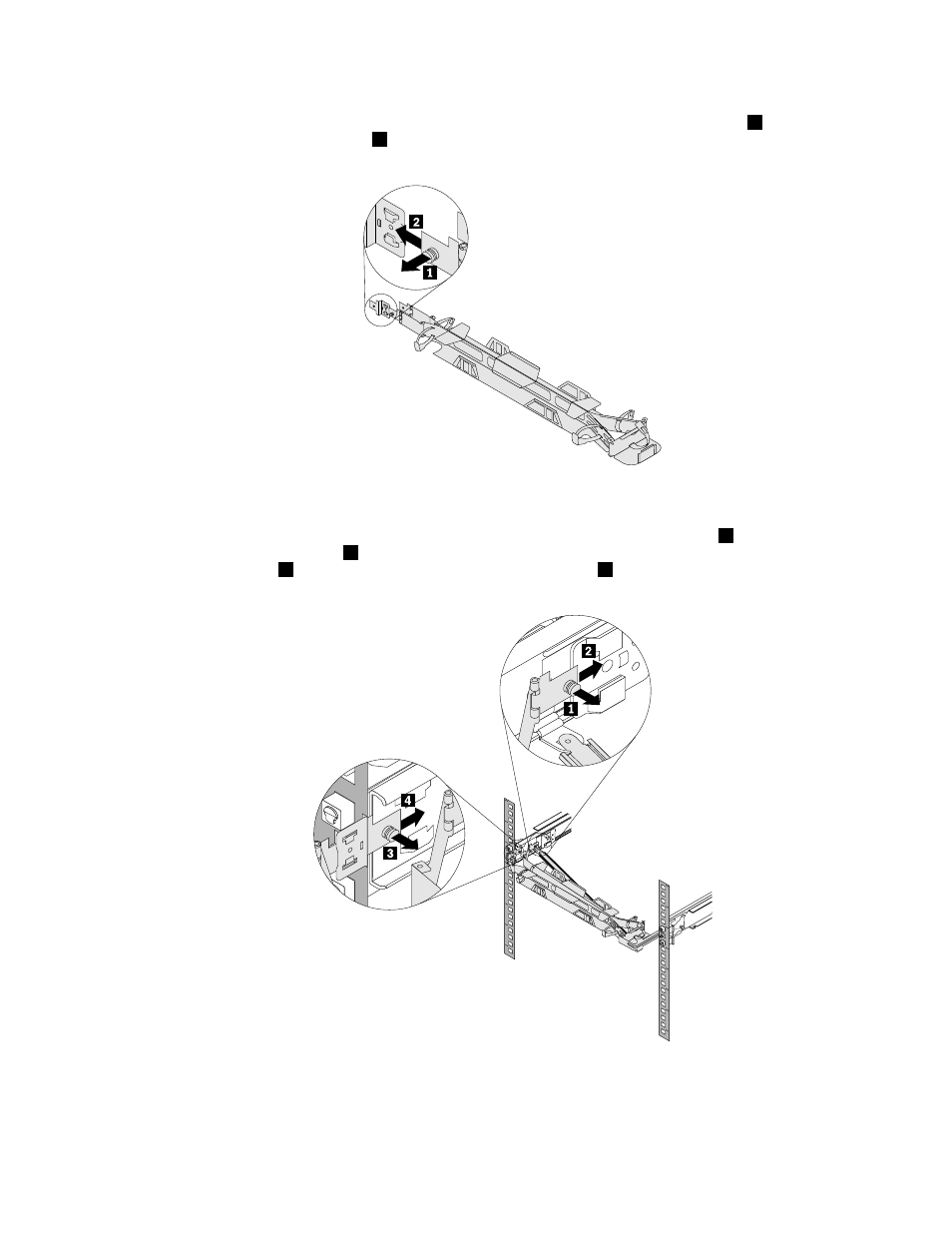

Figure 10. Connecting the cable management arm and the arm-rail joint
e. Connect the arm marked with B and the slide rail by pulling out the eject button
1
and inserting the
arm into the arm-rail joint
2
. Then connect the arm marked with A and the slide rail by pulling out
the eject button
3
and inserting the arm into the arm-rail joint
4
.
Figure 11. Connecting the cable management arm and the slide rail
