d. Repeat steps 1 through 3 to install the left slide rail to the opposite side of the rack cabinet.
2. Install the cable management arm by doing the following:
a. Turn to the rear of the rack cabinet.
b. Align the bump on the crossbar with the dent on the bar-rail joint 1 . Turn the crossbar counter
clockwise until it is secured 2 .

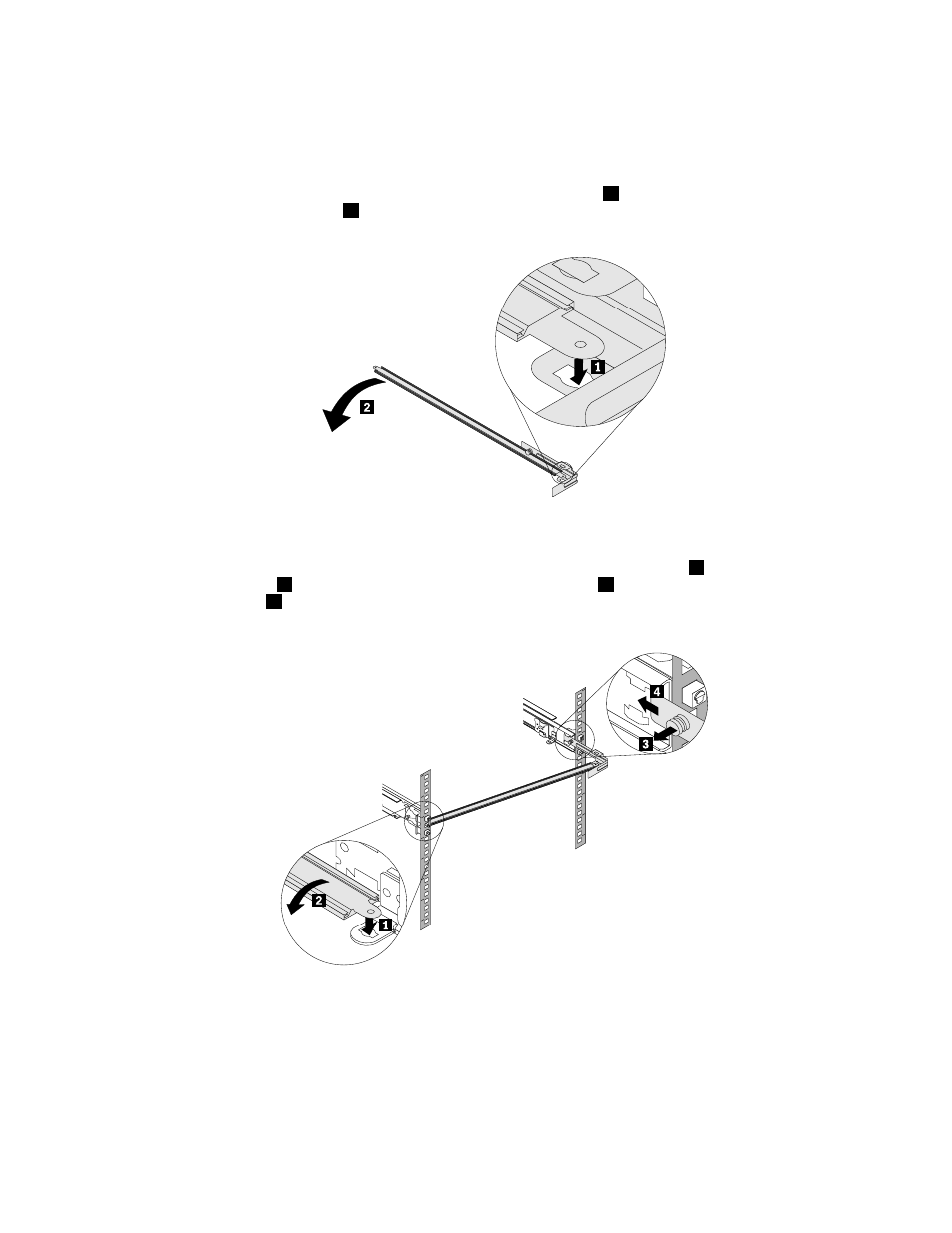

Figure 8. Connecting the crossbar and the bar-rail joint
c. Align the bump on the other end of the crossbar with the dent on the slide rail 1 . Turn the crossbar
counter clockwise 2 until it is secured. Pull out the eject button 3 and insert the bar-rail joint
into the slide rail 4 .
Figure 9. Connecting the crossbar and the slide rails
