OPERATION
PA92 04/09 Operation Section 4-21
© 2009 Alamo Group Inc.
OPERA
T
ION
8. OPERATING THE BOOM MOWER

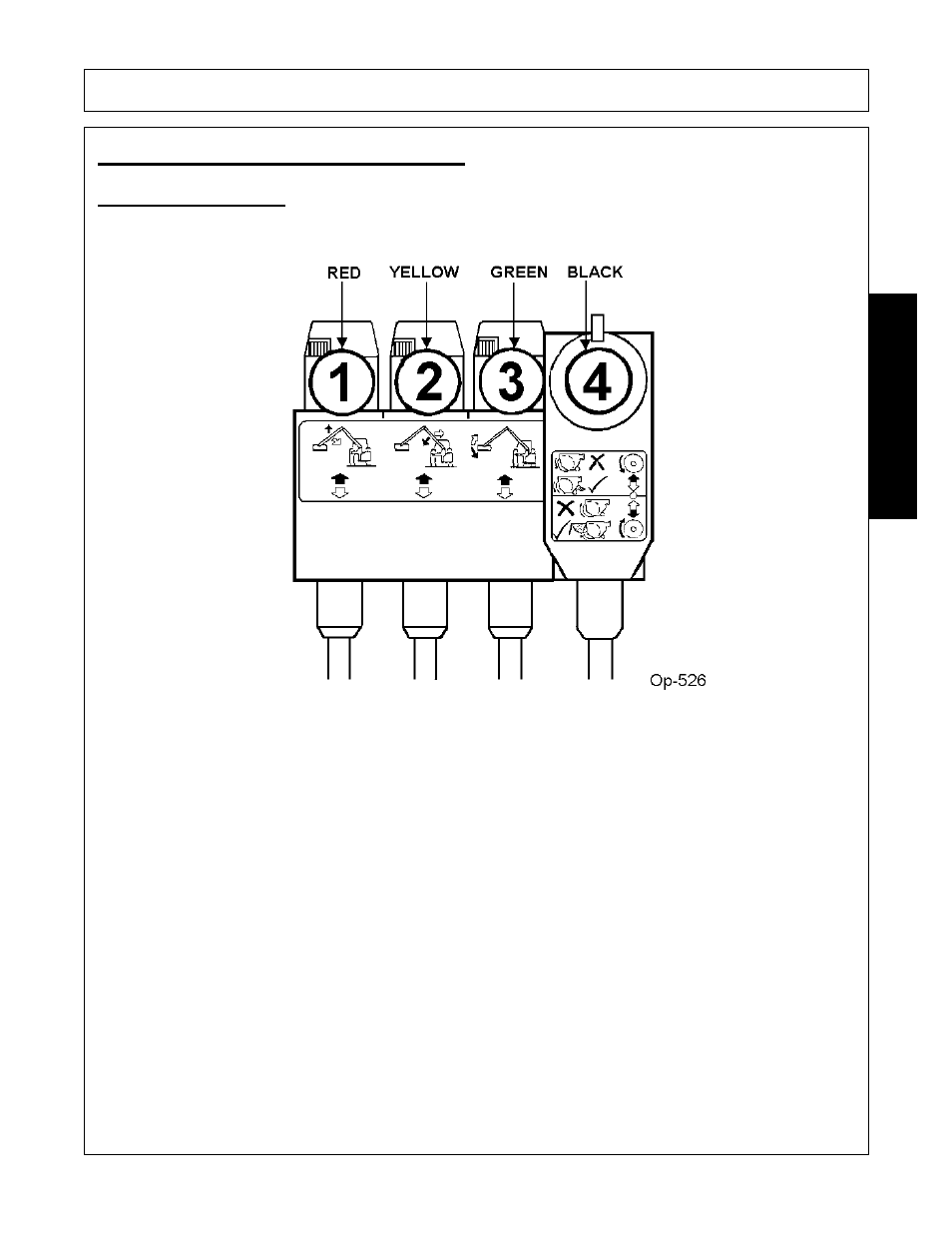

8.1 Machine Controls
Moving the Arm control levers away from the cables will result in “LIft Down”, “Angle Down” and “Reach Out”.
For Ti Models only, the Flail On/Off valve can be mounted on either end of the main control block. It is delivered
with the lever control gate set in the position limiting the lever selection to “Flail Off” and “Flail On - Upwards
Cut”. Should a downward cut be required, the lever gate can be rotated to allow “Flail Off” and “Flail On -
Downward Cut” selection.
Before making this adjustment, disengage the PTO shaft and ensure that the rotor has stopped rotating.
Do not be tempted to discard the lever gate; it is there to prevent sudden, inadvertent changes of rotation
which could cause damage to the machine.
