1 2 3 4 5
6
7
8
9
1 0 1 1 1 2
1 4
1 3
1 5
1 6

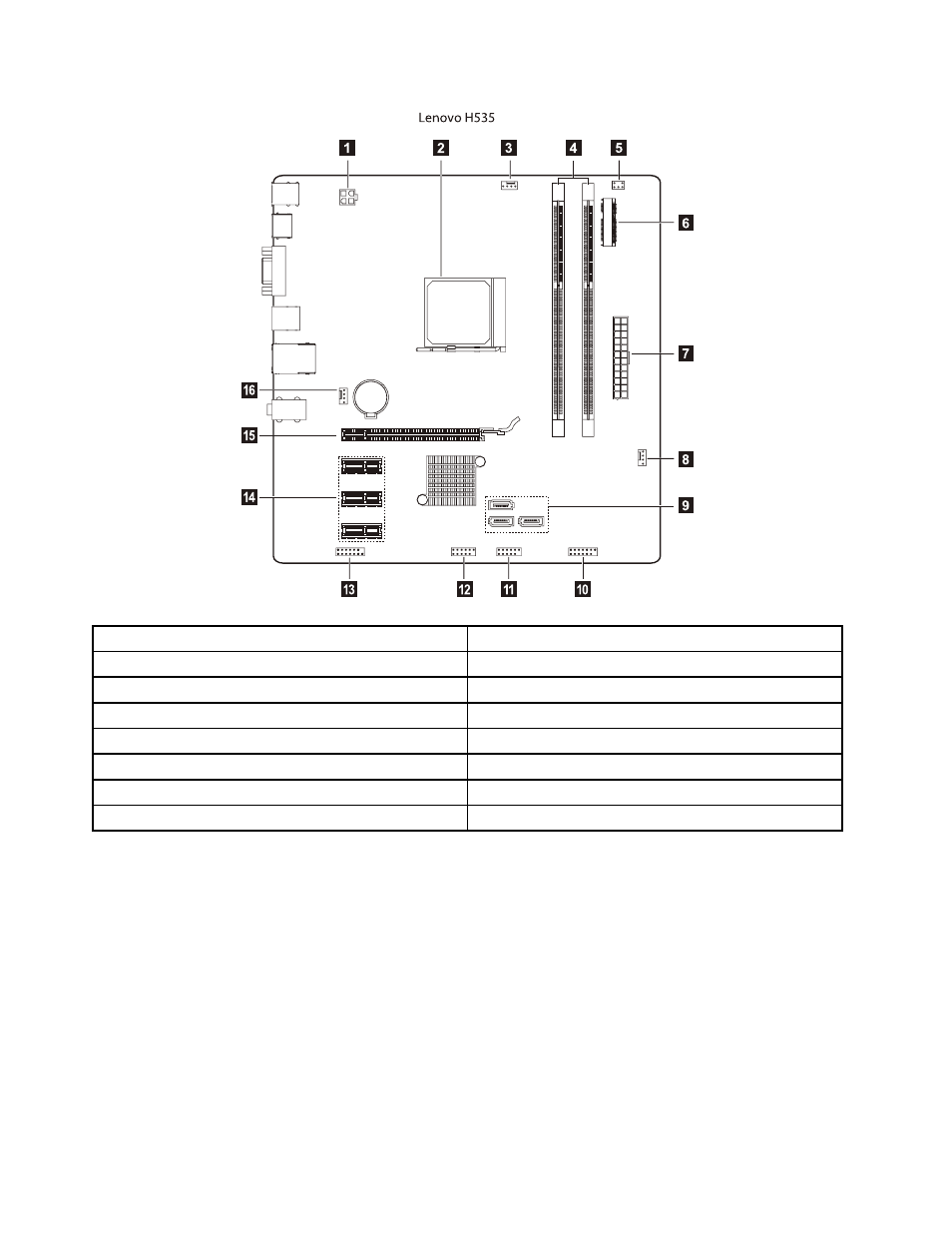

Lenovo H535
1. 12V power connector 9. SATA connectors (3)
2. Microprocessor and heat sink 10. Front panel connector
3. Microprocessor fan header 11. Front USB connector
4. Memory slots (2) 12. Front USB connector
5. Thermal sensor header 13. Front audio connector
6. Mini PCI-E slot 14. PCI express × 1 adapter slots (3)
7. Power connector 15. PCI express × 16 adapter slot
8. Power fan header 16. System fan header
28 Lenovo H505/520/535Hardware Maintenance Manual
