Chapter 7. Locating connectors, controls and components
This section provides illustrations to help locate the various connectors, controls and components of the
computer.
Font view

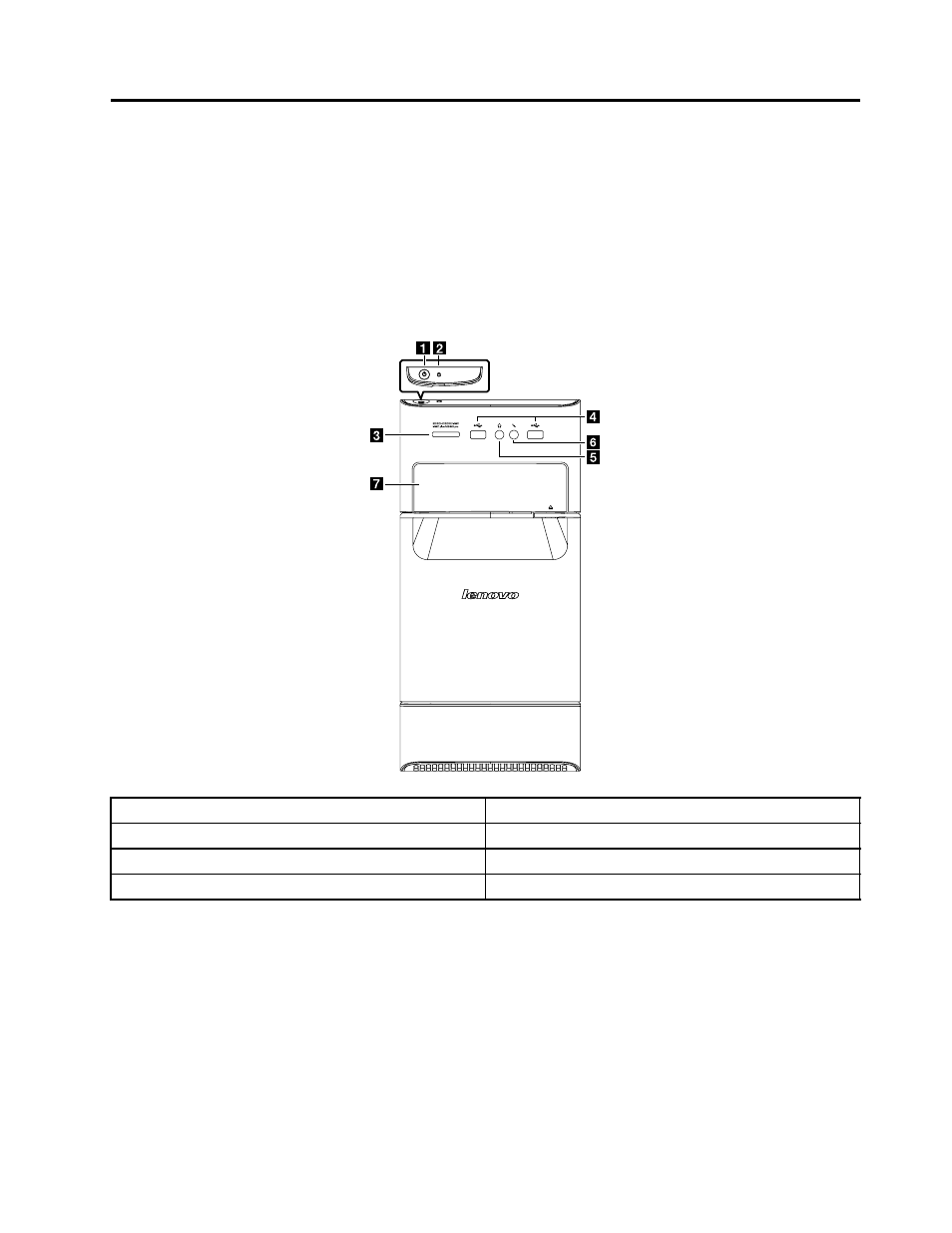

The following illustration shows the location of controls and components on the front of the computer.
Attention: Be careful not to block any air vents on the computer. Blocked air vents can cause overheating.
1. Power button 5. Headphone connector
2. Hard disk drive indicator 6. Microphone connector
3. Memory card reader (selected models only) 7. Optical Drive (selected models only)
4. USB connectors
Attention: The effective range of the Built-in IR Emitter is 10 feet (3m).
© Copyright Lenovo 2012 21
