69
Lenovo B550
1170 Integrated camera
For access, remove these FRUs in order:
• “1010 Battery pack” on page 34
• “1030 Memory/Wireless module/CPU (central processing unit) compartment
cover” on page 37
• “1080 PCI Express Mini Card for wireless LAN/WAN” on page 44
• “1090 Keyboard cover and power board” on page 46
• “1100 Keyboard” on page 49
• “1110 LCD unit” on page 51
• “1150 LCD front bezel” on page 66
• “1160 LCD panel and hinges” on page 67

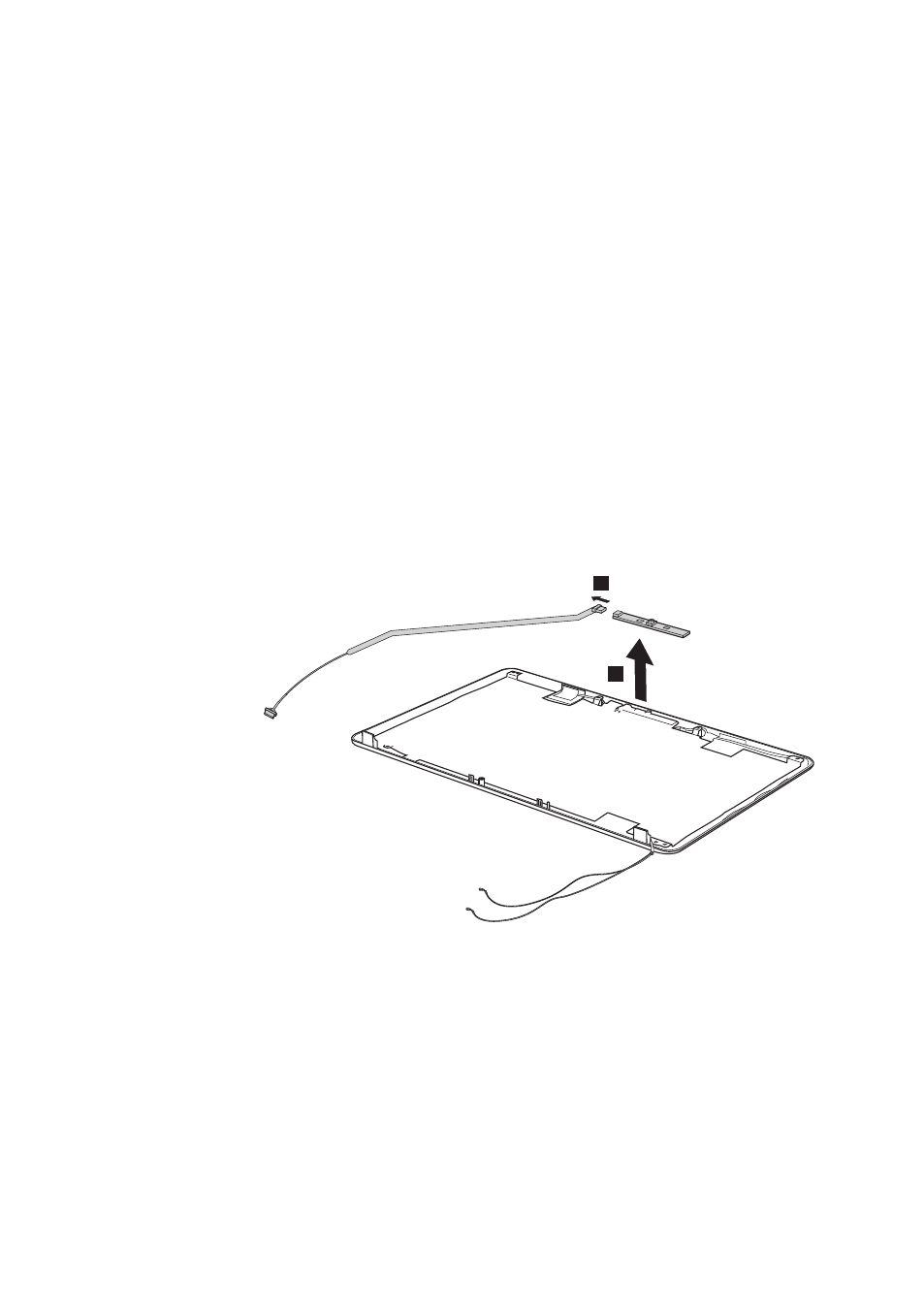

Figure 17. Removal steps of integrated camera
Note: The integrated camera is attached to the top center of the LCD cover.
Detach the connector in the direction shown by arrow
1
and then remove the
integrated camera from the LCD cover 2 .
2
1
When installing: Attach the integrated camera to the top center of the LCD
cover and ajust the placement of it to make sure the connector is attached
firmly. When replacing the integrated camera, route the connector cable as
shown in the figure above.
