1030 Memory/Wireless module/CPU (central processing unit)
compartment cover

For access, remove this FRU:
• “1010 Battery pack” on page 34

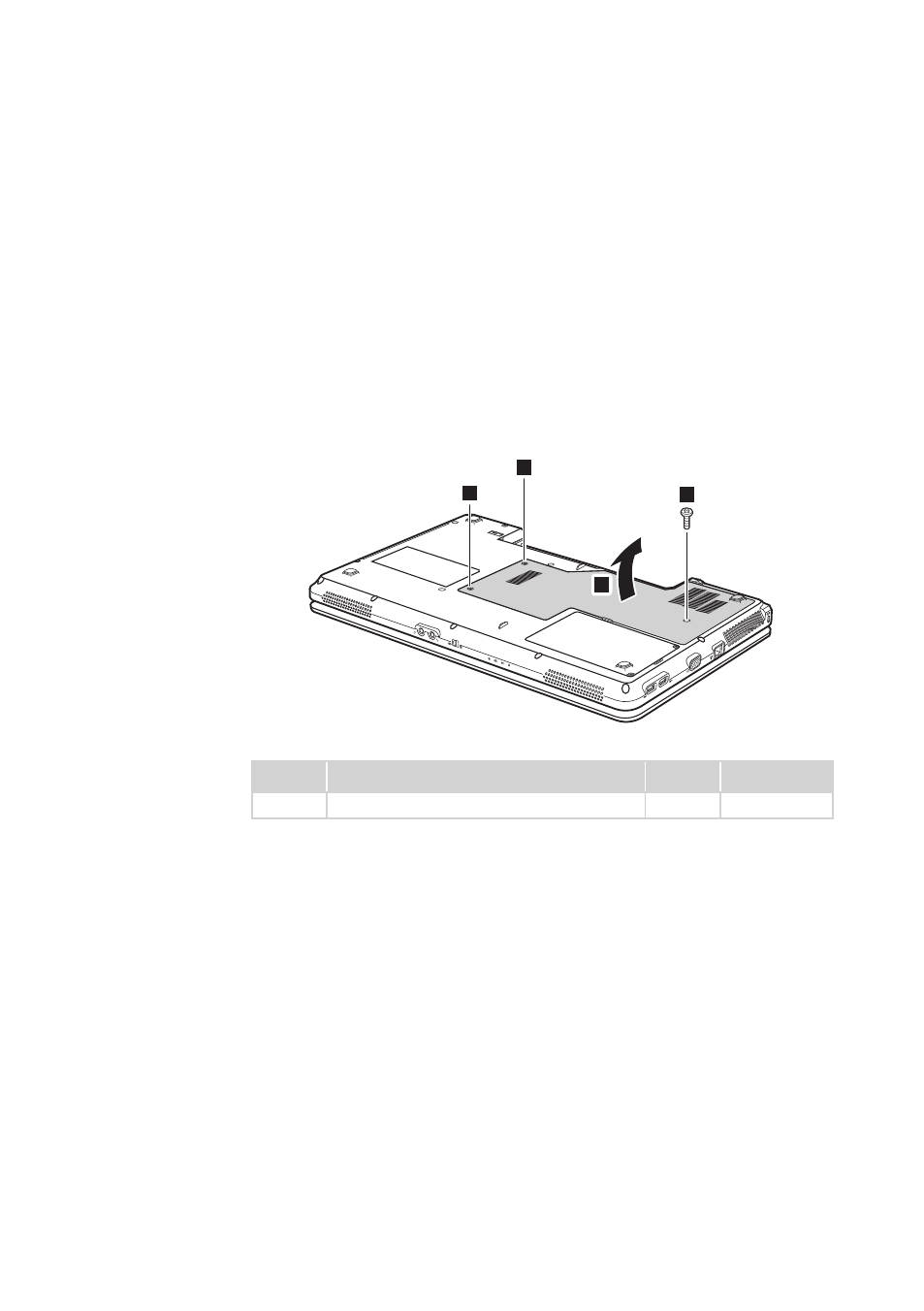

Figure 3. Removal steps of Memory/Wireless module/CPU compartment cover
Note: Loosen the screws

1

, but do not remove them.

Remove the screw

2

.

Remove the Memory/Wireless module/CPU compartment cover in the direction

shown by arrow

3

.

1

1

3

2

Step

Screw (quantity)

Color

Torque

2

M2.5 × 8 mm, flat-head, nylon-coated (1)

Black

2.0~2.5 kgf·cm
