51
Lenovo B550
1110 LCD unit
For access, remove these FRUs in order:
• “1010 Battery pack” on page 34
• “1030 Memory/Wireless module/CPU (central processing unit) compartment
cover” on page 37
• “1080 PCI Express Mini Card for wireless LAN/WAN” on page 44
• “1090 Keyboard cover and power board” on page 46
• “1100 Keyboard” on page 49

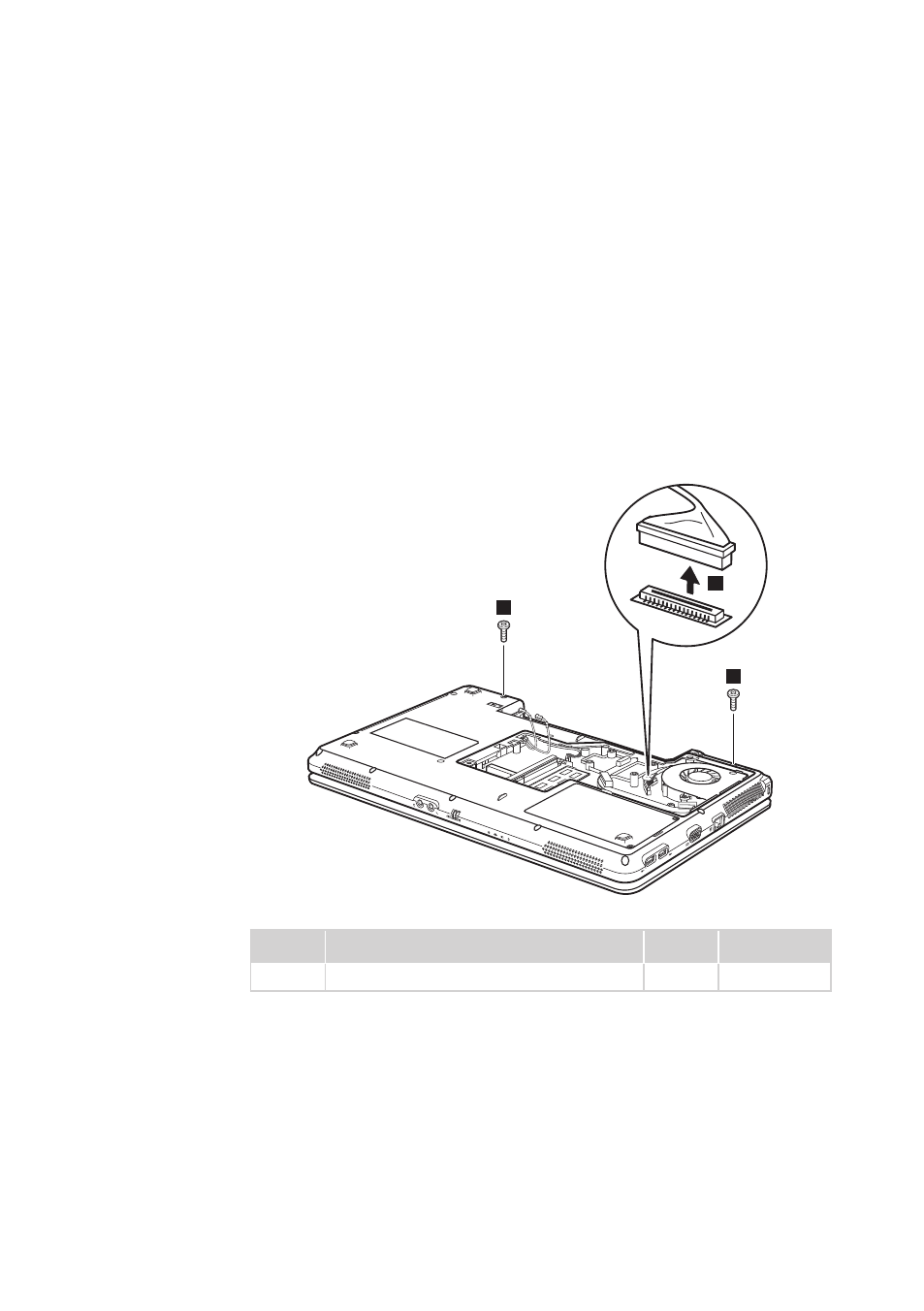

Figure 11. Removal steps of LCD unit
Remove the two screws
1 and detach the LCD connector 2 .
2
1
1
Step Screw (quantity) Color Torque
1
M2.5 × 8 mm, flat-head, nylon-coated (2) Black 2.5~3.0 kgf·cm
