Lenovo IdeaPad U310/U410 U310/U410 Touch
75
1110 LCD front bezel
For access, remove these FRUs in order:
• “1010 Battery pack” on page 34
• “1030 Hard disk drive” on page 46
• “1040 DIMM” on page 49
• “1050 PCI Express Mini Card for wireless LAN/WAN” on page 51
• “1060 Fan assembly and Heat Sink assembly” on page 54
• “1070 Keyboard” on page 60
• “1080 System board” on page 63
• “1090 LCD unit” on page 67
• “1100 Base cover, bluetooth card, USB board, power assembly and power
board” on page 70

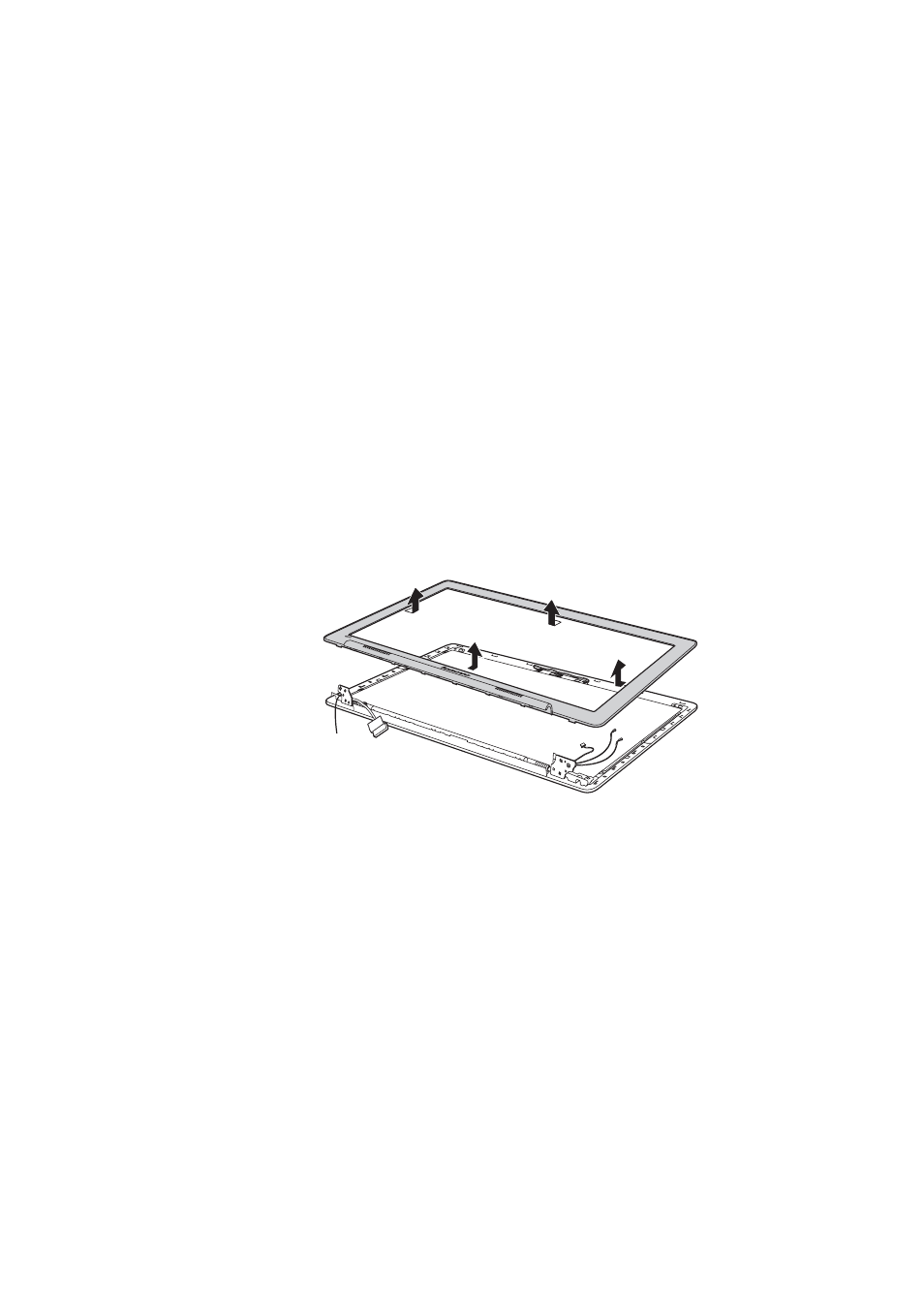

Figure 11. Removal steps of LCD front bezel
Remove the LCD front bezel in the direction shown by arrows .
U310:
a
a
a
a
a
