32

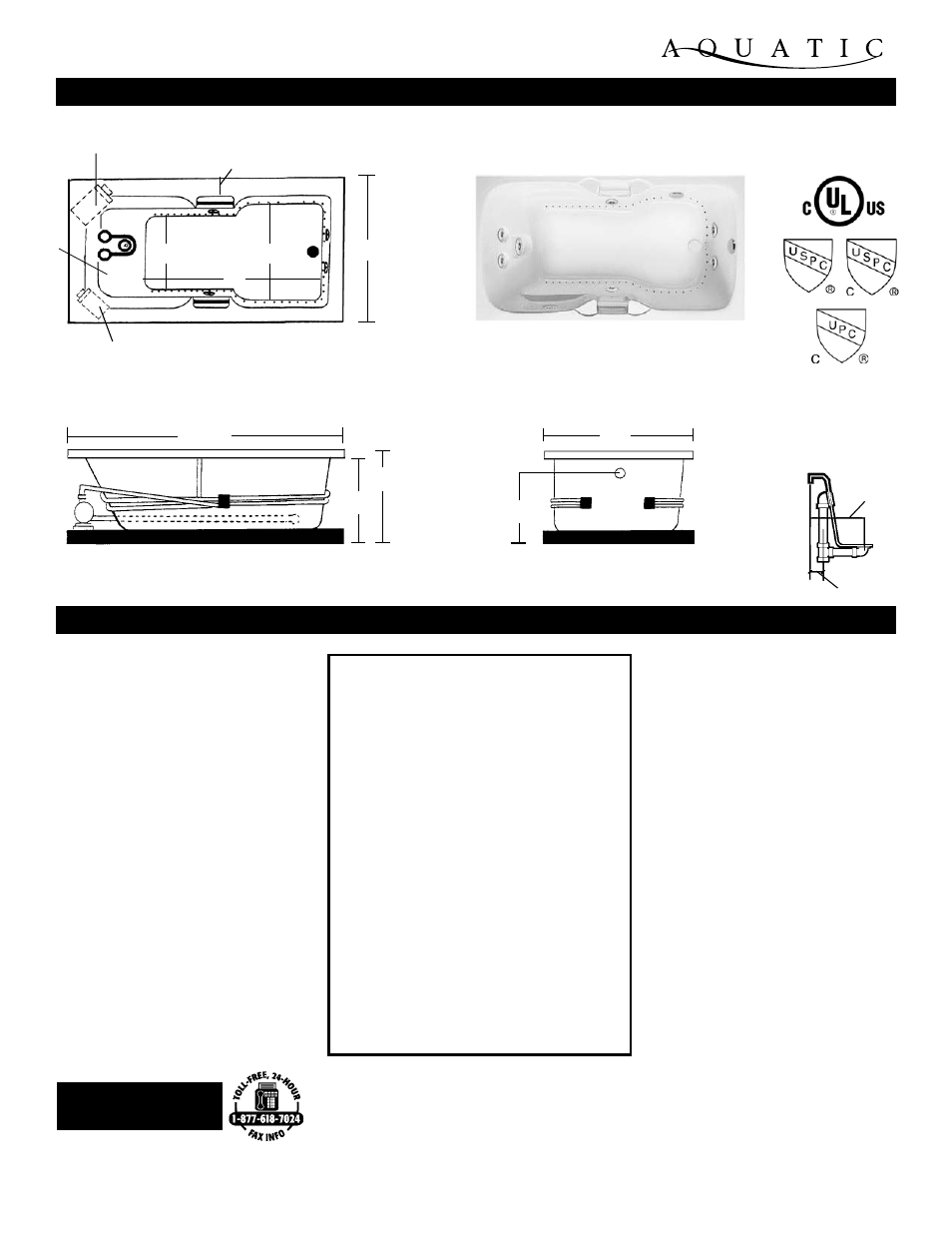

SPECIFICATIONS:

The manufacturer accepts a 1/4” variance. There are variations on each tub and specifications are subject to change as we improve upon our product as required. The dimensions needed for site preparation
and structure building should be measured from the tub; Aquatic Industries, Inc. assumes no responsibility for preparatory work.

www.aquaticwhirlpools.com 800.555.5324

March 2008

Rough-In Plumbing
Measurements

luxEAIr SErIES

Model

# ai22lux6636

luxEAIr 22

GeneRal SPecIfIcatIonS:

Tub Size 66 1/4” x 36” x 23 3/4”

168 cm x 91 cm x 60 cm

Bathing Well 42” long

22” wide

22” interior depth

Shipping Weight 248 lbs. / 112 kg

Weight w/Equipment 179 lbs. / 81 kg

Tub Weight Filled 885 lbs. / 401 kg

Gallons to Overflow 85 gal. / 322 L
Gallons to Operate 66 gal. / 250 L

Electrical Specifications:

Pump

1.75 HP; 12 AMP; 110V

Inline Heater 1.5 kW; 12.5 AMP; 110V

Requirement 1-15 AMP 2 pole, separate circuit

required protected with Class A GFCI

Blower

1 HP; 10.5 AMP; 110V

Requirement 1-15 AMP 1 pole, separate circuit

required protected with Class A GFCI

This whirlpool will need to be hard wired to the breaker box.

Three outlets will be supplied on the whirlpool.

oPtIonal equIPMent:

Chromatherapy LED Lighting

Comfort Pillow - Oval or Rectangle

Jet Finish

- Chrome, Polished Brass, Gold, Polished Nickel
or Satin Nickel

Grab Bar

- White, Biscuit, Chrome, Polished Brass, Gold,
Polished Nickel, Satin Nickel or Oil Rubbed Bronze

Lift & Turn Waste and Overflow

- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel or Oil Rubbed Bronze

Cable Drive Waste and Overflow

- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel, Oil Rubbed Bronze or
Color Matched (Bone, White and Biscuit Only)

Hand Held Jet - Chrome or Polished Brass

Factory Installed Rigid ABS Tile Flange

Color Matched Acrylic Skirt

Premium Colors

All acrylic colors featured by Aquatic match the

industry’s leading fixture manufacturers.

fax-on-Demand

Document # 1206

2 1/4”

12”

20 1/4”

36”

36”

Blower

22”

18”

42”

no alternate pump/blower locations available.

66 1/4”

22”

23 3/4”

7 Hydrotherapy Jets including:
- 4 Full Size Pressure-Flo Hydrotherapy Jets
- 2 StressEaz Neck & Shoulder Therapy Jets
- 1 Recessed Rotary Massage Jet

air Bath System:
- 55 Air Jets
- 1 HP Variable Speed Air Blower with 20-Minute Timer
- Electronic Control Panel
- 3 Massage Settings: Constant, Wave and Pulse
- Automatic Purge and Dry Cycle
- 600 Watt Air Heating System
aquatic quality features:
- 1.75 HP Run-Dry Pump with 20-Minute Timer
- 1.5 kW Inline Maintenance Heater
- ”Quiet Pad”

Anti-Vibration Pump Mount for Quiet Pump Operation

- 2 Color Matched Grab Bars
- 2 Arm Rests
- Slip Resistant Floor
- Pre-leveled ABS Support Base
- Heat-bent Rigid PVC Piping for Optimum Sanitary Conditions
- Durable, Easy to Clean, Lucite® Cast Acrylic Surface
- Available in 8 Standard No-Charge Colors

ul & IaPMo listed, factory tested

limited lifetime Warranty

StanDaRD equIPMent:

Pump

Deck Width 1 3/4”

Back Angle

35º
