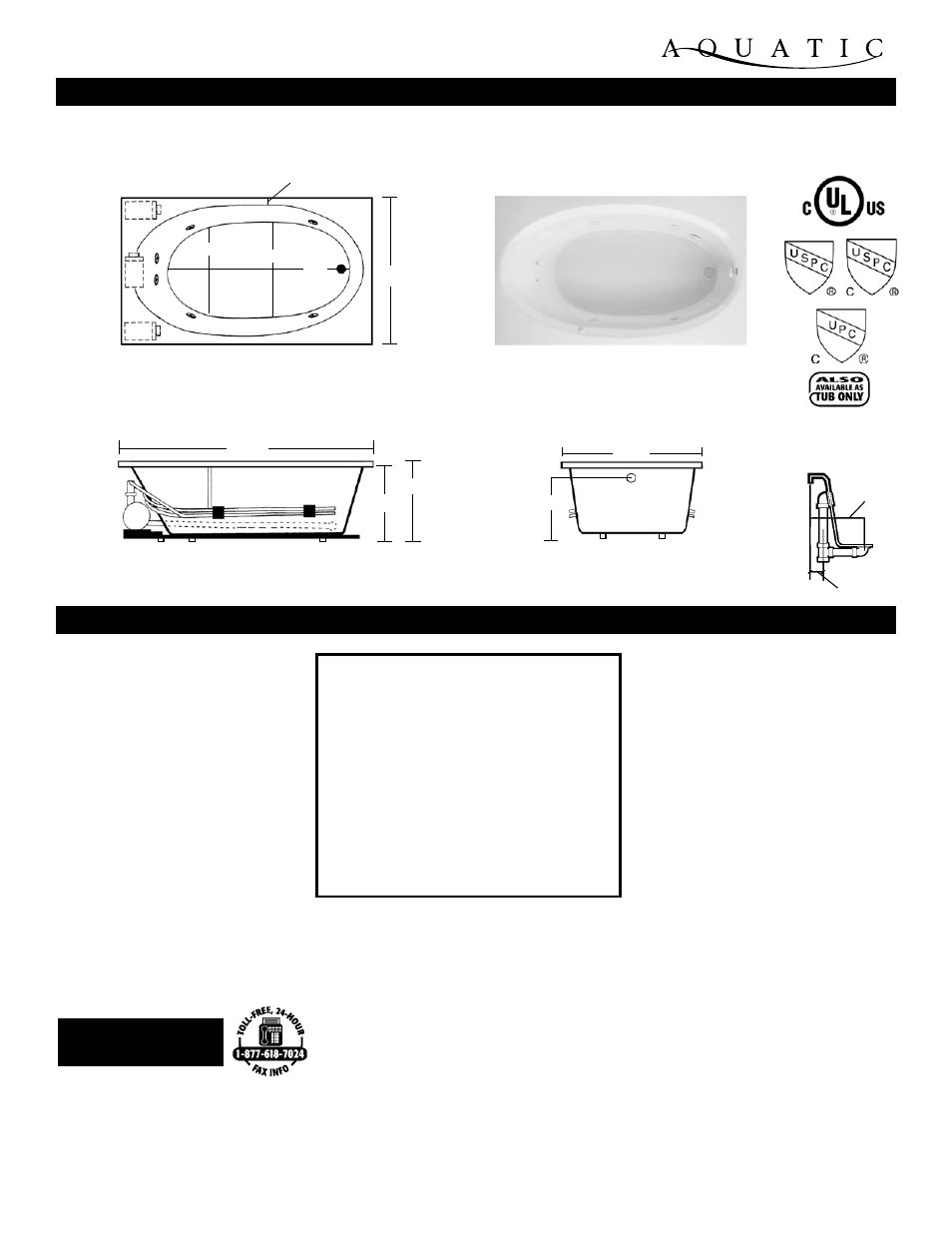

SPECIFICATIONS:
The manufacturer accepts a 1/4” variance. There are variations on each tub and specifications are subject to change as we improve upon our product as required. The dimensions needed for site preparation
and structure building should be measured from the tub; Aquatic Industries, Inc. assumes no responsibility for preparatory work.
www.aquaticwhirlpools.com 800.555.5324
February 2008
Rough-In Plumbing
Measurements
SymPhONy 5
GeneRal SPecIfIcatIonS:
Tub Size 71 1/4” x 42 1/4” x 20 1/4”
181 cm x 107 cm x 51 cm
Bathing Well 49” long
26 1/2” wide
18” interior depth
Maximum Water Depth 12 1/2”
Shipping Weight
176 lbs. / 80 kg
Tub Weight Filled 717 lbs. / 325 kg
Tub Only Weight 126 lbs. / 57 kg
Gallons to Overflow 71 gal. / 269 L
Gallons to Operate 57 gal. / 216 L
electRIcal SPecIfIcatIonS:
Pump .80 HP; 5.5 AMP; 110V
Requirement 15 AMP; 110V, separate circuit
required protected w/ Class A GFCI
•
Comfort Pillow--Oval or Rectangle
• Bolt-On Grab Bars
- White, Biscuit, Chrome, Polished Brass, Gold,
Polished Nickel, Satin Nickel or Oil Rubbed Bronze
•
1.5 kW Inline Maintenance Heater (Pump Options 1, 2, 3)
• Lift & Turn Waste and Overflow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel or Oil Rubbed Bronze
•
Cable Drive Waste and Overflow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel, Oil Rubbed Bronze or
Color Matched (Bone, White and Biscuit Only)
• Factory Installed Rigid ABS Tile Flange
•
Optional Pump Location
• Color Matched Acrylic Skirt
All acrylic colors featured by Aquatic match the
industry’s leading fixture manufacturers.
oPtIonal equIPMent:
fax-on-Demand
Document # 1273
SymPhONy SERIES
Model # ai7242SY / ai7242SYTo (Tub only)
StanDaRD equIPMent:
42 1/4”
Deck Width
1 3/4”
71 1/4”
18 1/4”
20 1/4”
42 1/4”
16 1/4”
6 Hydrotherapy Jets including:
- 2 Spinning Back Jets
- 4 Directional Jets
aquatic quality features:
- .80 HP Run-Dry Pump
- Bath-Side On/Off Air Button
- ”Quiet Pad”
Anti-Vibration Pump Mount for Quiet Pump Operation
- Heat-bent Rigid PVC Piping for Optimum Sanitary Conditions
- Color Matched Trim and Jets (Select Colors)
- Slip Resistant Floor
- Durable, easy to Clean, Lucite® Cast Acrylic Surface
- Available in 8 Standard No-Charge Colors
ul & IaPMo listed, factory tested
limited 10 Year Warranty
2 5/8”
8 3/4”
25”
26 1/2”
49”
3
2
1
