SPECIFICATIONS:
The manufacturer accepts a 1/4” variance. There are variations on each tub and specifications are subject to change as we improve upon our product as required. The dimensions needed for site preparation
and structure building should be measured from the tub; Aquatic Industries, Inc. assumes no responsibility for preparatory work.
www.aquaticwhirlpools.com 800.555.5324
March 2008

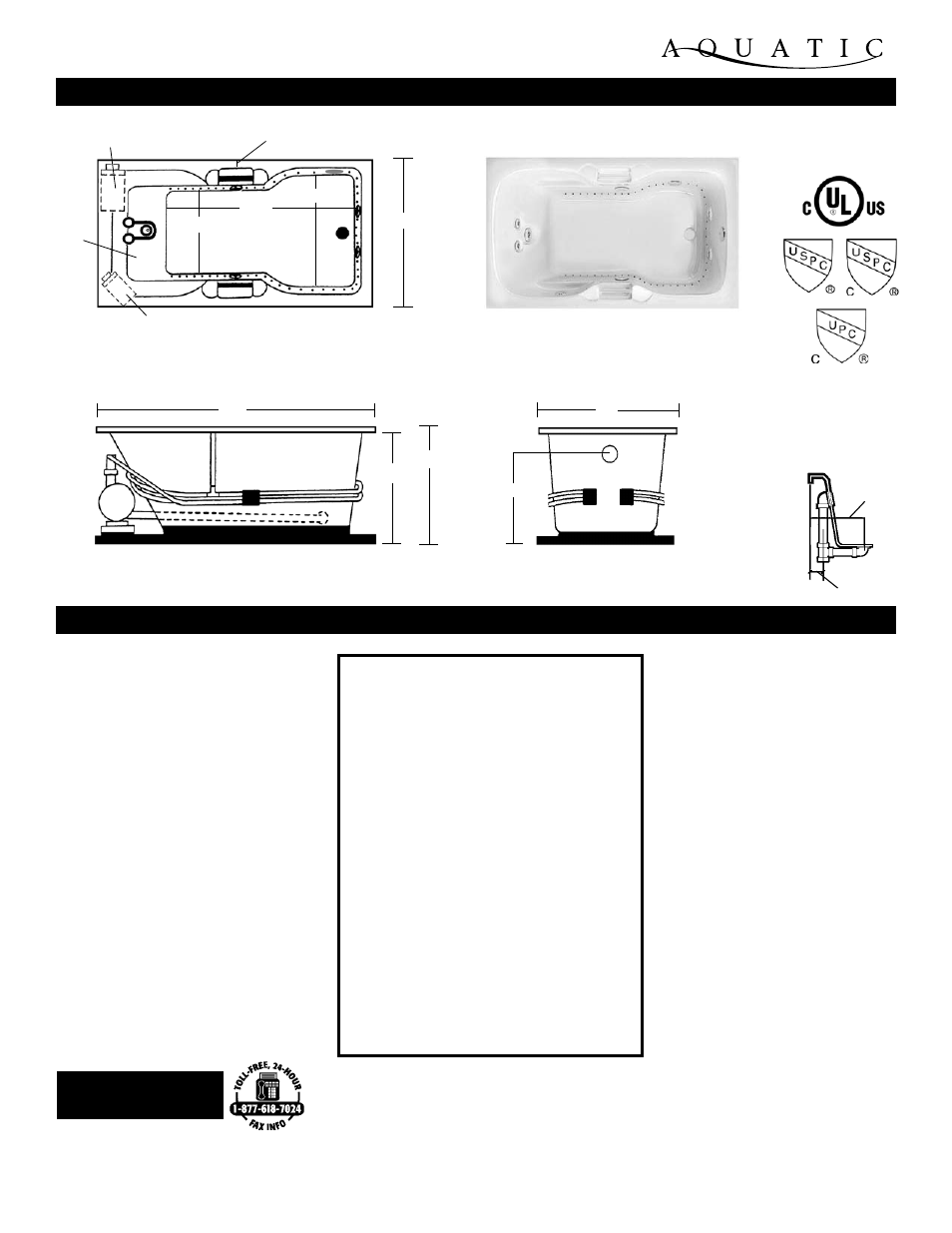

Rough-In Plumbing
Measurements
luxEAIr SErIES
Model # ai30lux6036
luxEAIr 30
GeneRal SPecIfIcatIonS:
Tub Size 60” x 36” x 24 1/4”
152 cm x 91.5 cm x 62 cm
Bathing Well 35” long
23” wide
21 1/4” interior depth
Shipping Weight 251 lbs. / 114 kg
Tub Weight Filled 811 lbs. / 368 kg
Weight w/Equipment 188 lbs. / 85 kg
Gallons to Overflow 75 gal. / 284 L
Gallons to Operate 56 gal. / 212 L
electRIcal SPecIfIcatIonS:
Pump 1.75 HP; 12 AMP; 110V
Inline Heater 1.5 kW; 12.5 AMP; 110V
Requirement 1-15 AMP 2 pole, separate circuit
required protected with Class A GFCI
Blower 1 HP; 10.5 AMP; 110V
Requirement 1-15 AMP 1 pole, separate circuit
required protected with Class A GFCI
This whirlpool will need to be hard wired to the breaker box.
Three outlets will be supplied on the whirlpool.
oPtIonal equIPMent:
• Chromatherapy LED Lighting
•
Comfort Pillow - Oval or Rectangle
•
Jet Finish
- Chrome, Polished Brass, Gold, Polished Nickel
or Satin Nickel
• Grab Bar
- White, Biscuit, Chrome, Polished Brass, Gold,
Polished Nickel, Satin Nickel or Oil Rubbed Bronze
•
Lift & Turn Waste and Overflow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel or Oil Rubbed Bronze
•
Cable Drive Waste and Overflow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel, Oil Rubbed Bronze or Color Matched
(Bone, White and Biscuit Only)
• Hand Held Jet - Chrome or Polished Brass
•
Factory Installed Rigid ABS Tile Flange
• Color Matched Acrylic Skirt
•
Premium Colors
All acrylic colors featured by Aquatic match the
industry’s leading fixture manufacturers.
StandaRd equIPMent:
fax-on-demand
document # 1214
no alternate pump/blower locations available.
36”
Pump
Deck Width
1 3/4”
Blower
18”
35”
23”
60”
22 1/2”
24 1/4”
36”
20”
7 Hydrotherapy Jets including:
- 4 Full Size Pressure-Flo Hydrotherapy Jets
- 2 StressEaz Neck & Shoulder Therapy Jets
- 1 Recessed Rotary Massage Jet
air Bath System:
- 48 Air Jets
- 1 HP Variable Speed Air Blower with 20-Minute Timer
- Electronic Control Panel
- 3 Massage Settings: Constant, Wave and Pulse
- Automatic Purge and Dry Cycle
- 600 Watt Air Heating System
aquatic quality features:
- 1.75 HP Run-Dry Pump with 20-Minute Timer
- 1.5 kW Inline Maintenance Heater
- ”Quiet Pad”
Anti-Vibration Pump Mount for Quiet Pump Operation
- 2 Color Matched Grab Bars
- 2 Arm Rests
- Slip Resistant Floor
- Pre-leveled ABS Support Base
- Heat-bent Rigid PVC Piping for Optimum Sanitary Conditions
- Durable, Easy to Clean, Lucite® Cast Acrylic Surface
- Available in 8 Standard No-Charge Colors
ul & IaPMo listed, factory tested
limited lifetime Warranty
2 1/4”
10 1/2”
Back Angle
37º
