SPECIFICATIONS:
The manufacturer accepts a 1/4” variance. There are variations on each tub and specifications are subject to change as we improve upon our product as required. The dimensions needed for site preparation
and structure building should be measured from the tub; Aquatic Industries, Inc. assumes no responsibility for preparatory work.
www.aquaticwhirlpools.com 800.555.5324
October 2008

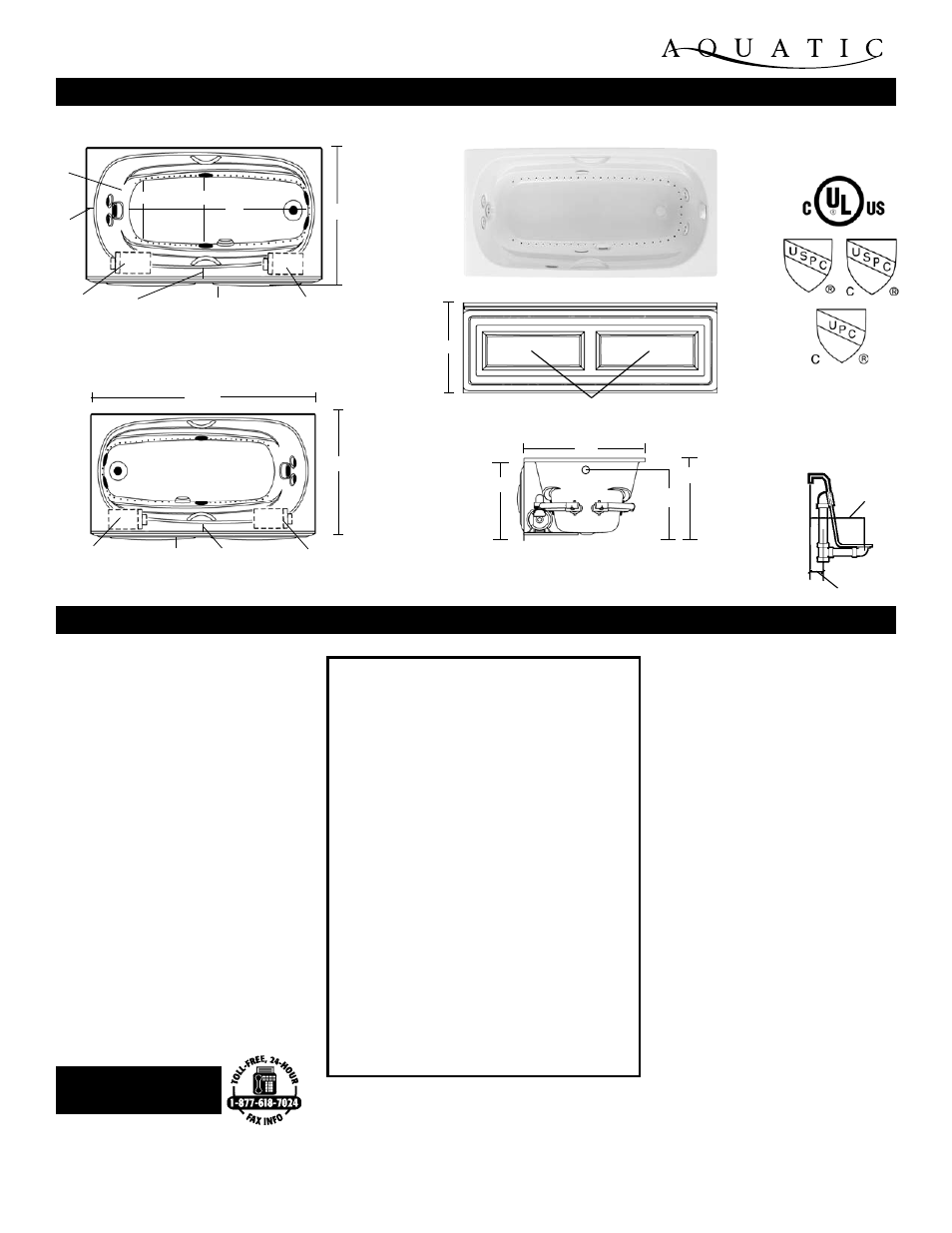

Rough-In Plumbing
Measurements
LUXEAIR 32
LUXEAIR SERIES
Model # ai32lUX6032isl (left drain) / ai32lUX6032isr (riGHt) drain)
GeneRal SPecIfIcatIonS:
Tub Size 59 3/4” x 34 1/2” x 25 3/4”
152 cm x 88 cm x 65 cm
Bathing Well 44” long
17” wide
21 1/4” interior depth
Shipping Weight 292 lbs. / 132 kg
Tub Weight Filled 786 lbs. / 357 kg
Weight w/Equipment 213 lbs. / 97 kg
Gallons to Overflow 69 gal. / 261 L
Gallons to Operate 50 gal. / 189 L
electRIcal SPecIfIcatIonS:
Pump 1.75HP; 12 AMP; 110V
Inline Heater 1.5 kW; 12.5 AMP; 110V
Requirement 1-15 AMP 2 pole, separate circuit
required protected with Class A GFCI
Blower 1 HP; 10.5 AMP; 110V
Requirement 1-15 AMP 1 pole, separate circuit
required protected with Class A GFCI
This whirlpool will need to be hard wired to the breaker box.
Three outlets will be supplied on the whirlpool.
oPtIonal equIPMent:
• Chromatherapy LED Lighting
•
Comfort Pillow - Oval or Rectangle
• Jet Finish
- Chrome, Polished Brass, Gold Tone, Polished Nickel
or Satin Nickel
•
Bolt on Grab Bars
- White, Biscuit, Chrome, Polished Brass, Gold,
Polished Nickel, Satin Nickel or Oil Rubbed Bronze
•
Lift & Turn Waste and Overflow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel or Oil Rubbed Bronze
•
Cable Drive Waste and Overflow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel, Oil Rubbed Bronze or Color Matched
(Bone, White and Biscuit Only)
•
Hand Held Jet - Chrome or Polished Brass
•
Premium Colors
All acrylic colors featured by Aquatic match the
industry’s leading fixture manufacturers.
fax-on-Demand
Document # 1157
7 Hydrotherapy Jets including:
- 4 Full Size Pressure-Flo Hydrotherapy Jets
- 2 StressEaz Neck & Shoulder Therapy Jets
- 1 Recessed Rotary Massage Jet
air Bath System:
- 53 Air Jets
- 1 HP Variable Speed Air Blower with 20-Minute Timer
- Electronic Control Panel
- 3 Massage Settings: Constant, Wave and Pulse
- Automatic Purge and Dry Cycle
- 600 Watt Air Heating System
aquatic quality features:
- 1.75 HP Run-Dry Pump with 20-Minute Timer
- 1.5 kW Inline Maintenance Heater
- ”Quiet Pad”
Anti-Vibration Pump Mount for Quiet Pump Operation
- Color Matched Integral Skirt with Removable Access Panels
- Integrally Molded Tile Flange
- 2 Bolt-On Grab Bars Color Matched (White & Biscuit) or Chrome
- 2 Arm Rests
- Slip Resistant Floor
- Heat-bent Rigid PVC Piping for Optimum Sanitary Conditions
- Durable, Easy to Clean, Lucite® Cast Acrylic Surface
- Available in 8 Standard No-Charge Colors
ul & IaPMo listed, factory tested
limited lifetime Warranty
StanDaRD equIPMent:
Right Drain Model
34 1/2”
17”
Deck Width 1 3/4”
Skirt Side
16 1/2”
44” Deck
Width
1 1/2”
Blower Pump
left Drain Model
Deck Width 1 3/4” Skirt Side Blower
Pump
32”
59 3/4”
24 3/4”
25 3/4”
21 1/4”
32”
Removable access Panels
25 3/4”
1 5/8”
9 1/4”
Back Angle
19º
no alternate pump/blower locations available.
note: Requires a mortar base.
aBS Support Base not included.
