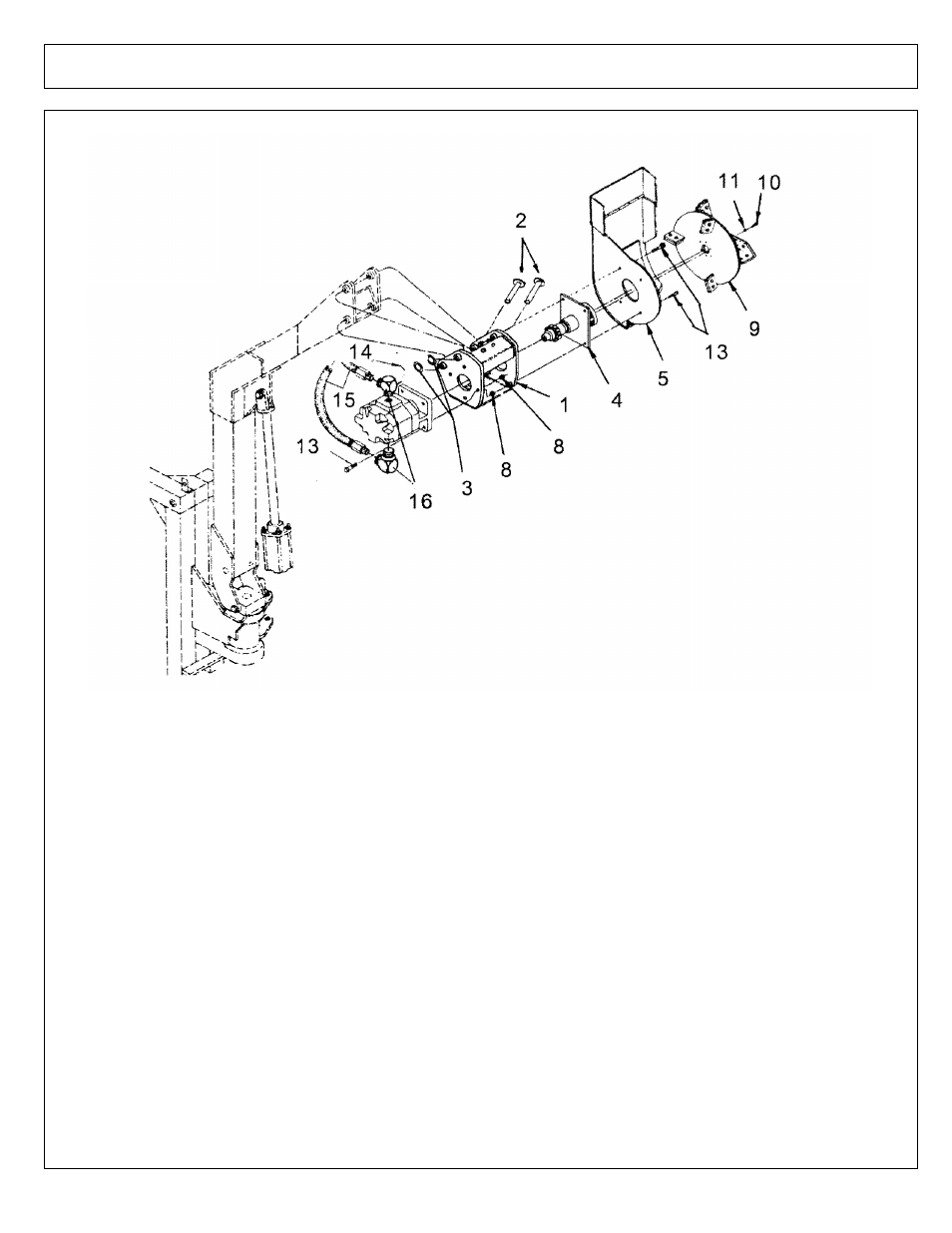

DITCHER - HEAD ASY - PN 02215413

ITEM

PART NO. QTY.

DESCRIPTION

02215413

-

DITCHER HEAD ASY. COMPLETE

1

02975249

1

DITCHER MOUNT WLD`MT

2

02958929

2

DITCHER PIN

3

00749185

2

WASHER

4

02872300

1

SPINDLE ASY.

5

02873900

1

BLADE HOUSING ASY.

8

00037200

7

LOCKNUT

9

02875301

1

BLADE HEAD ASY.

10

02891800

6

BOLT

11

00001300

6

LOCKWASHER

12

02870100

1

MOTOR ASY.

13

02880900

8

BOLT

14

00610600

2

ROLL PIN

15

02961054

2

HOSE

16

02958920

2

ELBOW
