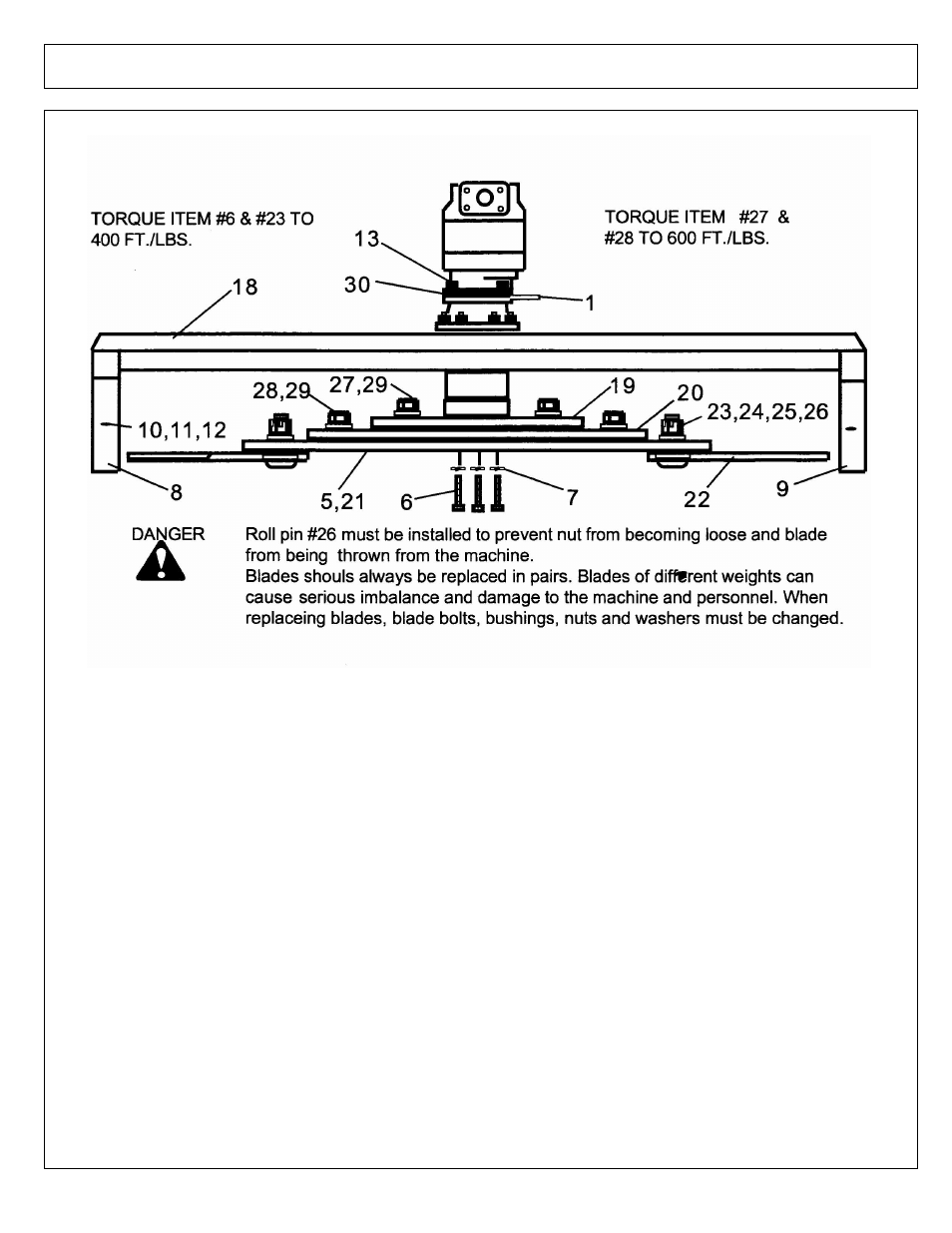

60 IN - SQ HEAD SPINDLE - MOTOR & BLADE BAR
ITEM PART NO. QTY. DESCRIPTION
1 02962272 1 SPINDLE & MOTOR ASY. W/ FITTINGS (HIGH SPEED) S/N 03260 & 03501 & ABOVE
02960553B 1 SPINDLE HSG & SPINDLE ASY.
02962112 1 MOTOR (HIGH SPEED) S/N 03260 -03400 & 03501 - ABOVE
02961732 1 MOTOR ASY, S/N 03259 - BELOW & 03401 - 03500
5 02782300 1 BLADE BAR ASY, (ITEM 19 THRU 29)
6 02782000 4 BOLT, (TORQUE TO 400 FT. LBS.)
7 00003901 4 NUT
8 02957331 1 SKID SHOE, RH (41-1/2" LONG)
9 02957332 1 SKID SHOE, LH (61-1/2" LONG)
10 00059700 7 BOLT
11 00015800 7 LOCKNUT
12 00011100 7 WASHER
13 02892000 4 BOLT
19 02781600 1 TOP LEAF
20 02781700 1 MIDDLE LEAF
21 02781800 1 BOTTOM LEAF
22 02761500 1 BLADE SET
23 02782900 2 BLADE BOLT
