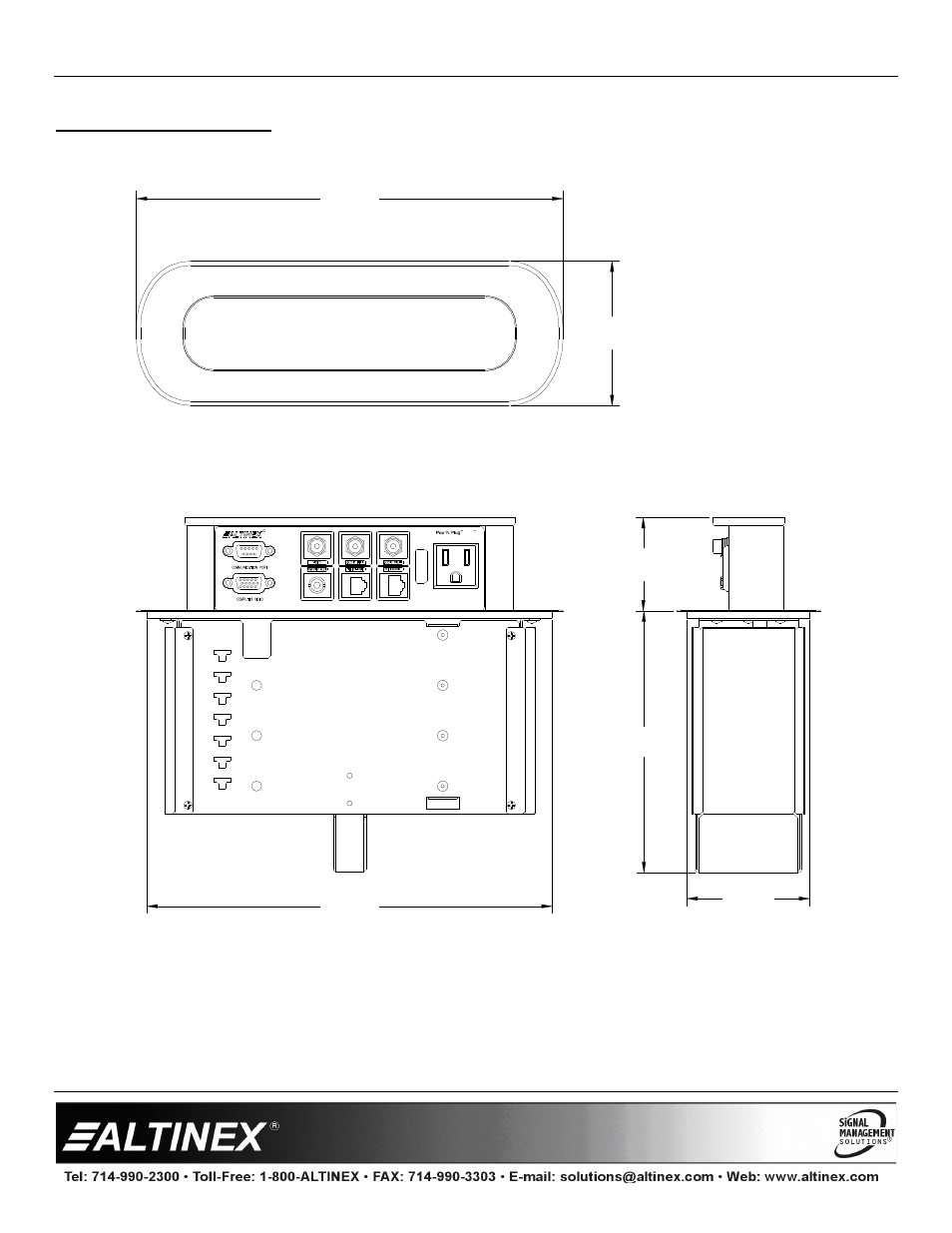

DIAGRAM 2: DIMENSIONS
The PNP300 faceplate is shown here.
R
PNP300
Slim
SIDE VIEW
(OPEN POSITION)
FRONT VIEW
(OPEN POSITION)
TOP VIEW
10.033"
[255mm]
3.390"
[86mm]
9.530"
[242mm]
2.190"
[56mm]
6.140"
[156mm]
2.890"
[73mm]
