31

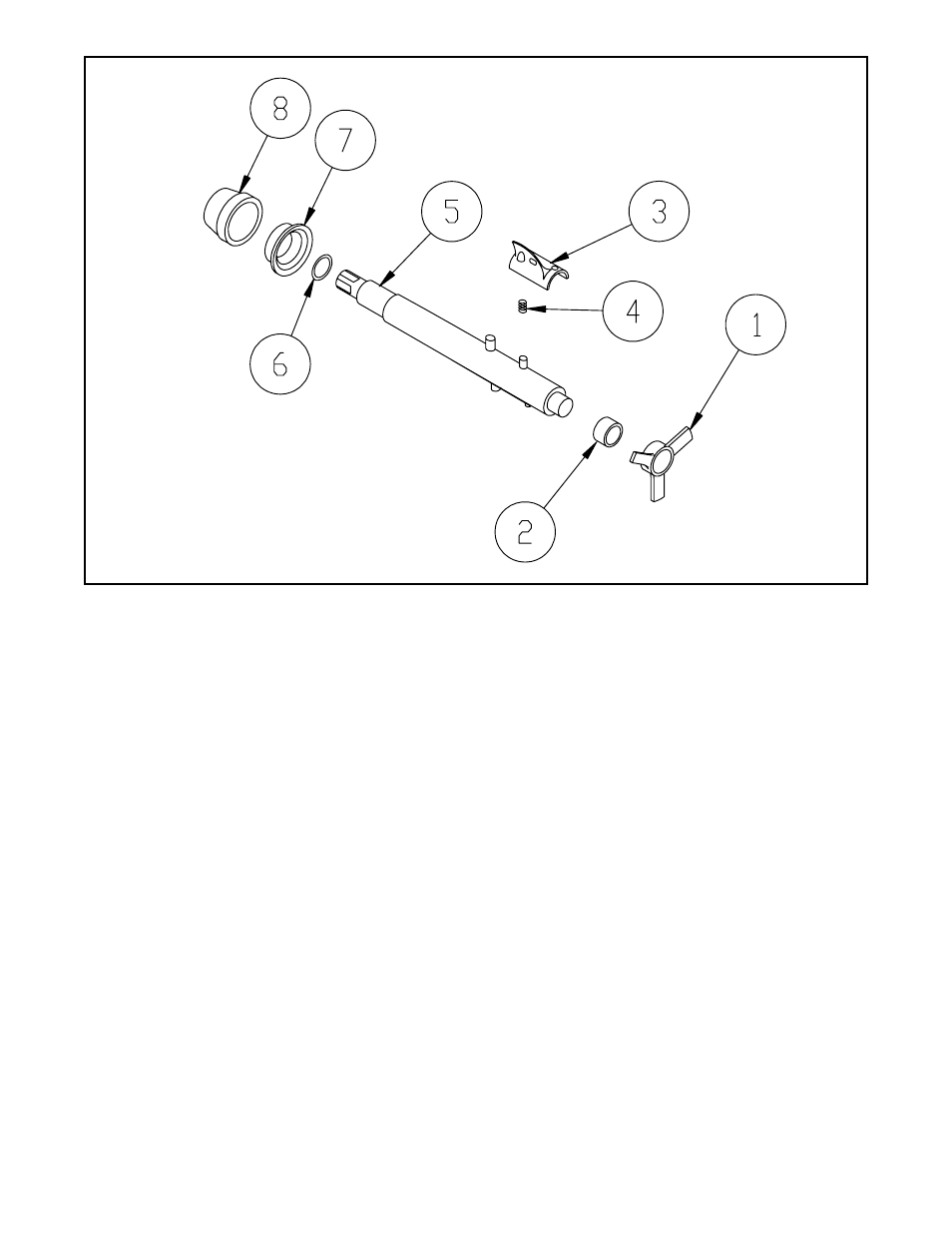

AUGER PARTS
Drawing Part
Index No. Number Qty. Description
1 2104552 1 Auger Front Support
2 149003 1 Front Bearing
3 381804 6 Plastic Flight
4 694255 6 Spring
5 4151178 1 Auger
6 624678 1 Rear Seal O-ring
7 1151859 1 Rear Seal Adaptor
8 667868 1 Rear Seal
MISCELLANEOUS PARTS
Description Part No.
Haynes Spray 12 oz.(340 grams) -------------------- 508017
Petro-Gel Tube 4 oz. (113 grams) -------------------- 508135
Spline Lubricant 2 oz. (57 grams) -------------------- 508048
Brush 4"x 8"x16" (10cm x 20cm x 40,5cm) ------- 208135
Brush 2.5"x 4"x12" (6,5cm x 10cm x 30,5cm) ---- 208146
Brush .25"x 4"x14" (,6cm x 10cm x 35,5cm) ----- 208380
Brush 1"x3.5"x18" (2,5cm x 9cm x 45,5cm) ------ 208465
Drip Tray --------------------------------------------------- 744273
Drip Tray Grid --------------------------------------------- 417006
