49

PPC-155T User Manual

Appendix A

D

isassembly

18.

Disconnect the CD-ROM connector.

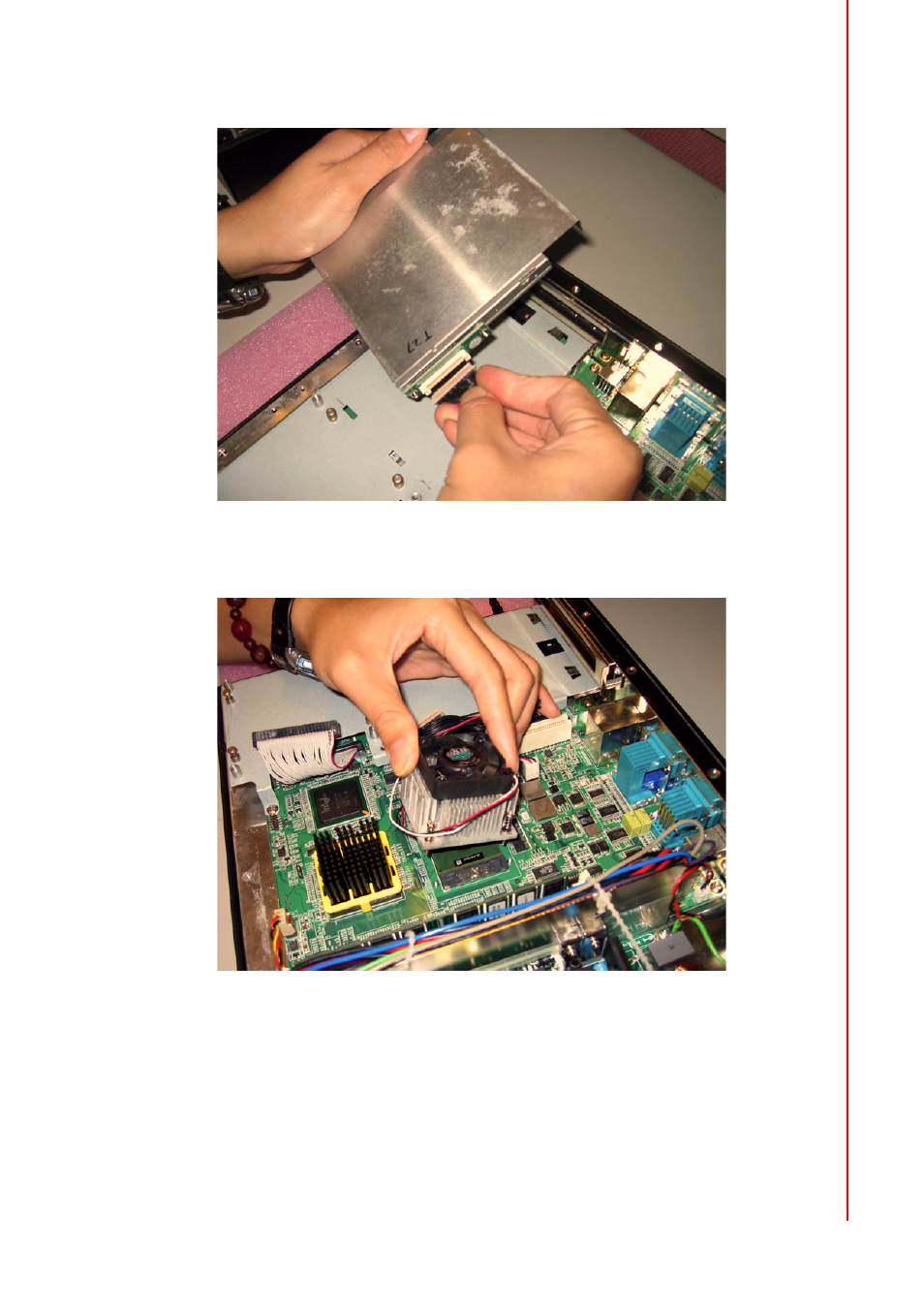

Figure A.18 Disconnecting the CD-ROM connector

19.

Unfasten the four screws on the CPU module and remove it.

Figure A.19 Removing the CPU module
