PPC-155T User Manual
14
Chapter 3
Using the Panel PC
3.1
Introduction
This chapter describes basic features and procedures for using the panel PC. Topics
covered include: the floppy drive, CD-ROM drive, I/O ports and the touchscreen.
3.2
CD-ROM Drive (optional )
It is possible to use the USB external optical device, or order the PPC-155T, which is
equipped with slim optical devices.
To insert a CD-ROM disc, press the eject button on the CD-ROM drive.
To eject a CD-ROM disc, first ensure that the drive activity light is not active. Then
press the eject button on the drive.

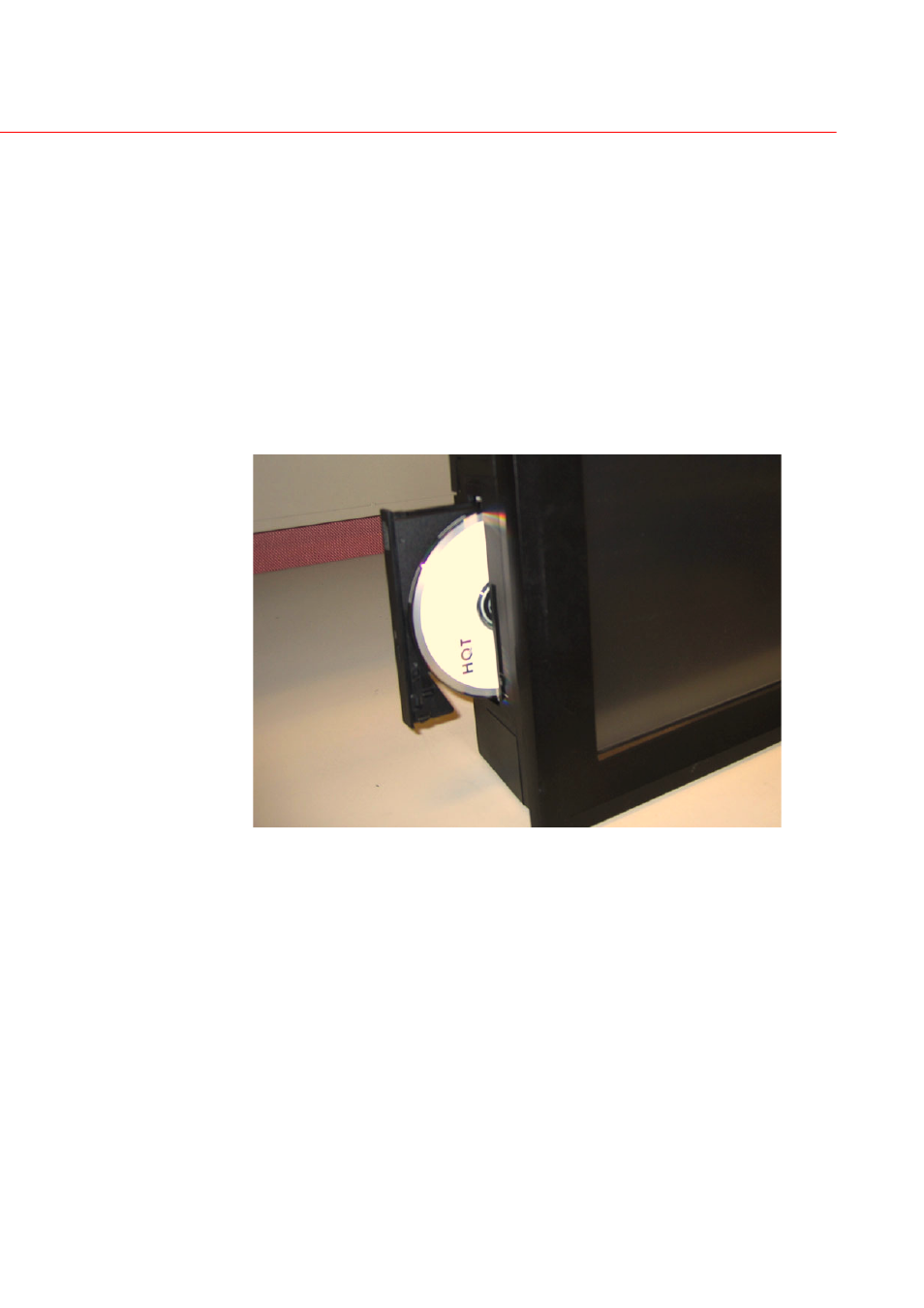

Figure 3.1 Inserting and ejecting a CD-ROM
