PPC-155T User Manual

42

4.

The PPC without the rear cover.

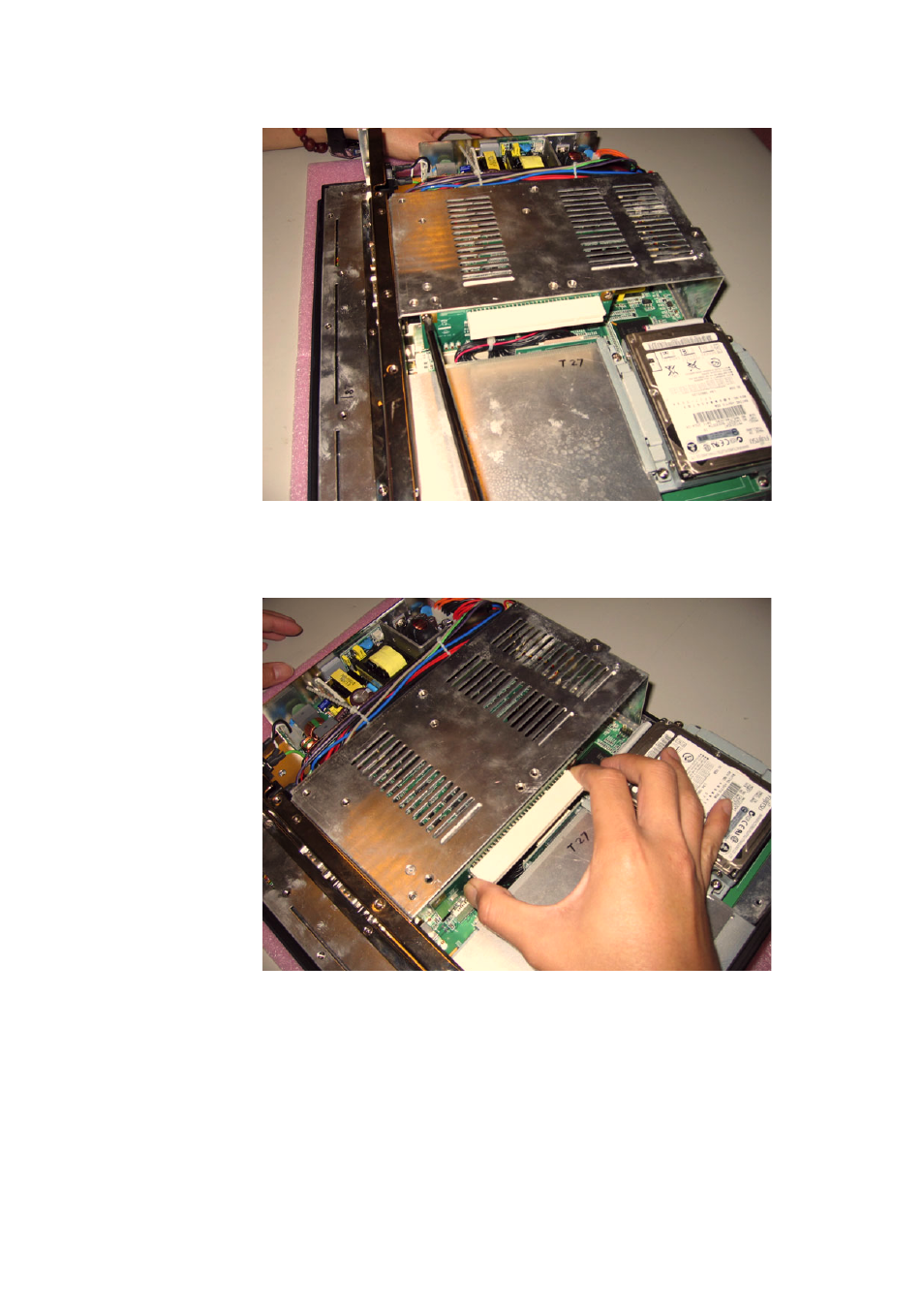

Figure A.4 The PPC without the rear cover

5.

Remove the PCI riser card.

Figure A.5 Removing the PCI riser card
