72032 Lighted Canopy Assembly Instructions

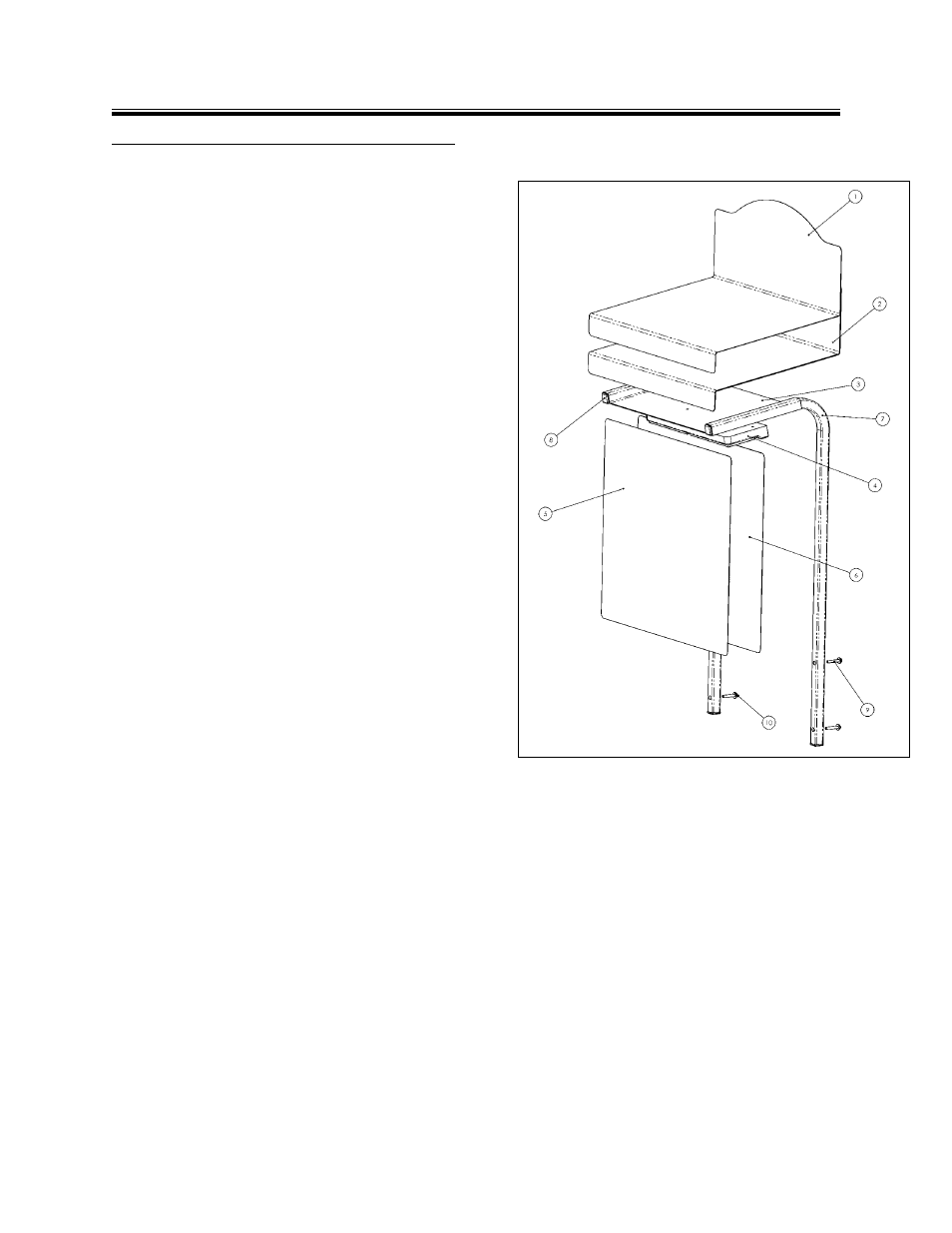

Parts List:

1. Canopy Decal, Not Shown
2. Canopy
3. Light Bracket (Assembled to light and

canopy)

4. Halogen Light (Assembled to Bracket)
5. Menu Board Decal, Not Shown
6. Menu Board
7. Posts (2)
8. Mounting bracket (Assembled to menu

board, 4 places)

9. Post End Caps, (4) (Assembled to Posts)
10. Bolt, ¼” x 20 x 1.5”, (4)
11. Washer, ¼”, (4)

Assembly:

1. Assemble posts to back of warmer unit

with bolts and washers. Tighten finger
tight only.

2. Make sure there is no grease, oil or dirt

on the posts. Remove backing from
double sided tape from the inside of the
light bracket channels (2 places). Mount
canopy assembly to posts by pressing
bracket down over the posts. Position
canopy so front edge is closest to the post
end caps.

3. Remove the backing from the double

sided tape on the menu board. Position
menu board approximately 1” (25 mm)
above top edge of warmer. Press firmly
into place.

4. Tighten bolts from step #1 with wrench.

17784 3/03
