Page 12 Installation Instructions

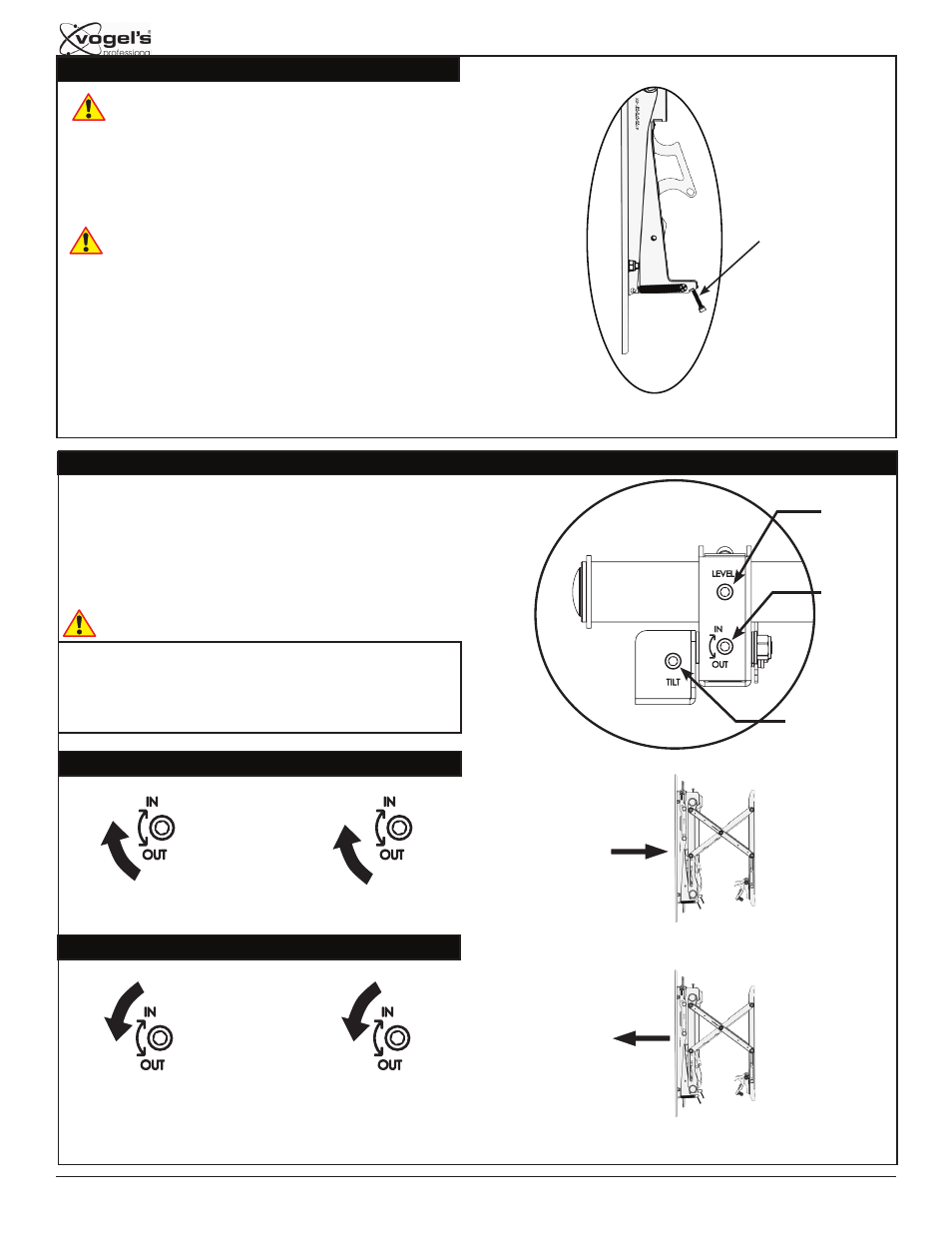

Locking Safety Screw Installation
The locking safety screws keep the flat-panel from
being accidently dislodged from the PFW 6875.
1) Locate the pre-installed security locking safety
screw at the bottom of each of the mounting
brackets.
2) Use the Allen key (supplied) to tighten the locking
safety screw.
Do not overtighten the locking safety screws.
Pre-installed Security
Locking Safety Screw
(1 per Bracket)
Proceed to the “Post-Installation Adjustments” below.
Post-Installation Adjustments
The PFW 6875 has a set of post-installation
adjustments on each mounting bracket (Figure 1).
Use Allen key (supplied) to fine-tune adjust.
Make sure the locking safety screws are loosened
before making adjustments.
Move Inward
Left Control Right Control
Move Outward
Left Control Right Control
Figure 1
See Note
See Note
See Note
Note: Screws have a limited travel adjustment.
Do not overtighten or over adjust the screw to
avoid damage to threaded holes.
