PFW 6875
Page 10 Installation Instructions

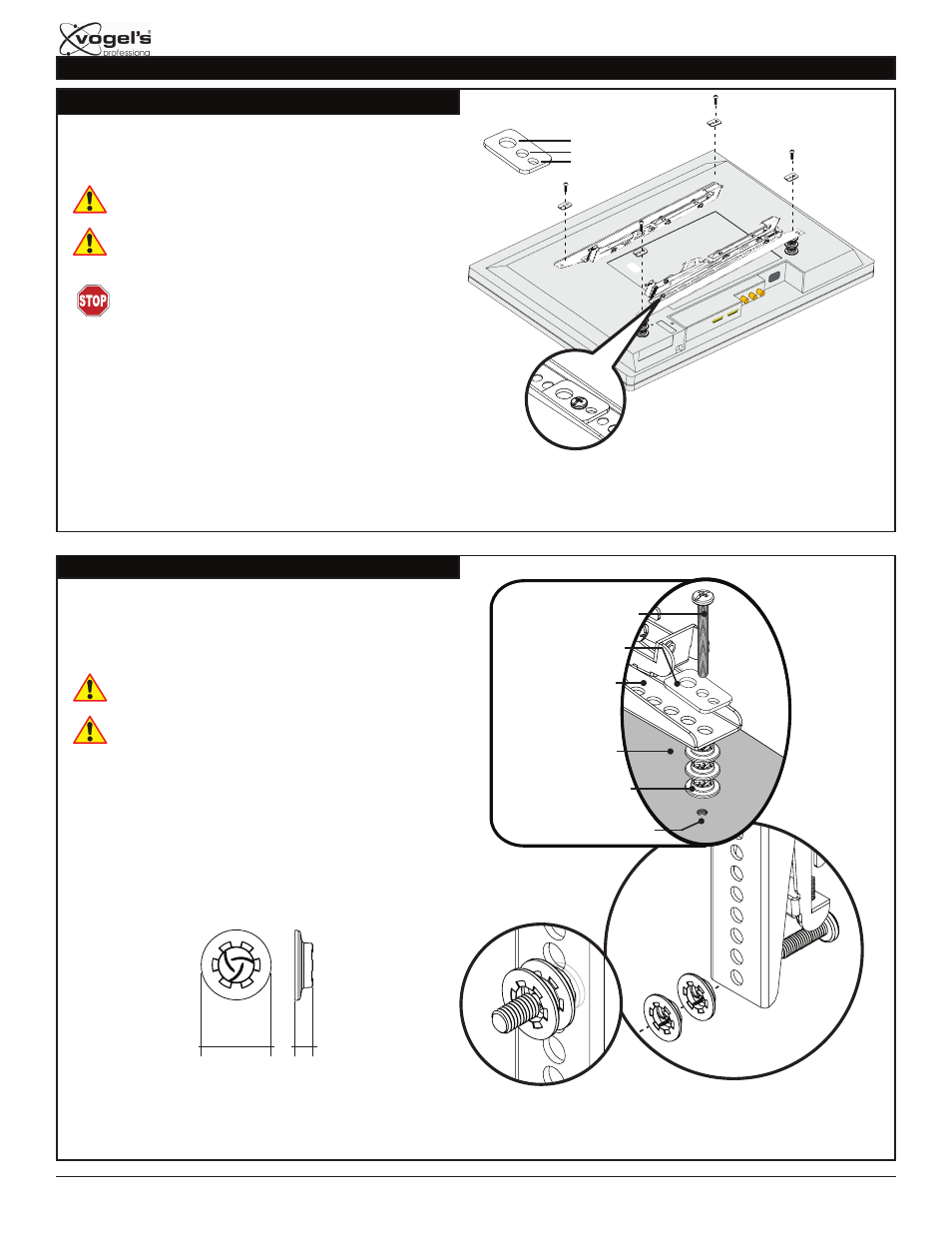

Universal Washer Installation
Universal Washers are designed to accommodate the
various M4, M5, M6 and M8 hole sizes required by flat-
panels.
Do not place excessive pressure on the back of
the flat-panel, as this may damage your flat-panel.
The Universal Washer must be installed between
the head of the mounting screw and the mounting
bracket as shown.
Does your flat-panel have:
●
Recessed mount points?
●
Uneven mount points?
●
A curved back?
●
Any obstruction near the mount point?
If Yes, you must install Universal Spacers. Remove the
mounting brackets, Universal Washers, and mounting
screws from the back of the flat-panel. Proceed to the
“Universal Spacer Installation” section.
If No, skip to the “Attaching the Mounting Bracket
to the Flat-Panel” section.
Universal Spacer Installation
Vogel's Spacers allow you to attach the mounting
bracket to flat-panels which have recessed or uneven
mount points. Each Universal Spacer adds ¼˝ to the
distance between the mounting bracket and your flat-
panel.
The Universal Spacers must be stacked and
oriented as shown.
The Universal Spacers must only be installed
between the mounting bracket and your flat-panel.
Proceed to the “Attaching the Mounting Bracket to
the Flat-Panel” section.
M8
M5, M6
M4
1˝ ¼˝
Installing the Mounting Bracket (cont’d)
Flat-Panel
Universal Washer
Universal Spacer
Mounting Bracket
Mount Point
Mounting Screw
The Universal Spacers
Fit M4, M5, M6 and M8 screw sizes.
