AXIS 2420 User’s Manual Checking The Hardware Inventory 11
Mounting the AXIS 2420
The AXIS 2420 is supplied without a mounting assembly. Screw holes for attaching the
camera to an assembly are provided on both the top and bottom surfaces of the unit, for
easy installation on a wall or from a ceiling.
The screw hole has an internal dimension of 1/4" UNC.
The AXIS 2420 is also suitable for outdoor use, but it must be mounted in a weatherproof
enclosure and must be equipped with a DC-Iris lens. If these conditions are not met when
using the camera outdoors, the product warranty will be void.
Checking The Hardware Inventory
Check the items supplied with your AXIS 2420 against the list below and contact your
dealer if you find anything is missing or damaged.
Item Title/Variants Part Number Item Title/Variants Part Number
Network Camera AXIS 2420 (PAL) 0127-001-01 Power Supply
(PS-D) Europe 14233
AXIS 2420 (NTSC) 0127-011-01 UK 14234
Network Camera with Lens AXIS 2420 W/Lens (PAL) 0127-101-01 Australia 14255
AXIS 2420 W/Lens (NTSC) 0127-111-01 USA 14253
Null Modem Cable - 16954 Japan 14254
DC-Iris Connector 4-pin male 18043 Extension
Cable for PS 3.3 meter 15187
This Document AXIS 2420 User’s Manual
v2.0 18990 Terminal
Connectors x 2 16817
Disk media AXIS Network Camera CD v2.0 (or later) Warranty
Document - 18640

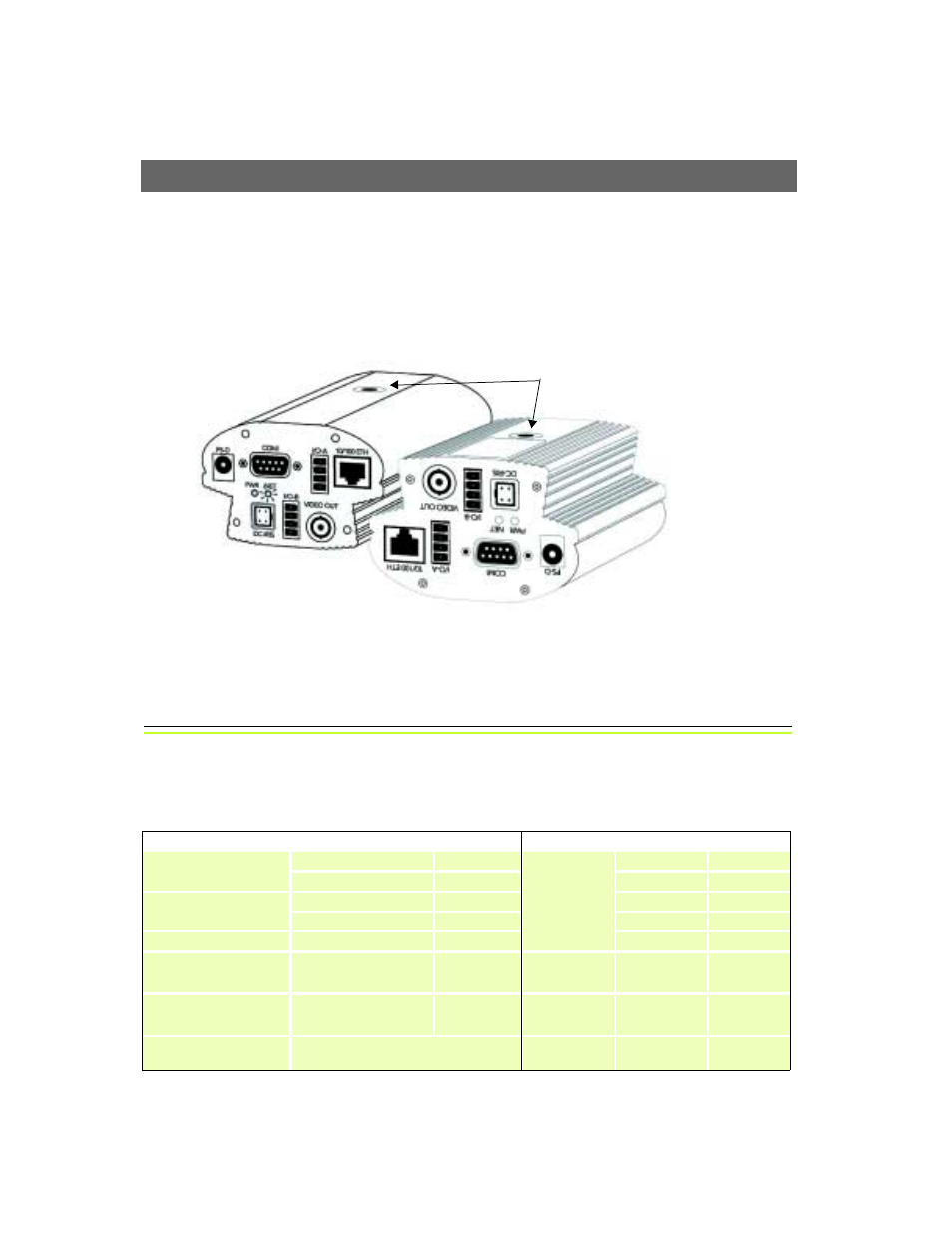

Screw holes on top and base.
