SECTION 2: RECEIVING INSPECTION
2.1 Unpacking
Prior to and during unpacking the cooling unit,
visually inspect it to determine if any damage has
occurred during shipping. Make sure that it does not
contain any loose components. Before discarding
any packaging materials: Look for loose parts, dented
or scratched panels or fluids.
If any damage is noted it shall be reported
immediately to the delivering carrier and a claim
should be filed with them. Pfannenberg cannot
accept responsibility for freight damage that may
occur; we will assist you in any way possible if the
need arises to file a claim.
In case of a warranty claim, the following information
is required: exact details of the fault (including
photographs, if possible), the cooling unit part
number and serial number are required.
WARNING!
Burrs caused by production may be present
on the metal edges of the cooling unit. Always
wear protective gloves when carrying out
installation or maintenance work.
2.2 Included Items
The following items should be included:
Cooling unit
Mounting cutout
Manual
Technical Data Sheet
DTS 3000 Series accessory pack typically includes:
• Sealing strips
• Threaded mounting studs
• Mounting bolts, nuts and washers
• Condensate hose
• Door contact connector/jumper

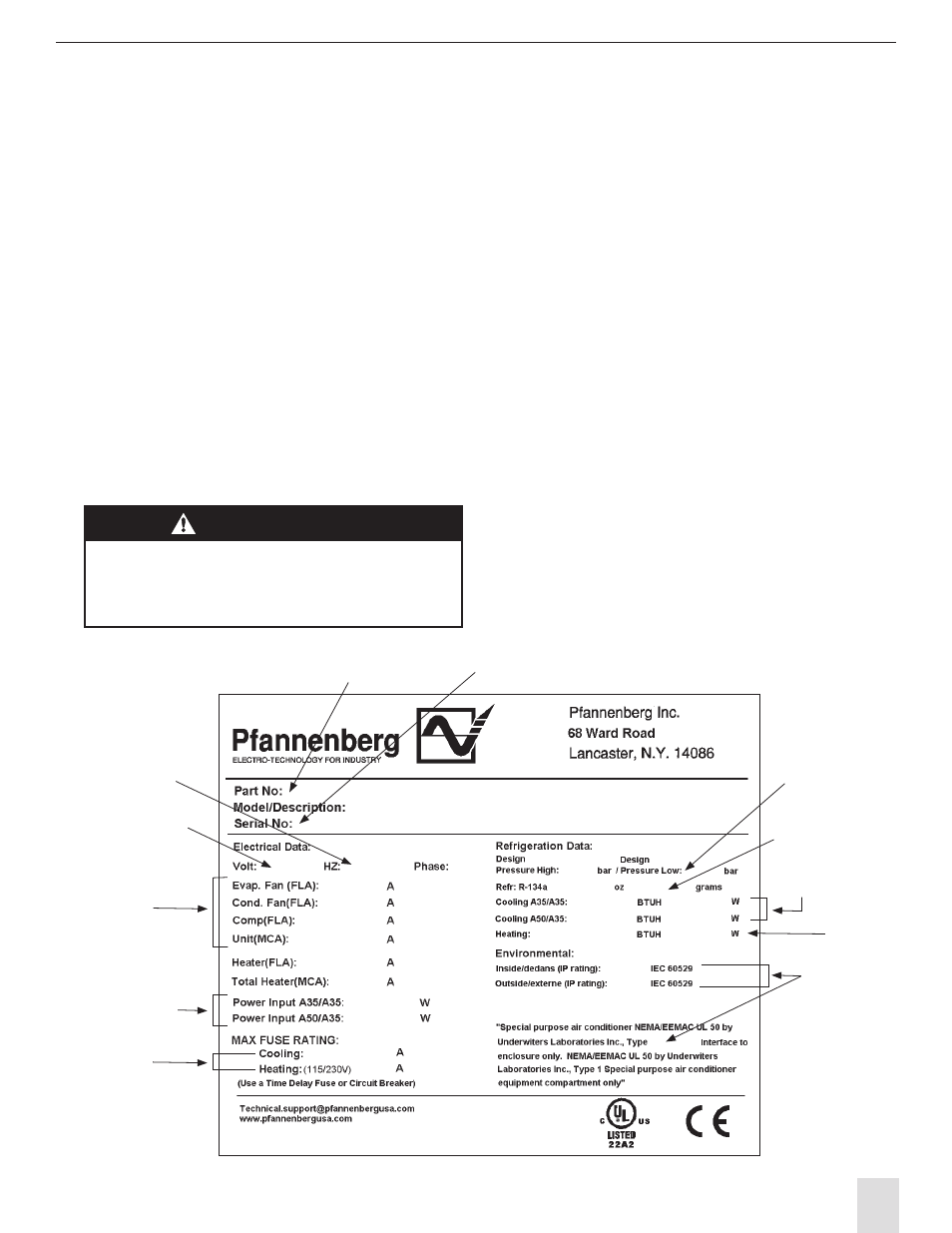

2.3 Review of ID Plate
The ID plate is located on the left side of the
cooling unit. The technical data specific to
the cooling unit is located on the ID plate as
shown below.
Nominal
Voltage
Frequency
Nominal
Current
Power
Consumption
Fusing
Cooling Part #
Serial #
Design
Pressure
Refrigerant
Charge
Cooling
Capacity
Heating
Capacity
Environmental
Conditions
