45

SPECIFICATIONS:

The manufacturer accepts a 1/4” variance. There are variations on each tub and specifications are subject to change as we improve upon our product as required. The dimensions needed for site preparation
and structure building should be measured from the tub; Aquatic Industries, Inc. assumes no responsibility for preparatory work.

www.aquaticwhirlpools.com 800.555.5324

March 2008

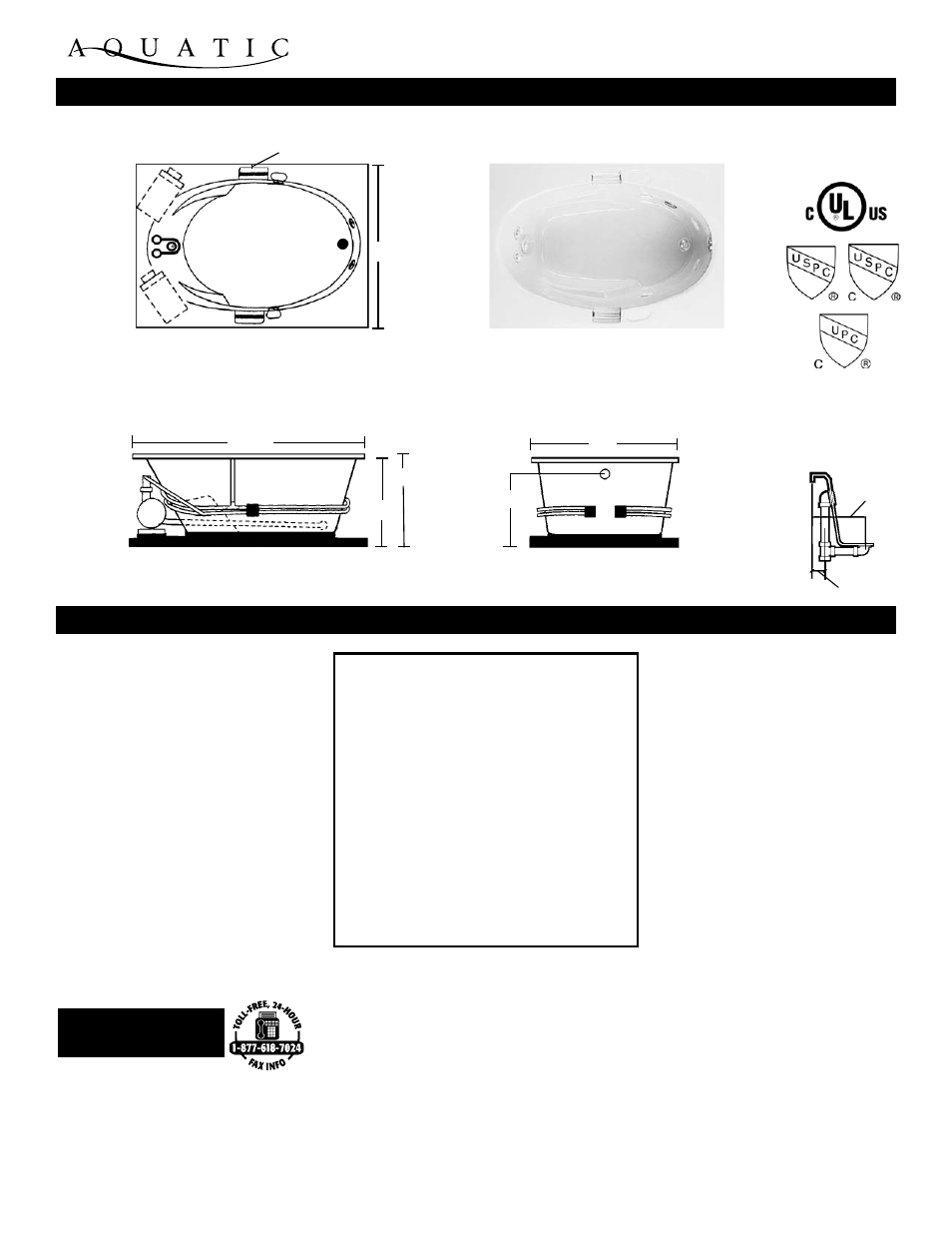

Rough-In Plumbing
Measurements

CArmEl

luxury SErIES

Model #

ai6042d

GeneRal SPecIfIcatIonS:

Tub Size

59 1/2” x 42” x 23”

151 cm x 107 cm x 58 cm

Bathing Well

42” long

24 1/2” wide

22” interior depth

Shipping Weight

193 lbs. / 87 kg

Tub Weight Filled

703 lbs. / 319 kg

Gallons to Overflow 70 gal. / 265 L
Gallons to Operate 51 gal. / 193 L

electRIcal SPecIfIcatIonS:

Pump

1.75 HP; 12 AMP; 110V

Requirement

15 AMP; 110V, separate circuit

required protected w/ Class A GFCI

Optional Heater

1.5 kW; 12.5 AMP; 110V

Requirement

15 AMP; 110V, separate circuit

required protected w/ Class A GFCI

F

Chromatherapy LED Lighting

Comfort Pillow - Oval or Rectangle

Jet Finish

- Chrome, Polished Brass, Gold, Polished Nickel
or Satin Nickel

Grab Bar

- White, Biscuit Chrome, Polished Brass, Gold,
Polished Nickel, Satin Nickel or Oil Rubbed Bronze

1.5 kW Inline Maintenance Heater

Lift & Turn Waste and Overflow

- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel or Oil Rubbed Bronze

Cable Drive Waste and Overflow

- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel, Oil Rubbed Bronze or
Color Matched (Bone, White and Biscuit Only)

Factory Installed Rigid ABS Tile Flange

2 HP, 3-Speed Run-Dry Pump Upgrade

Optional Pump Location

Remote Pump Location

Color Matched Acrylic Skirt

Hand Held Jet - Chrome or Polished Brass

Premium Colors

All acrylic colors featured by Aquatic match the

industry’s leading fixture manufacturers.

oPtIonal equIPMent:

fax-on-Demand

Document # 1032

7 Hydrotherapy Jets including:
- 4 Full Size Pressure-Flo Hydrotherapy Jets
- 2 StressEaz Neck & Shoulder Therapy Jets
- 1 Recessed Rotary Massage Jet
aquatic quality features:
- 1.75 HP Run-Dry Pump with 20-Minute Timer
- Bath-Side On/Off Electronic Button
- ”Quiet Pad”

Anti-Vibration Pump Mount for Quiet Pump Operation

- 2 Color Matched Grab Bars
- 2 Arm Rests
- Slip Resistant Floor
- Pre-leveled ABS Support Base
- Heat-bent Rigid PVC Piping for Optimum Sanitary Conditions
- Durable, Easy to Clean, Lucite® Cast Acrylic Surface
- Available in 8 Standard No-Charge Colors

ul & IaPMo listed, factory tested

limited lifetime Warranty

StanDaRD equIPMent:

18 1/2”

42”

21 1/4”

23”

42”

59 1/2”

Deck Width

1 3/4”

2 1/2”

9 3/16”

2

1
