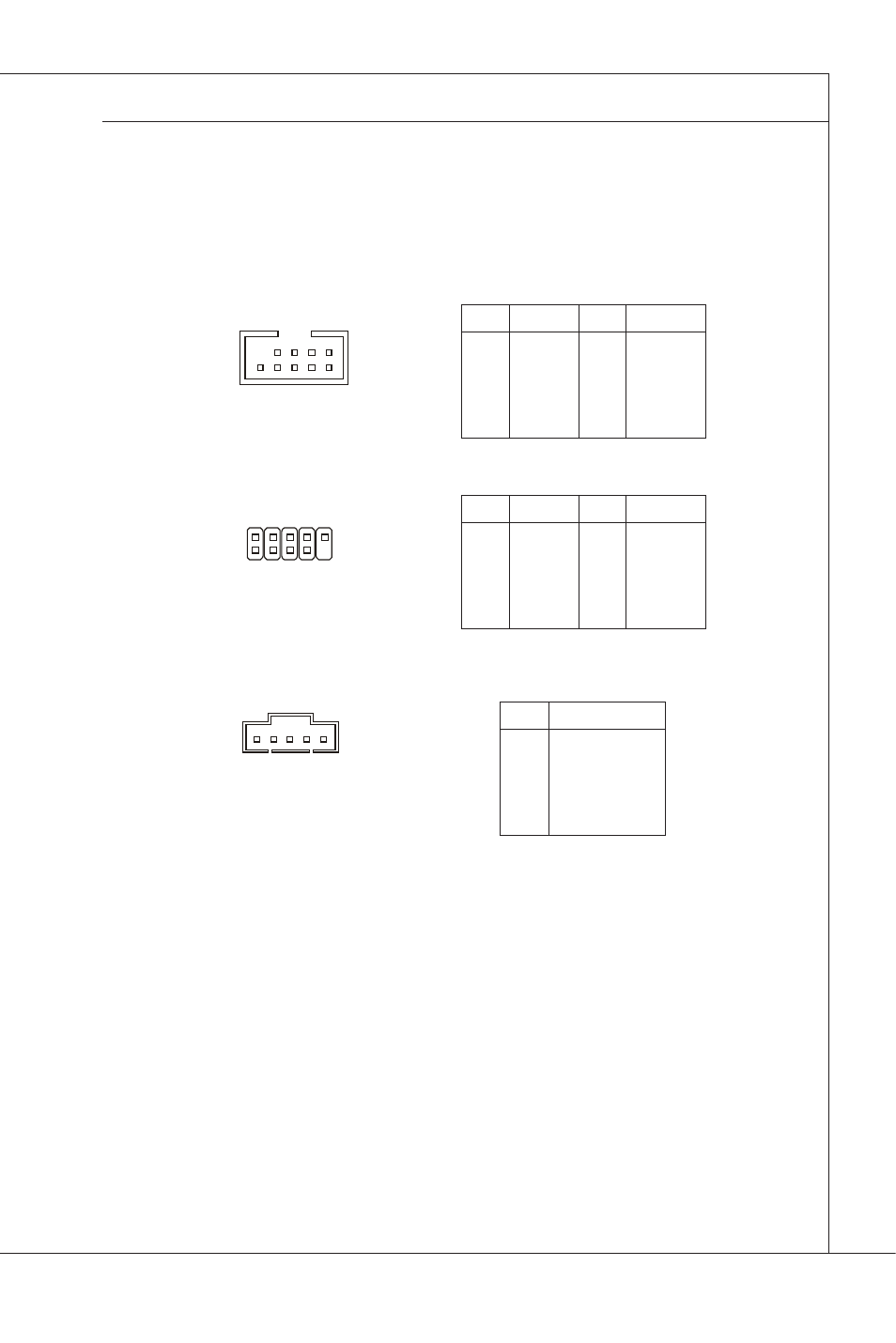

Front USB Connector: JUSB1, JUSB3, JUSB4, JUSB5
This connector, compliant with Intel I/O Connectivity Design Guide, is ideal for
connecting high-speed USB interface peripherals such as USB HDD, digital cam-
eras, MP3 players, printers, modems and the like.
PIN SIGNAL PIN SIGNAL
1
3
5
7
9 VCC
USB0-
USB0+
GND
KEY 2
4
6
8
10 VCC
USB1-
USB1+
GND
NC
1
2
9
10
JUSB1
10
9
2
1
JUSB3
1 5
JUSB4/5
PIN SIGNAL PIN SIGNAL
1
3
5
7
9 VCC
USB0-
USB0+
GND
KEY 2
4
6
8
10 VCC
USB1-
USB1+
GND
NC
PIN SIGNAL
1
2
3
4
5 +5V
USB-
USB+
GND
GND
