3-12
Mainboard Setup
▍
MS-9298
Mainboard Setup
▍
MS-9298

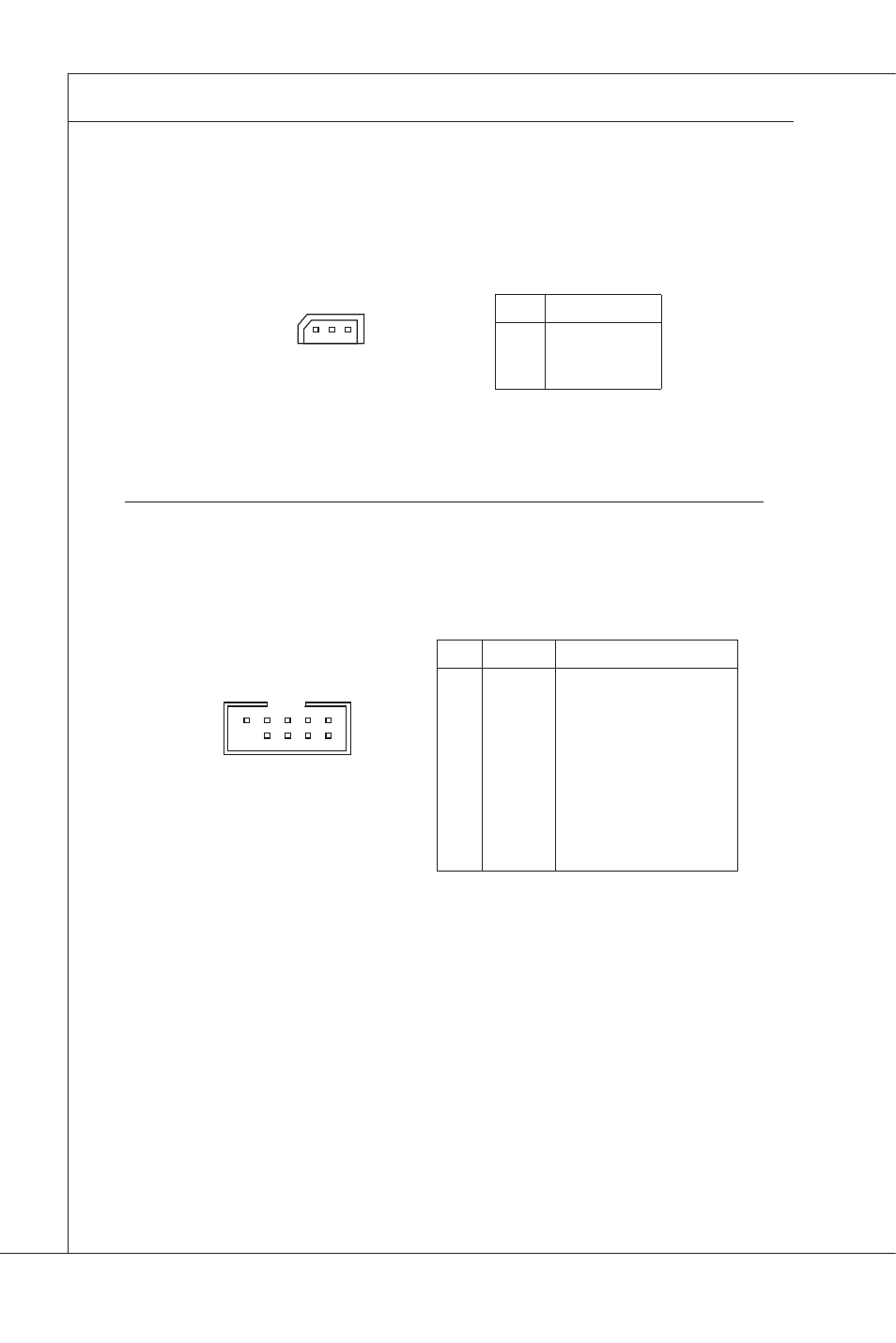

Serial Port Connector: COM1
This connector is a 16550A high speed communications port that sends/receives
16 bytes FIFOs. You can attach a serial device to it through the optional serial
port bracket.
PIN SIGNAL DESCRIPTION
1
2
3
4
5
6
7
8
9
10 DCD
DSR
RXD
RTS
TXD
CTS
DTR
RI
GND
KEY Data Carry Detect
Data Set Ready
Serial In or Receive Data
Request To Send
Serial Out or Transmit Data
Clear To Send
Data Terminal Ready
Ring Indicate
Ground
Key
IPMB Connector: JIPMB1
This connector is used to connect the IPMB (Intelligent Platform Management
Bus) SMBus.
PIN SIGNAL
1
2
3 SMB Data
GND
SMB Clock
1
1
2
9
10
